Si PIN photodiode
|Photosensitive area||18 × 18 mm|
|Number of elements||1|
|Reverse voltage (max.)||100 V|

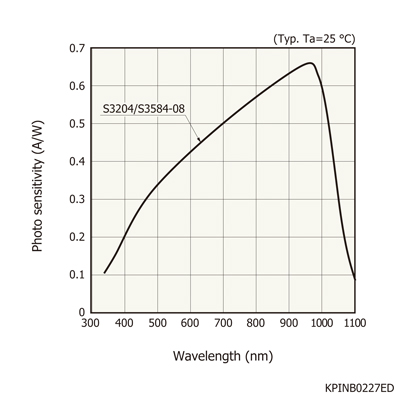

|Spectral response range||340 to 1100 nm|
|Peak sensitivity wavelength (typ.)||960 nm|
|Photosensitivity (typ.)||0.66 A/W|
|Dark current (max.)||20000 pA|
|Cutoff frequency (typ.)||20 MHz|
|Terminal capacitance (typ.)||130 pF|
|Noise equivalent power (typ.)||6.6×10-14 W/Hz1/2|
|Measurement condition||Ta=25 ℃, Typ., unless otherwise noted,
Photosensitivity: λ=λp, Dark current: VR=70 V, Cutoff frequency: VR=70 V, Terminal capacitance: VR=70 V, f=1 MHz, Noise equivalent power: VR=70 V
