D-type socket assembly

E2624-05

For 28mm dia. Head-on PMT

Applicable PMT 28 mm Head-on type
Supply Voltage Polarity +
[Max. Rating] Insulation Voltage (Case-Pins) 2500 V
[Max. Rating] Supply Voltage 2500 V
[Max. Rating] Voltage Divider Current 0.53 mA
Total Voltage Divider Resistance 4.8 MΩ
Notes For R6427, For scintillation counting

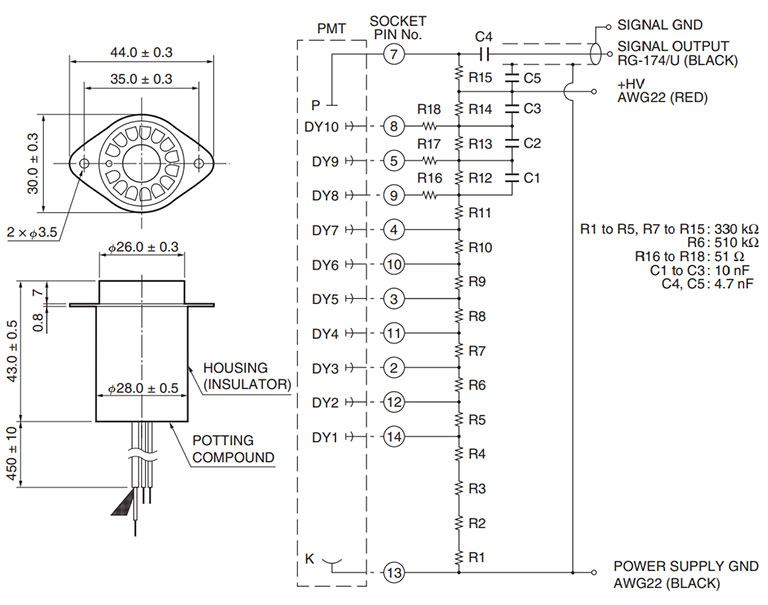

Dimensional outline (Unit: mm)
