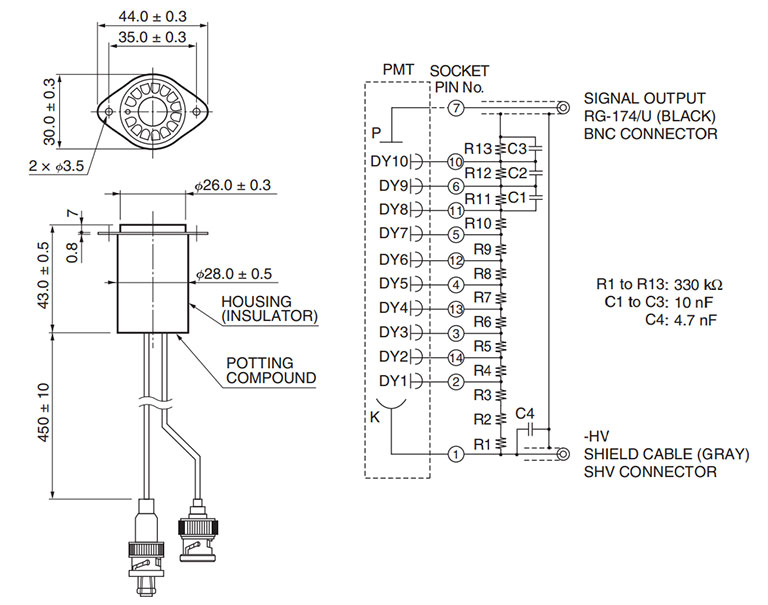

D-type socket assembly
|Applicable PMT||25 mm Head-on type|
|Supply Voltage Polarity||-|
|[Max. Rating] Insulation Voltage (Case-Pins)||1500 V|
|[Max. Rating] Supply Voltage||1250 V|
|[Max. Rating] Voltage Divider Current||0.3 mA|
|Leakage Current in Signal Max.||1.0 x 10-10 A|
|Total Voltage Divider Resistance||4.29 MΩ|
|Max. Linear Output in DC Mode||14 μA|
|Notes||E2924, with connector|
