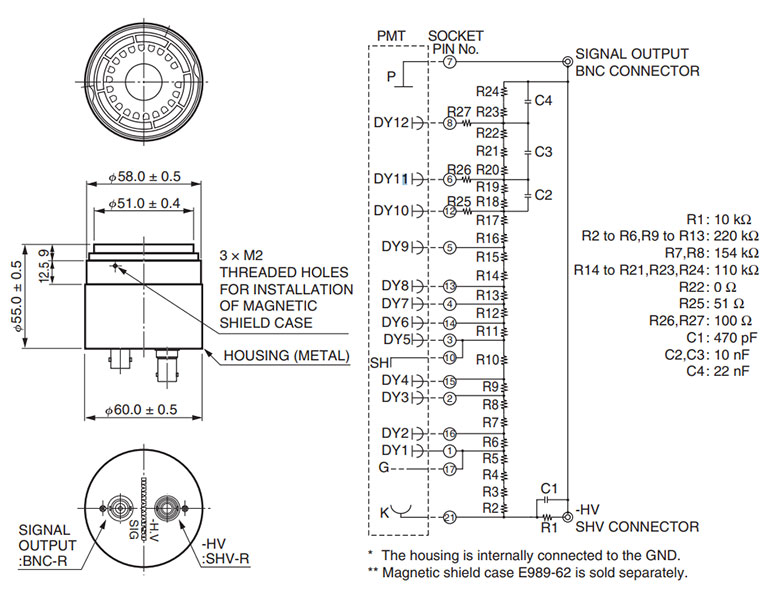

D-type socket assembly
|Applicable PMT||51 mm, 76 mm Head-on type|
|Supply Voltage Polarity||-|
|[Max. Rating] Insulation Voltage (Case-Pins)||2700 V|
|[Max. Rating] Supply Voltage||2700 V|
|[Max. Rating] Voltage Divider Current||0.75 mA|
|Leakage Current in Signal Max.||1.0 x 10-10 A|
|Total Voltage Divider Resistance||3.62 MΩ|
|Max. Linear Output in DC Mode||37 (at 2700 V) μA|
|Notes||with rear panel connector|
