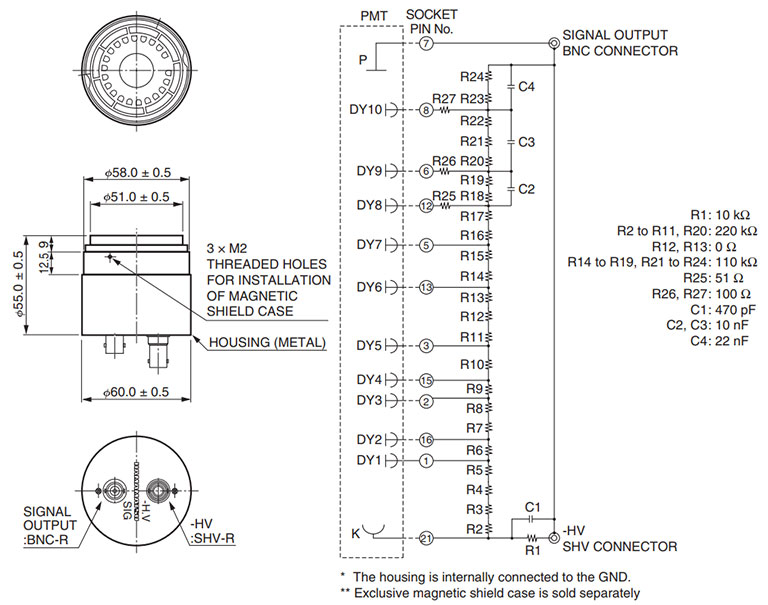

D-type socket assembly
|Applicable PMT||51 mm, 76 mm Head-on type|
|Supply Voltage Polarity||-|
|[Max. Rating] Insulation Voltage (Case-Pins)||2000 V|
|[Max. Rating] Supply Voltage||2000 V|
|[Max. Rating] Voltage Divider Current||0.57 mA|
|Leakage Current in Signal Max.||1.0 x 10-10 A|
|Total Voltage Divider Resistance||3.53 MΩ|
|Max. Linear Output in DC Mode||28 (at 2000 V) μA|
|Notes||For R7724, with rear panel connector|
