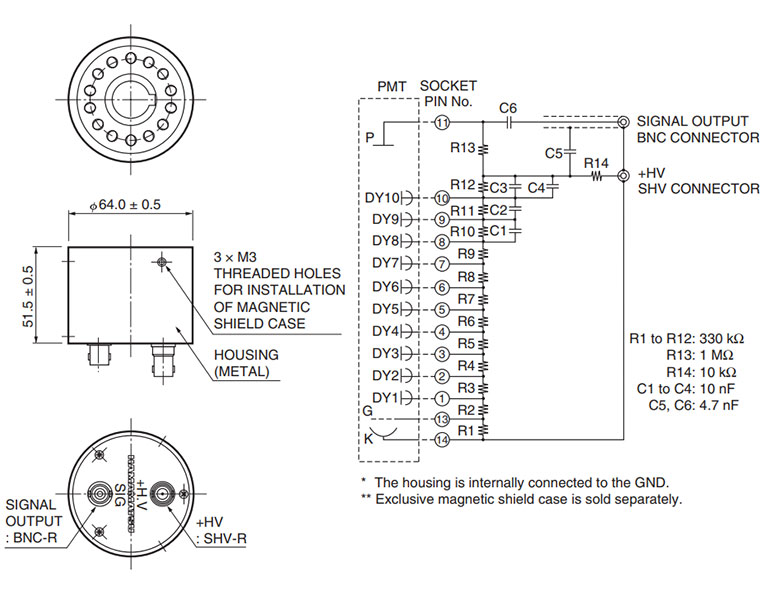

D-type socket assembly
|Applicable PMT||51 mm, 76 mm, 127 mm Head-on type|
|Supply Voltage Polarity||+|
|[Max. Rating] Insulation Voltage (Case-Pins)||2200 V|
|[Max. Rating] Supply Voltage||2000 V|
|[Max. Rating] Voltage Divider Current||0.5 mA|
|Total Voltage Divider Resistance||3.97 MΩ|
|Notes||E1198-23, with rear panel connector For scintillation counting|
