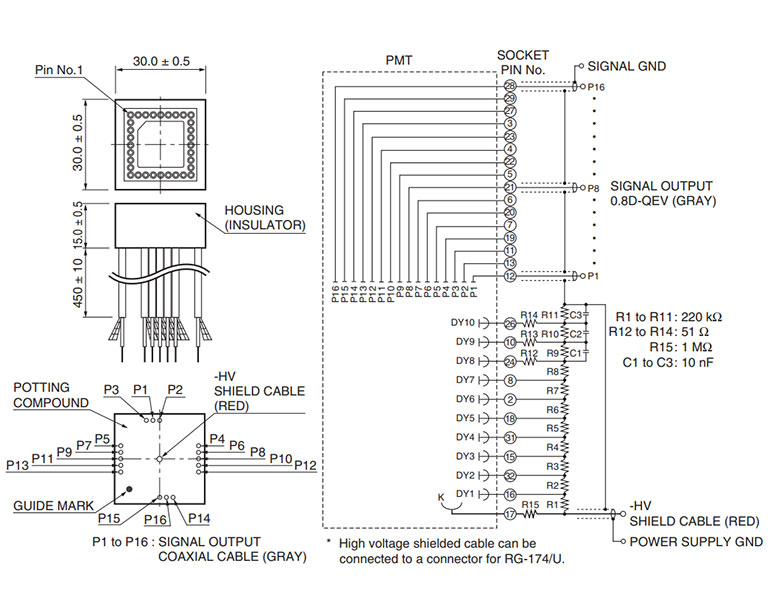

D-type socket assembly
|Applicable PMT||Metal package R5900U-L16 series|
|Supply Voltage Polarity||-|
|[Max. Rating] Insulation Voltage (Case-Pins)||900 V|
|[Max. Rating] Supply Voltage||900 V|
|[Max. Rating] Voltage Divider Current||0.38 mA|
|Leakage Current in Signal Max.||1.0 x 10-10 A|
|Total Voltage Divider Resistance||2.42 MΩ|
|Max. Linear Output in DC Mode||1.16 (at 900 V) μA|
