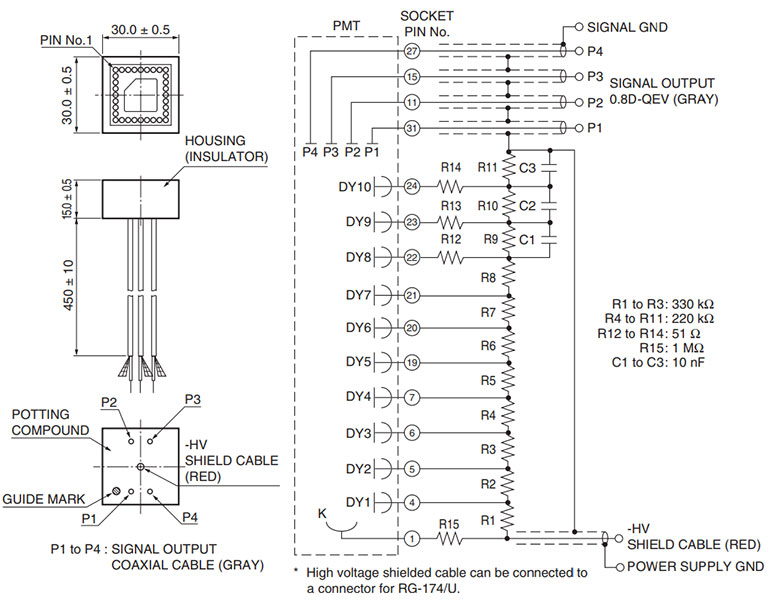

D-type socket assembly
|Applicable PMT||Metal package R7600U-M4 series|
|Supply Voltage Polarity||-|
|[Max. Rating] Insulation Voltage (Case-Pins)||900 V|
|[Max. Rating] Supply Voltage||900 V|
|[Max. Rating] Voltage Divider Current||0.33 mA|
|Leakage Current in Signal Max.||1.0 x 10-10 A|
|Total Voltage Divider Resistance||2.75 MΩ|
|Max. Linear Output in DC Mode||4 μA (at 900 V)|
