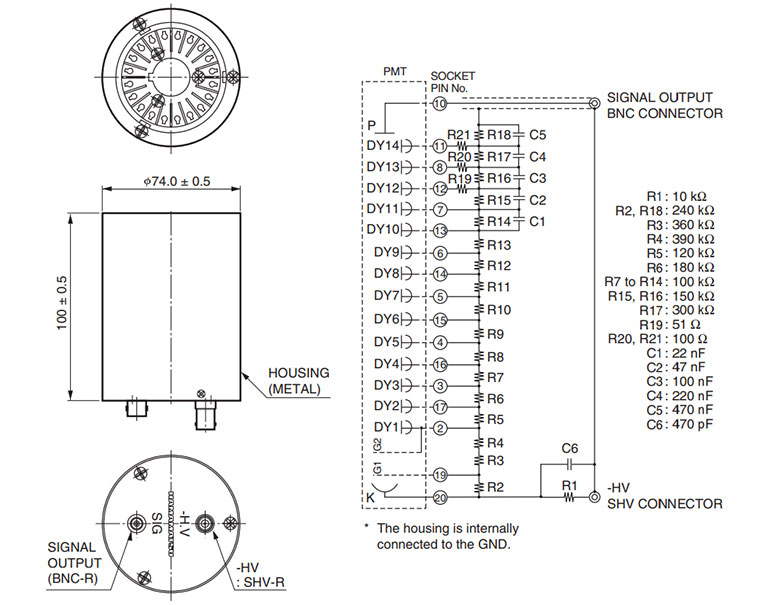

D-type socket assembly
|Applicable PMT||127 mm Head-on type|
|Supply Voltage Polarity||-|
|[Max. Rating] Insulation Voltage (Case-Pins)||3000 V|
|[Max. Rating] Supply Voltage||3000 V|
|[Max. Rating] Voltage Divider Current||1.02 mA|
|Leakage Current in Signal Max.||1.0 x 10-10 A|
|Total Voltage Divider Resistance||2.94 MΩ|
|Max. Linear Output in DC Mode||51 (at 3000 V) μA|
|Notes||For R1250, for R1584, with rear panel connector|
