DA-type socket assembly

C7247-22

The C7246 and C7247 series are DA type socket assemblies designed for 28 mm (1-1/8 inch) diameter side-on and head-on photomultiplier tubes. A voltage-divider circuit and an amplifier are incorporated in the same package. The photomultiplier tube low-level, high-impedance current can be converted into a low-impedance voltage output. Both the C7246 and C7247 series use an active voltage-divider circuit that ensures excellent DC linearity at low power consumption. The C7246 series also has a gain adjustment function that does not affect amplifier frequency bandwidth.

Applicable PMT 28mm Head-on type
[Max. Rating] Supply Voltage for Amplifier +/-18 V
[Max. Rating] Supply Voltage for Divider -1500 V
[Max. Rating] Operating Ambient Temperature 0 ℃ to +40 ℃
[Max. Rating] Storage Temperature -15 ℃ to +60 ℃
Frequency Bandwidth (-3 dB) DC to 5 MHz
Current to Voltage Conversion Factor 0.15 V/uA
Max. Output Signal Voltage 3 V
Max. Output Signal Current 60 mA
Output Impedance 50 Ω
Offset Voltage Max. +/-3 mV
Output Noise Voltage (rms) Typ. 4.5 mV
Supply Voltage for Amplifier +/-12 V to +/-15 V
Supply Current for Amplifier (at +/- 15 V) Max. +140 mA / -50 mA
Recommended Supply Voltage for Divider ‐400 V to -900 V
Divider Circuit Current Typ. 219 μA (at -900 V)
Weight Typ. 170 g

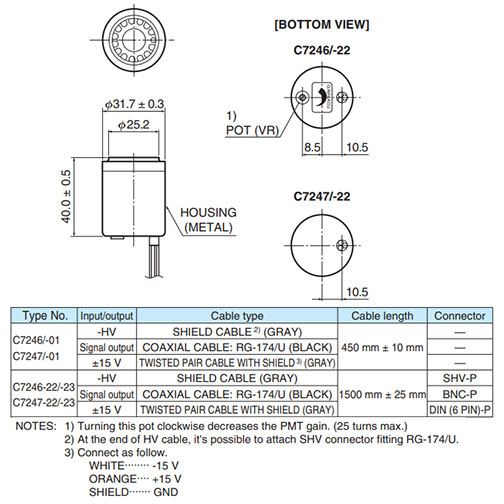

Dimensional outline (Unit: mm)
