Photomultiplier tube

R13089

For scintillation counting, Fast Time Response, 52 mm dia., Head-on type, Bialkali photocathode (Effective area : 46 mm dia./Spectral response : 300 nm to 650 nm)

Type Head-on type
Features Fast response time
Tube Size Dia.51 mm
Photocathode Area Shape Round
Photocathode Area Size Dia.46 mm
Wavelength (Short) 300 nm
Wavelength (Long) 650 nm
Wavelength (Peak) 420 nm
Spectral Response Curve Code 400K
Photocathode Material Bialkali
Window Material Borosilicate glass
Dynode Structure Linear-focused
Dynode Stages 8
[Max. Rating] Anode to Cathode Voltage 1750 V
[Max. Rating] Average Anode Current 0.1 mA
Anode to Cathode Supply Voltage 1500 V
[Cathode] Luminous Sensitivity Min. 70 μA/lm
[Cathode] Luminous Sensitivity Typ. 95 μA/lm
[Cathode] Blue Sensitivity Index (CS 5-58) Typ. 10
[Cathode] Radiant Sensitivity Typ. 80 mA/W
[Anode] Luminous Sensitivity Min. 10 A/lm
[Anode] Luminous Sensitivity Typ. 30 A/lm
[Anode] Radiant Sensitivity Typ. 2.6 x 104 A/W
[Anode] Gain Typ. 3.2 x 105
[Anode] Dark Current (after 30min.) Typ. 10 nA
[Anode] Dark Current (after 30min.) Max. 50 nA
[Time Response] Rise Time Typ. 2 ns
[Time Response] Transit Time Typ. 20 ns
[Time Response] Transit Time Spread Typ. 0.23 ns
[Anode] Pulse Linearity (2% deviation) 30 mA
[Anode] Pulse Linearity (5% deviation) 60 mA

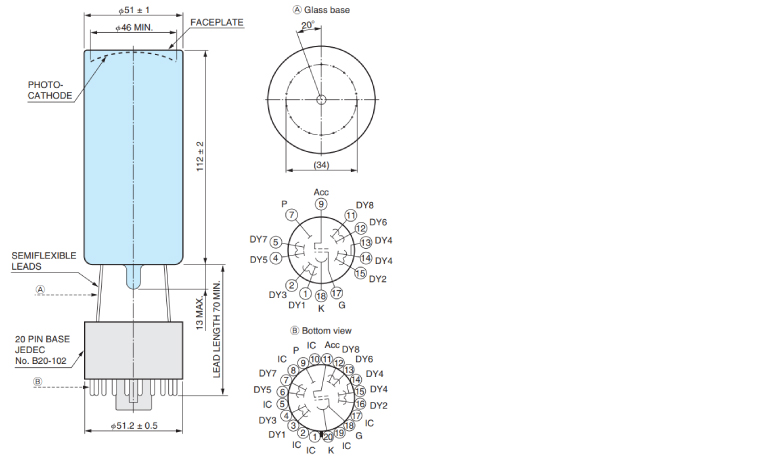

Dimensional outline (Unit: mm)
