|Type||Metal package type|

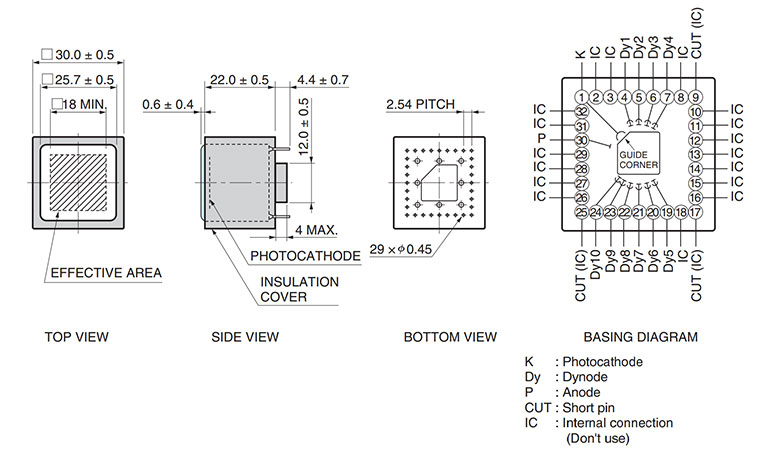

|Tube Size||30 x 30 mm|
|Photocathode Area Shape||Square|
|Photocathode Area Size||18 x 18 mm|
|Wavelength (Short)||300 nm|
|Wavelength (Long)||650 nm|
|Wavelength (Peak)||420 nm|
|Spectral Response Curve Code||400K|
|Window Material||Borosilicate glass|
|Dynode Structure||Metal channel|
|[Max. Rating] Anode to Cathode Voltage||900 V|
|[Max. Rating] Average Anode Current||0.1 mA|
|Anode to Cathode Supply Voltage||800 V|
|[Cathode] Luminous Sensitivity Min.||60 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||80 μA/lm|
|[Cathode] Blue Sensitivity Index (CS 5-58) Typ.||9.5|
|[Cathode] Radiant Sensitivity Typ.||80 mA/W|
|[Anode] Luminous Sensitivity Min.||40 A/lm|
|[Anode] Luminous Sensitivity Typ.||160 A/lm|
|[Anode] Radiant Sensitivity Typ.||1.4 x 105 A/W|
|[Anode] Gain Typ.||2.0 x 106|
|[Anode] Dark Current (after 30min.) Typ.||2 nA|
|[Anode] Dark Current (after 30min.) Max.||20 nA|
|[Time Response] Rise Time Typ.||1.6 ns|
|[Time Response] Transit Time Typ.||9.6 ns|
|[Time Response] Transit Time Spread Typ.||0.35 ns|
|[Anode] Pulse Linearity (2% deviation)||30 mA|
|[Anode] Pulse Linearity (5% deviation)||60 mA|
