Photomultiplier tube


28mm dia., Side-on type, Low noise bialkali photocathode (Effective area : 10 x 24 mm/Spectral response : 185 to 710 nm) Photon counting type of R5983


Type Side-on type

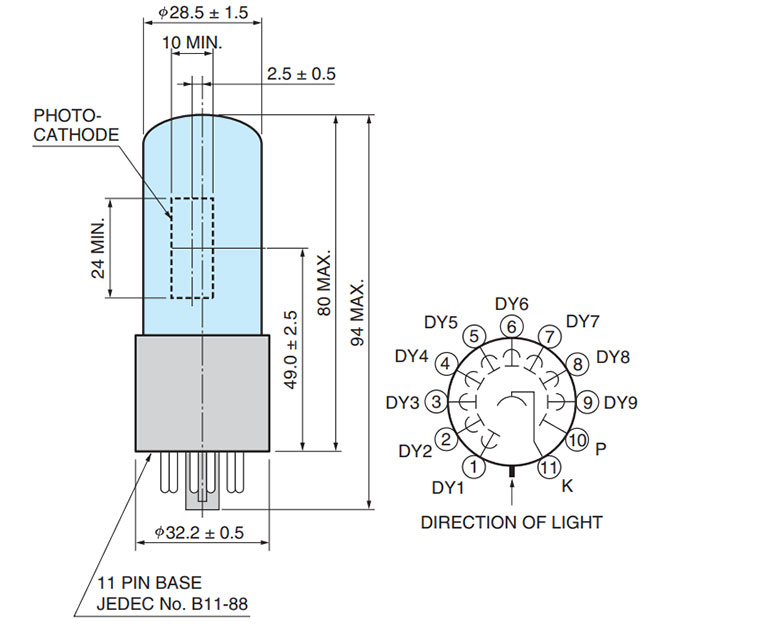

Tube Size Dia.28 mm
Photocathode Area Shape Square
Photocathode Area Size 10 x 24 mm
Wavelength (Short) 185 nm
Wavelength (Long) 710 nm
Wavelength (Peak) 410 nm
Spectral Response Curve Code 456U
Photocathode Material Low noise bialkali
Window Material UV glass
Dynode Structure Circular-cage
Dynode Stages 9
[Max. Rating] Anode to Cathode Voltage 1250 V
[Max. Rating] Average Anode Current 0.1 mA
Anode to Cathode Supply Voltage 1000 V
[Cathode] Luminous Sensitivity Min. 60 μA/lm
[Cathode] Luminous Sensitivity Typ. 100 μA/lm
[Cathode] Blue Sensitivity Index (CS 5-58) Typ. 8
[Cathode] Radiant Sensitivity Typ. 70 mA/W
[Anode] Luminous Sensitivity Min. 500 A/lm
[Anode] Luminous Sensitivity Typ. 1000 A/lm
[Anode] Radiant Sensitivity Typ. 7.0 x 105 A/W
[Anode] Gain Typ. 1.0 x 107
[Time Response] Rise Time Typ. 1.2 ns
[Time Response] Transit Time Typ. 22 ns
Notes Anode dark count (Typ.) : 10 (s-1) Anode dark count (Max.) : 50 (s-1)
