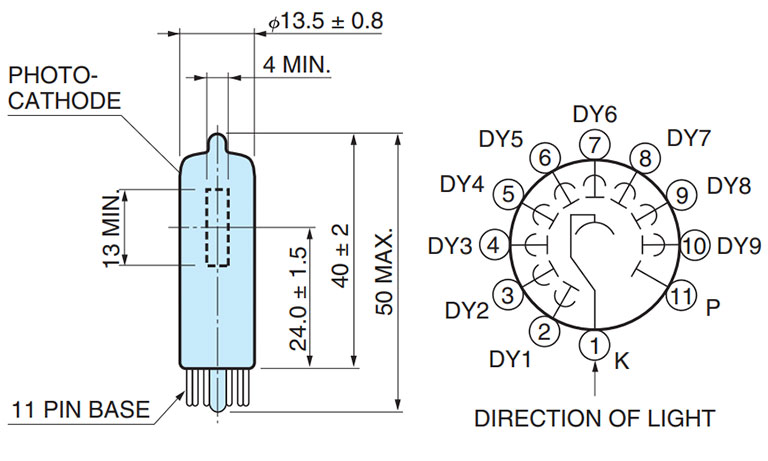

|Tube Size||Dia.13 mm|
|Photocathode Area Shape||Square|
|Photocathode Area Size||4 x 13 mm|
|Wavelength (Short)||185 nm|
|Wavelength (Long)||680 nm|
|Wavelength (Peak)||400 nm|
|Spectral Response Curve Code||456U|
|Photocathode Material||Low noise bialkali|
|Window Material||UV glass|
|[Max. Rating] Anode to Cathode Voltage||1250 V|
|[Max. Rating] Average Anode Current||0.01 mA|
|Anode to Cathode Supply Voltage||1000 V|
|[Cathode] Luminous Sensitivity Min.||30 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||70 μA/lm|
|[Cathode] Blue Sensitivity Index (CS 5-58) Typ.||6.5|
|[Cathode] Radiant Sensitivity Typ.||65 mA/W|
|[Anode] Luminous Sensitivity Min.||100 A/lm|
|[Anode] Luminous Sensitivity Typ.||400 A/lm|
|[Anode] Radiant Sensitivity Typ.||3.7 x 105 A/W|
|[Anode] Gain Typ.||5.7 x 106|
|[Time Response] Rise Time Typ.||1.4 ns|
|[Time Response] Transit Time Typ.||15 ns|
