Irradiation unit A14132 series

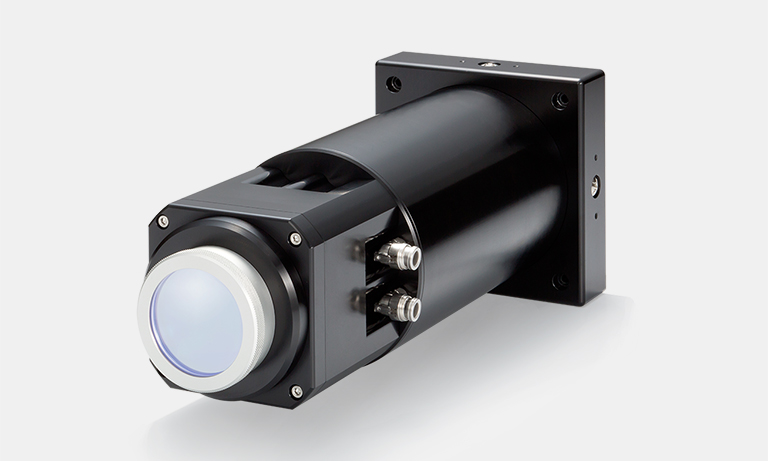

The A14132 series is an irradiation unit used by attaching to DDL the L11585 series and L14133 series. The A14132 series can form a uniform focused beam pattern suitable for a wide area of heat treatment processes such as laser hardening. A variety of focused beam size and laser irradiation area can be adjusted by combining the aspect ratio conversion unit and the laser focusing unit.



Irradiation unit A14132 data sheet

l_temp_a14132

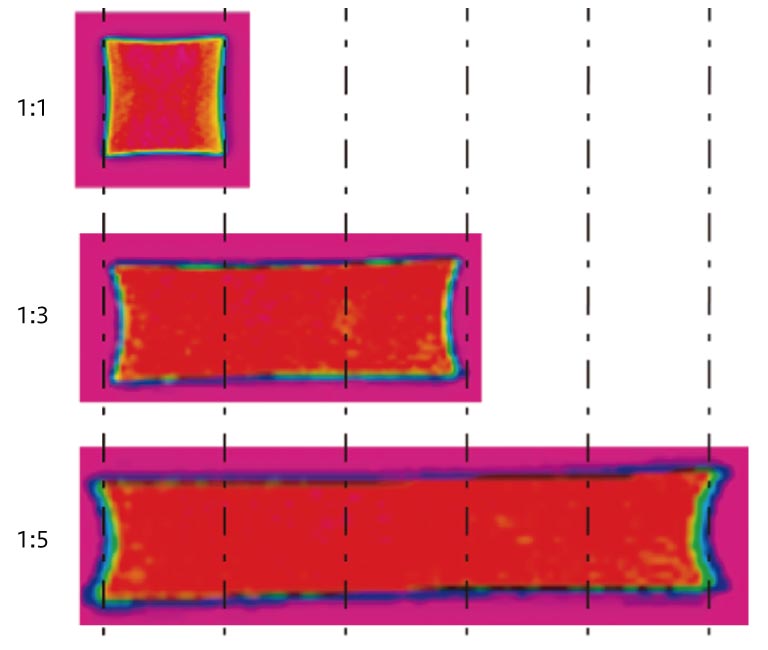

Focused beam pattern and profiles(example)

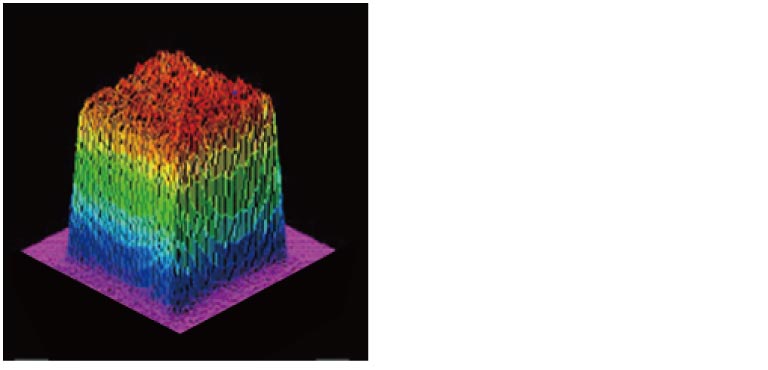

3D profile(example)

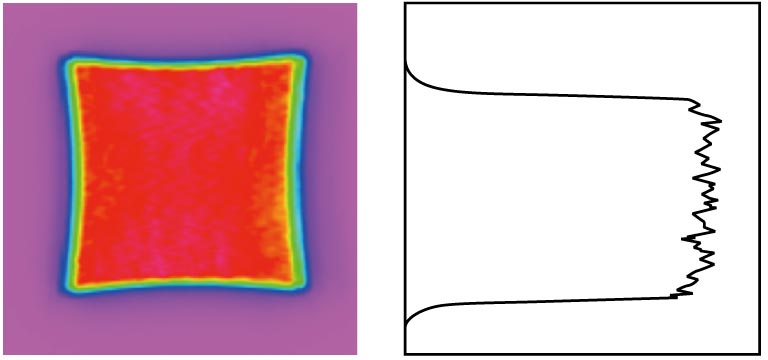

Focused beam pattern(example)

DDL coaxial unit A15185 series

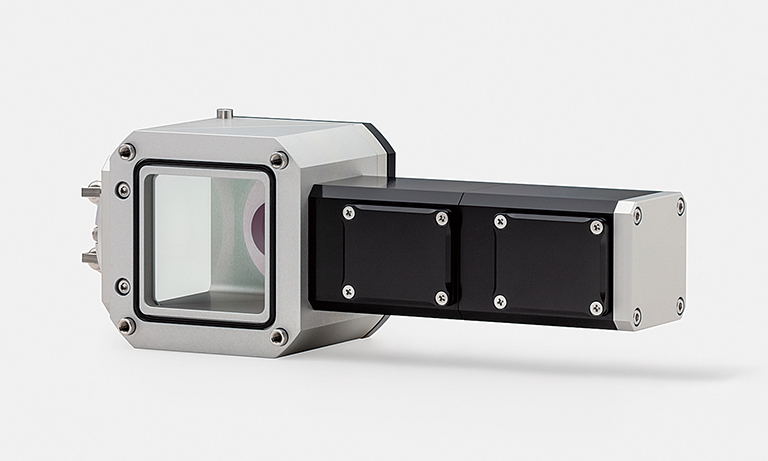

The A15185 series is a coaxial unit designed to attach to the DDL with the A14132 series irradiation unit. A thermometer and CCD camera are mountable on the A15185-111 DDL coaxial unit for making coaxial temperature measurements and coaxial observations.

DDL coaxial unit A15185 series data sheet

l_thumb_a15185-111

Coaxial observation image taken with CCD camera

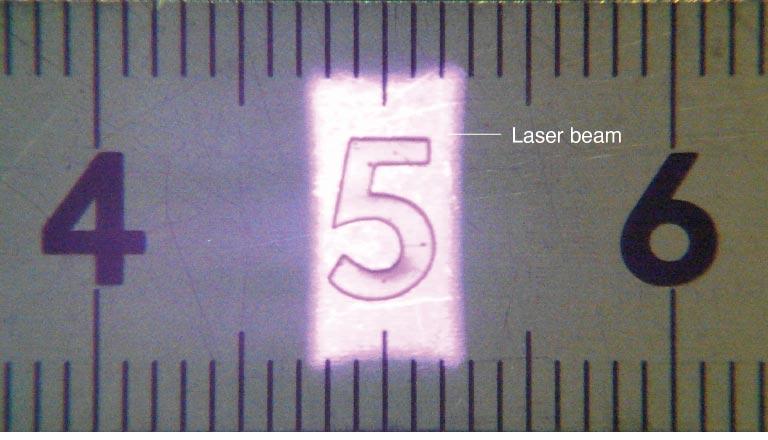

Laser was irradiated onto a ruler placed at the focus point (processing point)
