Long wavelength type APD

-High sensitivity
-High gain
-Low terminal capacitance

Type Near infrared type
Photosensitive area φ0.2 mm
Package Metal
Package Category TO-5
Peak sensitivity wavelength (typ.) 940 nm
Spectral response range 400 to 1100 nm
Dark current (max.) 2 nA
Cutoff frequency (typ.) 280 MHz
Terminal capacitance (typ.) 0.2 pF
Breakdown voltage (typ.) 500 V
Temperature coefficient of breakdown voltage (typ.) 3.5 V/℃
Gain (typ.) 100
Measurement condition Typ. Ta=25 ℃, unless otherwise noted, M=100

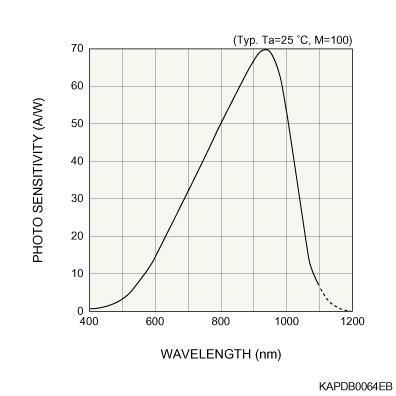

Spectral response

Dimensional outline (unit: mm)
