|Type||Near infrared type|
|Photosensitive area||φ1.5 mm|
|Peak sensitivity wavelength (typ.)||940 nm|
|Spectral response range||400 to 1100 nm|

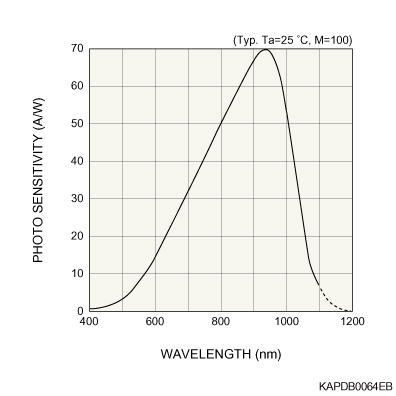

|Photosensitivity (typ.)||70 A/W|
|Dark current (max.)||100 nA|
|Cutoff frequency (typ.)||220 MHz|
|Terminal capacitance (typ.)||2.5 pF|
|Breakdown voltage (typ.)||500 V|
|Temperature coefficient of breakdown voltage (typ.)||3.5 V/℃|
|Measurement condition||Typ. Ta=25 ℃, unless otherwise noted,
Photosensitivity: λ=940 nm, M=100
