D-type socket assembly

E10679-51

For Metal Package PMT R9880U, High-speed waveform improvement type of E10679-50.

Applicable PMT Metal Package PMT R9880U
Ground Electrode Anode
Supply Voltage Polarity -
[Max. Rating] Insulation Voltage (Case-Pins) 1100 V
[Max. Rating] Supply Voltage 1100 V
[Max. Rating] Voltage Divider Current 0.32 mA
Leakage Current in Signal Max. 1.0 x 10-10 A
Total Voltage Divider Resistance 3.46 MΩ
Max. Linear Output in DC Mode 16 μA (at 1100 V)
Signal Output DC / Pulse
Notes Pin output (for on-board)

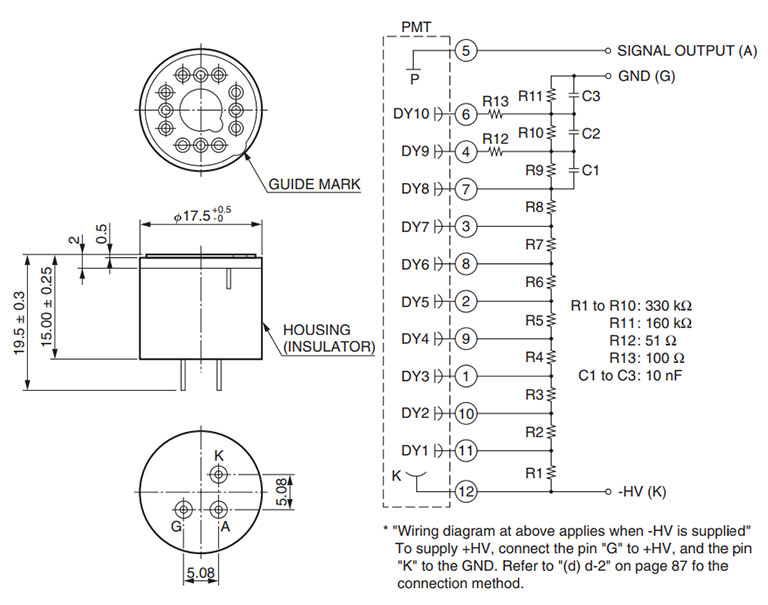

Dimensional outline (Unit: mm)
