NanoZoomer S60v2MD Slide scanner system

C16600-21MDEU

The NanoZoomer S60v2MD for EU is an IVDR, UKCA and IvDO compliant model ideal for use in hospitals and clinical laboratories.



The system allows to make whole slide imaging for in vitro diagnostic use.



It can scan both standard and mega-sized slides in one batch.

Features

  • Scanning speed 20× mode (15 mm × 15 mm): approx. 60 s
    Scanning speed 40× mode (15 mm × 15 mm): approx. 75 s

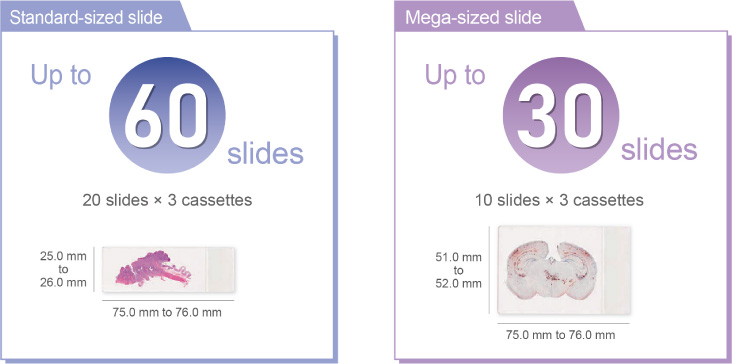

  • Max. 60 standard-sized slides (25.0 mm to 26.0 mm × 75.0 mm to 76.0 mm)
    Max. 30 mega-sized slides (51.0 mm to 52.0 mm × 75.0 mm to 76.0 mm)

Special sites

The Whole Slide Imaging special site is the feature section for whole slide imaging fit to research and pathology.

Whole Slide Imaging

Specifications

Product name NanoZoomer S60v2MD Slide scanner system
Product number C16600-21MDEU
Scanning speed*1 : 20× mode (15 mm × 15 mm) Approx. 60 s
Scanning speed*1 : 40× mode (15 mm × 15 mm) Approx. 75 s
Objective lens 20× NA 0.75
User can select 20× or 40× mode at start of scanning.
Compatible glass slides

25.0 mm to 26.0 mm × 75.0 mm to 76.0 mm (Thickness 0.9 mm to 1.2 mm)

51.0 mm to 52.0 mm × 75.0 mm to 76.0 mm (Thickness 0.9 mm to 1.2 mm)

Slide loader (Standard-sized slide)*2 Up to 60 slides (20 slides × 3 cassettes)*3
Slide loader (Mega-sized slide)*2 Up to 30 slides (10 slides × 3 cassettes)*3
Scanning resolution: 20× mode Approx. 0.46 μm/pixel
Scanning resolution: 40× mode Approx. 0.23 μm/pixel
Focusing method Pre-focus map
Z-stack feature Included
Image compression JPEG compression
Readable barcodes: 1D Barcodes Code 39, Code 128, Interleaved 2 of 5, Codabar, EAN-8 and UPC-E
Readable barcodes: 2D Barcodes

DataMatrix (ECC200)

QR code (QR Code Model-1, QR Code Model-2)

Power supply AC 100 V to AC 240 V
Power consumption (Scanner only) Approx. 120 VA

*1 When it scans an area of 15 mm × 15 mm square with 5 focus points.

*2 Standard-sized is a single slide, mega-sized is a double-width, large slide.

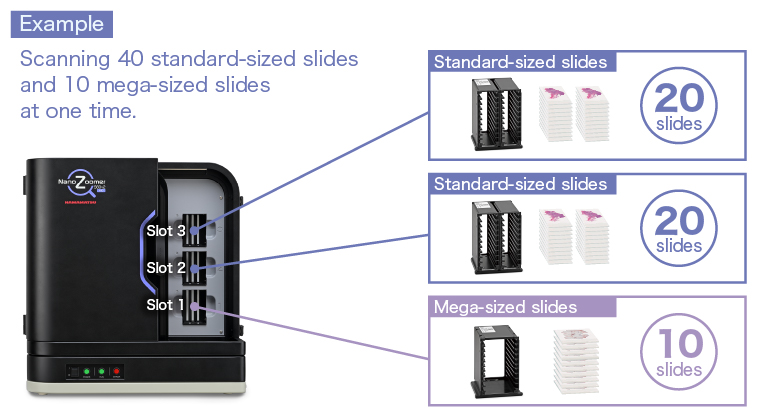

*3 Up to 3 cassettes can be set with combination of standard and mega sized slides.

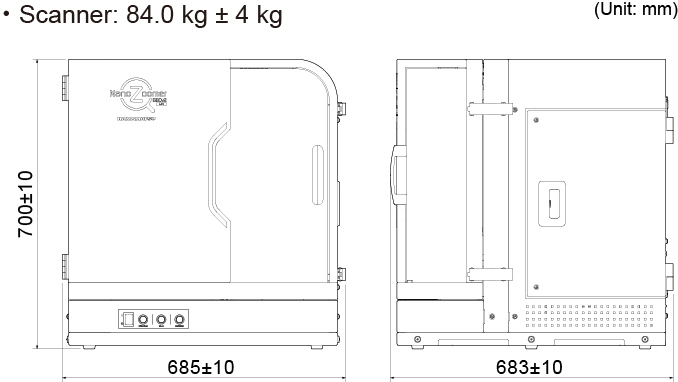

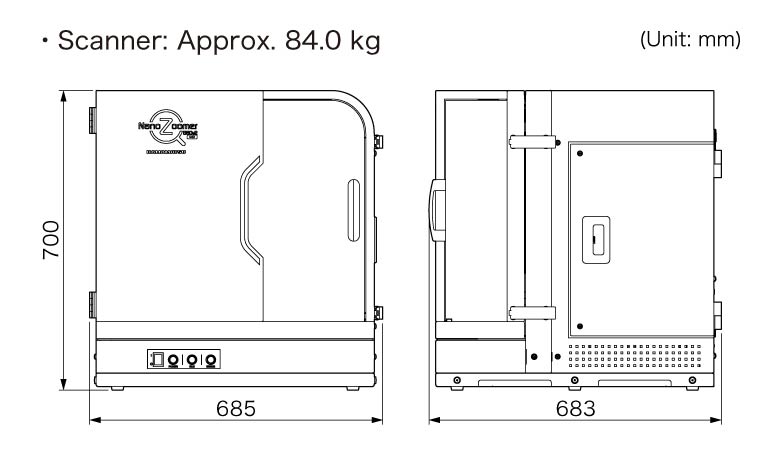

Dimensions

Important Notice

In the USA, C13220-01MD NanoZoomer S360MD Slide scanner system can be used for primary diagnosis in the following validated FDA-cleared displays:

・JVC JD-C240BN01A      *The display is FDA cleared for use with the NanoZoomer S360MD.

・BARCO MDPC-8127      *The display itself is FDA cleared.



In Europe, following products are regulatory compliant for IVDR (EU), UKCA (UK) and IvDO (CH) for in vitro diagnostic use:

C13220-21MDEU NanoZoomer S360MD Slide scanner system, C16600-21MDEU NanoZoomer S60v2MD Slide scanner system and C16300-21MDEU NanoZoomer S20MD Slide scanner system.



In China, following products are registered for in vitro diagnostic use:

C13220-01 NanoZoomer S360, C13239-01 NanoZoomer S210, C13210-01  NanoZoomer S60 and C13140-01 NanoZoomer-SQ.



In Canada, C13220-31 NanoZoomer S360 has Medical Device License.



In Taiwan, C13220-01 NanoZoomer S360 is registered as medical device.



In Korea, C13220-61MDK NanoZoomer S360MD Slide scanner system is registered as in vitro diagnostic medical device.



In  Japan, C13220-11MDJ NanoZoomer S360MD Slide scanner system and C16300-11MDJ NanoZoomer S20MD Slide scanner system are approved as medical devices.



For other countries, NanoZoomer series are for research use only and not permitted to use for clinical diagnostic purpose.
