NanoZoomer S360MD Slide scanner system

C13220-21MDEU

The NanoZoomer S360MD for EU is the high-throughput, IVDR compliant model, ideal for use in hospitals and clinical laboratories.



The system allows to make whole slide imaging for in vitro diagnostic use.

Features

  • Scanning speed 20× mode (15 mm × 15 mm): approx. 30 s
  • Scanning speed 40× mode (15 mm × 15 mm): approx. 30 s
  • Max. 360 slides

Special sites

The Whole Slide Imaging special site is the feature section for whole slide imaging fit to research and pathology.

Whole Slide Imaging

Specifications

Product name NanoZoomer S360MD Slide scanner system
Product number C13220-21MDEU
Scanning speed: 20× mode (15 mm × 15 mm) Approx. 30 s
Scanning speed: 40× mode (15 mm × 15 mm) Approx. 30 s
Throughput: 20× mode (15 mm × 15 mm) 82 slides/h *1
Throughput: 40× mode (15 mm × 15 mm) 82 slides/h *1
Objective lens 20× NA 0.75
User can select 20× or 40× mode at start of scanning.
Compatible glass slides 26 mm × 76 mm
(Thickness 0.9 mm to 1.2 mm)
Slide loader (standard size slide) 360 slides (30 slides × 12 cassettes)
Scanning resolution: 20× mode Approx. 0.46 μm/pixel
Scanning resolution: 40× mode Approx. 0.23 μm/pixel
Focusing method Pre-focus map
Z-stack feature Included
Image compression JPEG compression
Readable barcodes: 1D Barcodes Code 39, Code 128, Interleaved 2 of 5, Codabar, EAN-8 and UPC-E
Readable barcodes: 2D Barcodes

DataMatrix (ECC200)

QR code(QR Code Model-1, QR Code Model-2)

Power supply AC 100 V to AC 240 V
Power consumption (scanner only) Approx. 200 VA

*1 For the case of 5 focus points

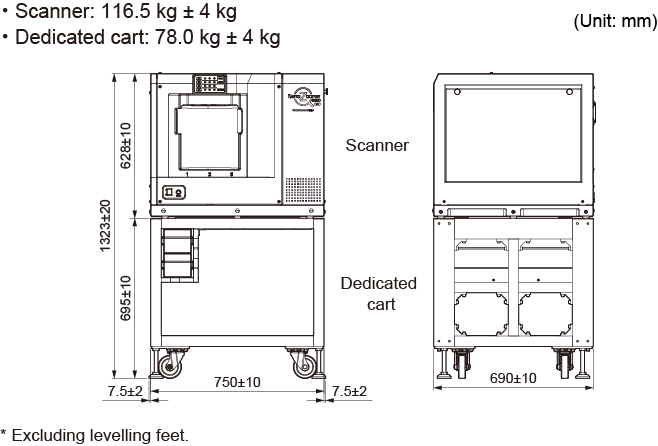

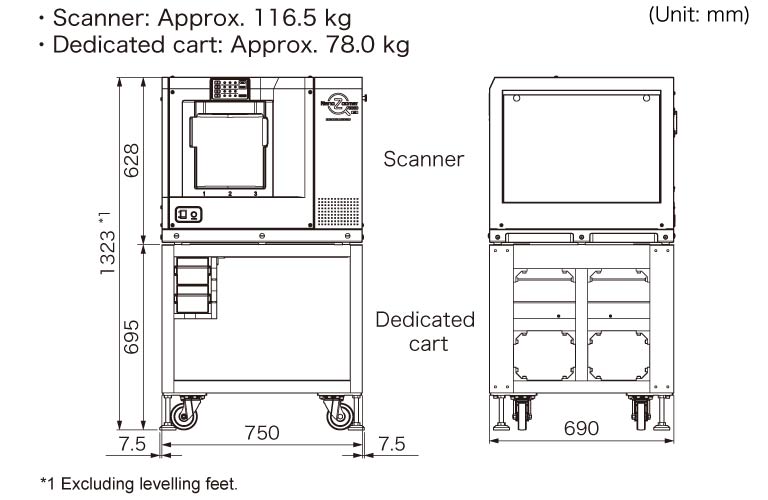

Dimensions

Important Notice

In the USA, C13220-01MD NanoZoomer S360MD Slide scanner system is intended for in vitro diagnostic use.



In Europe, following products are regulatory compliant for IVDR(EU), UKCA(UK) and IvDO(CH) for in vitro diagnostic use:

C13220-21MDEU NanoZoomer S360MD Slide scanner system, C16600-21MDEU NanoZoomer S60v2MD Slide scanner system and C16300-21MDEU NanoZoomer S20MD Slide scanner system.



In China, following products are registered for in vitro diagnostic use:

C13220-01 NanoZoomer S360, C13239-01 NanoZoomer S210, C13210-01  NanoZoomer S60 and C13140-01 NanoZoomer-SQ.



In Canada, C13220-31 NanoZoomer S360 has Medical Device License.



In Taiwan, C13220-01 NanoZoomer S360 is registered as medical device.



In Korea, C13220-61MDK NanoZoomer S360MD Slide scanner system is registered as in vitro diagnostic medical device.



In Japan and other countries, NanoZoomer series are for research use only and not permitted to use for clinical diagnostic purposes.
