NZConnectMD Serve Web slide server software
U16179-21MDEU
Web-based image management software for the viewing of whole slide images and integrating with 3rd party systems.
Connecting you with NanoZoomer MD

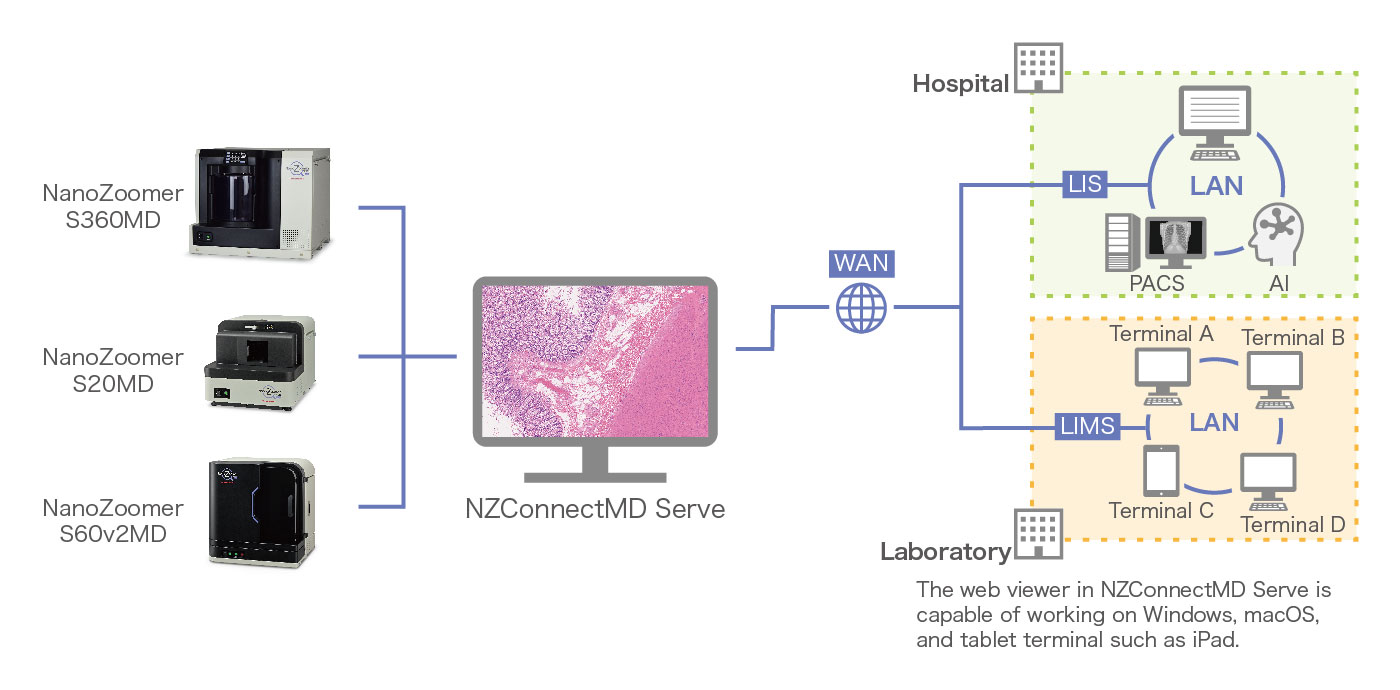

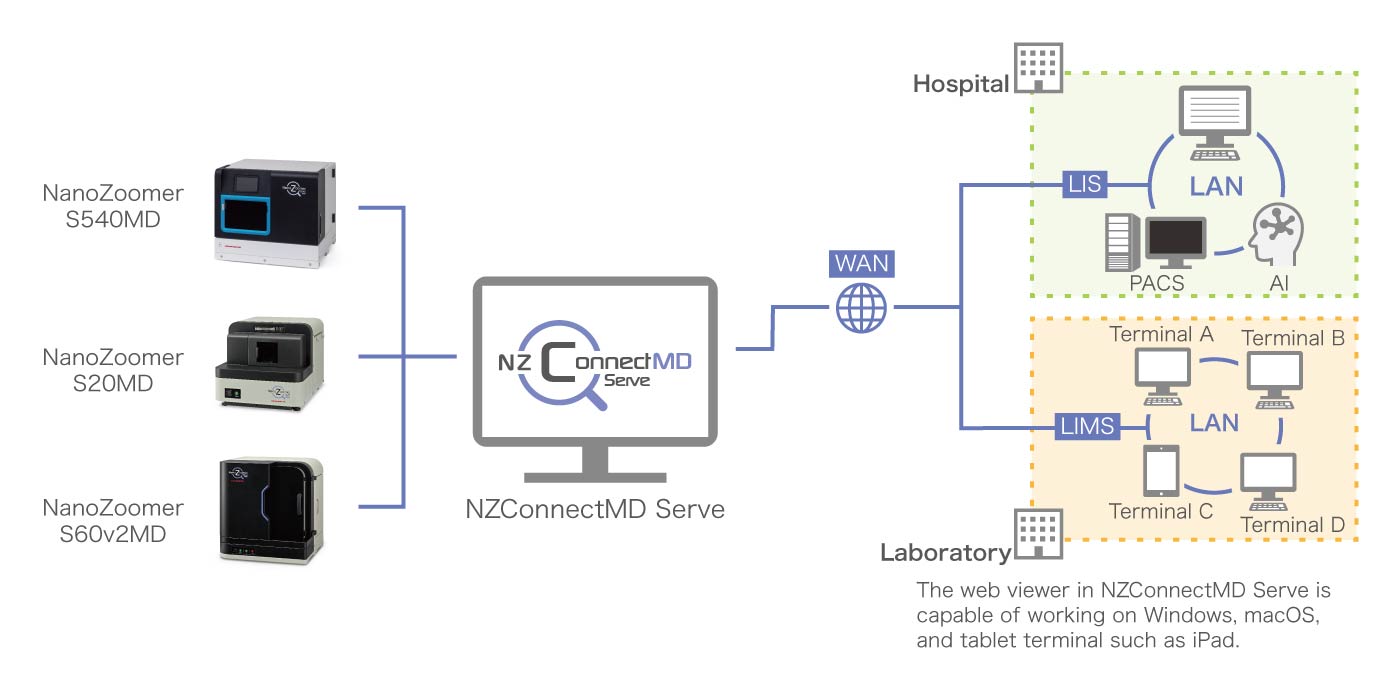

The NZConnectMD Serve offers network distribution of whole slide image (WSI) scanned by all NanoZoomer MD series scanners.
It facilitates web-based sharing of WSI through networks and provides integration with 3rd party systems.
Intuitive User Interface

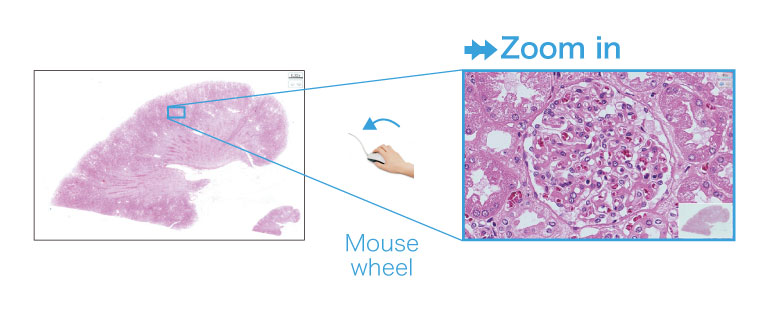

Intuitive viewing
With a simple mouse operation, you can navigate the WSI taken by any MD series NanoZoomer, on a monitor. By moving the mouse wheel, it is possible to move the WSI in any direction, focus the image, and alter the viewing magnification, with a sense to operate like that of a microscope.

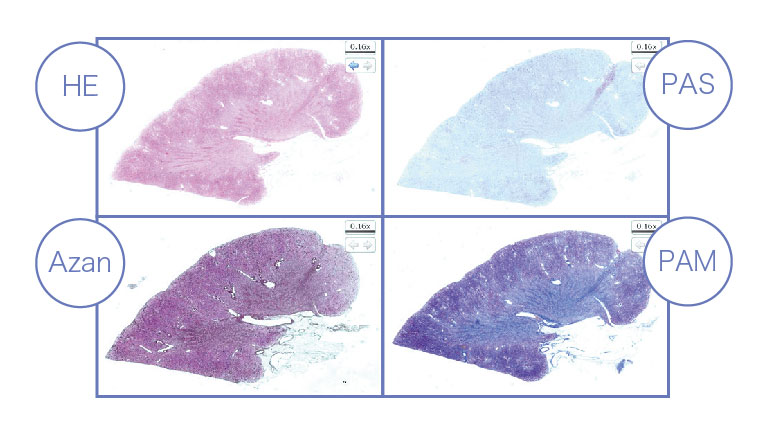

Multiview
It can provide multiple viewing with high-speed and intuitive operation.
Human kidney tissue slice Courtesy of Koichi Kawamura Ph.D., Associate Professor Department of Cellular and Organ Pathology, Akita University Graduate School of Medicine.

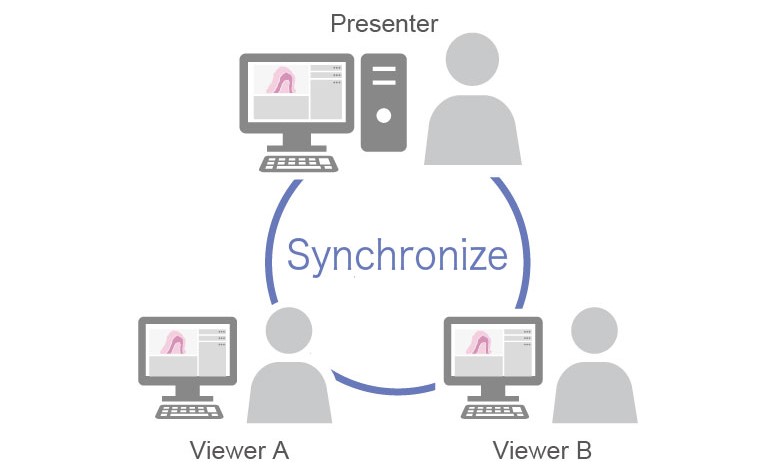

Synchronized viewing
For use in a conference, the content of the presenter's device can be synchronized and displayed on all connected devices. Any participating device can be a presenter, so all participants can exchange work with each other.
Simple Data Management
ID/password-based authentication

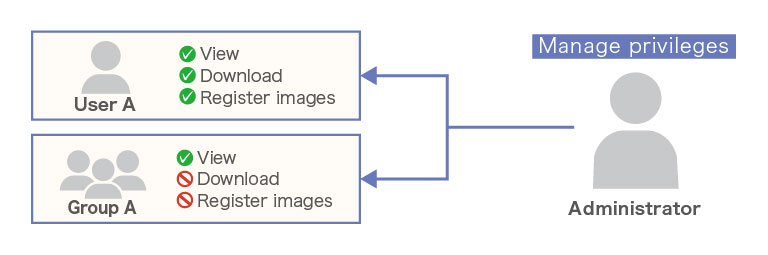

The NZConnectMD Serve uses ID and password-based authentication. You can manage user privileges through comprehensive role based access control, allowing security control over user groups or individual users.

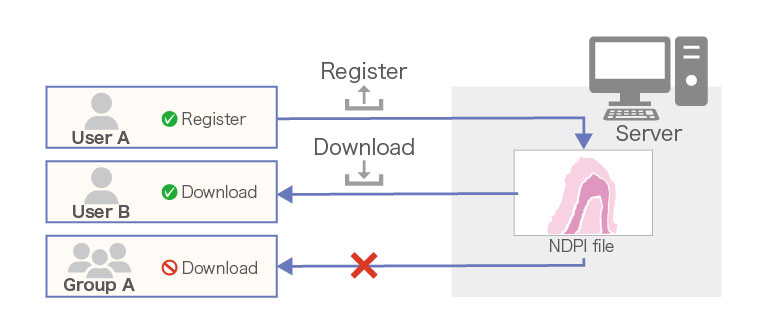

Access privileges for each slide or folder
You can assign user access privileges to collections or individual WSI slides.

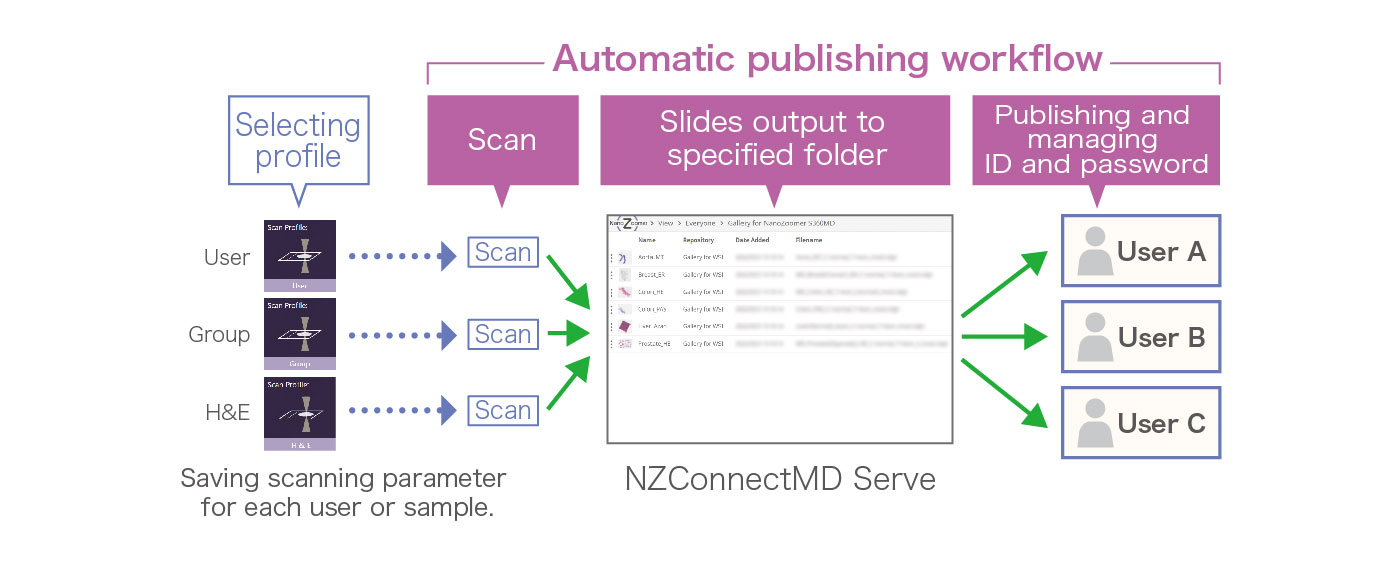

Automatic publishing
The NZConnectMD Serve has a feature that automatically publishes received slides to specific folders. The folders can be specified by a user with access privileges.
LDAP support
The NZConnectMD Serve supports LDAP (Active Directory) integration for user authentication management. It makes it easier to manage clients.
Specifications
System requirements
| Product name | NZConnectMD Serve Web slide server software |
|---|---|
| Product number | U16179-21MDEU |
| Type of computer | PC-AT compatibles |
| OS | Windows Server 2022, Windows Server 2019, Windows Server 2016 |
| CPU | Xeon 2.8 GHz or more |
| Memory | 16 GB or more |
| Available HDD space | 50 GB or more |
| Drive | DVD-ROM Drive |
| Screen resolution | 1024 × 768 or higher |
| Database management system | Microsoft SQL Server 2016 Express with Advanced Services / Standard (64bit) Microsoft SQL Server 2017 Express with Advanced Services / Standard (64bit) Microsoft SQL Server 2019 Express with Advanced Services / Standard (64bit) |
Operating environment
| Compatible devices | Compatible OS | Supported browser |
|---|---|---|
| Windows PC | Windows 10 (64 bit) Including Touch panel | Edge, Google Chrome, Firefox |
| Windows 11 (64 bit) | ||
| Windows server 2022 | Edge | |
| Windows server 2019 | ||
| Mac | macOS X Ver. 13 Ventura | Safari |
| iPad | iPadOS Ver.15 | Safari Ver. 15 |
| iPadOS Ver.16 | Safari Ver. 16 |
Special sites
The Whole Slide Imaging special site is the feature section for whole slide imaging fit to research and pathology.
