NanoZoomer S540 Digital slide scanner
C17400-01
The NanoZoomer® S540 has featuring compatibility with staining racks, fast slide scanning, exceptional image quality, and an intuitive touchscreen interface, this high-capacity scanner to handle your needs.
NanoZoomer is a registered trademark of Hamamatsu Photonics K.K. (EU, Japan, UK, USA).
Features

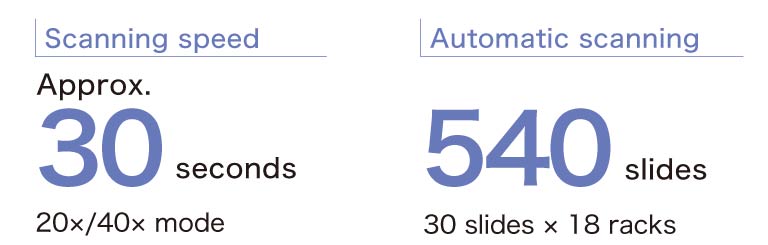

High-speed scanning
- Scanning speed (20× mode) : Approx. 30 s/slide
- Scanning speed (40× mode) : Approx. 30 s/slide
- Slide rack compatibility (Rack for 30 slides ×18) : 540 slides
- Slide rack compatibility (Rack for 20 slides ×18) : 360 slides
* When it scans an area of 15 mm × 15 mm square with 5 focus points.

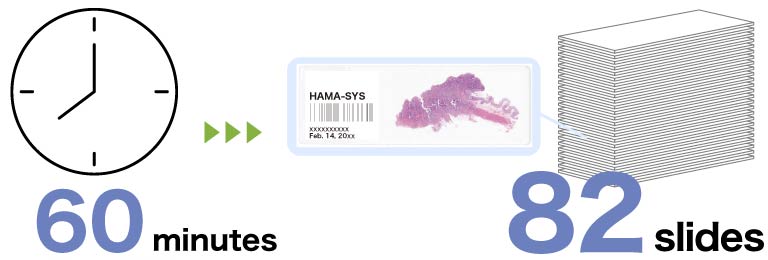

High throughput
In addition to its outstanding scanning speed, improvements in slide handling have enabled high throughput.
* When it scans an area of 15 mm × 15 mm square with 5 focus points.

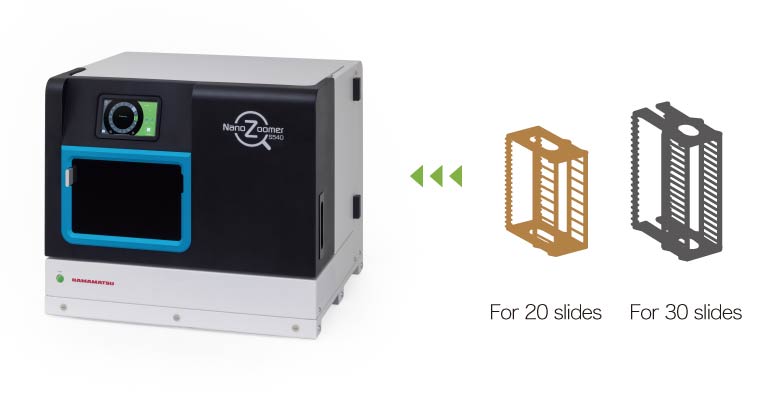

Rack compatibility
The NanoZoomer S540 can handle both racks for 30 slides and 20 slides simultaneously. Before installation, users can select a rack configuration with either a 30-slide or 20-slide capacity, designed to fit into 18 slots.

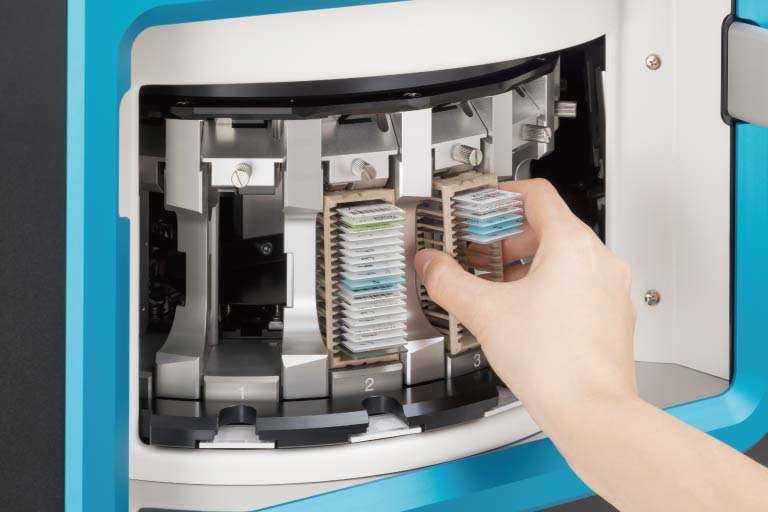

Continuous loading
Insert and exchange racks without interrupting scanning. Rack priority can be set either directly in the touchscreen interface or using the operation software (NZAcquire or NZConnect Scan).

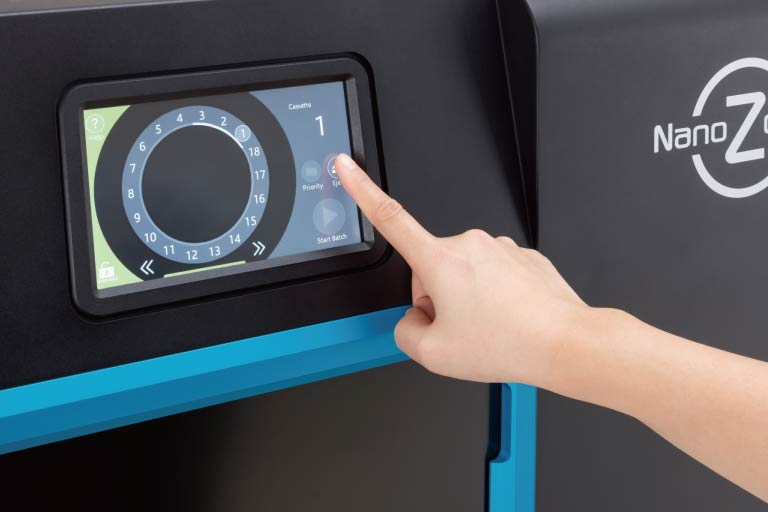

Touchscreen interface
The touchscreen allows users to operate and monitor key scanning functions without accessing the operation software, including:
- Start/Stop scanning and remove racks
- Set scan priority for racks
- Display scan status
Special sites
The Whole Slide Imaging special site is the feature section for whole slide imaging fit to research and pathology.
Specifications
| Product name | NanoZoomer S540 Digital slide scanner | |
|---|---|---|
| Product number | C17400-01 | |
| Scanning speed *1 (20× mode/40× mode） | Approx. 30 s/slide | |
| Thtoughput *1 (20× mode/40× mode） | More than 82 slide/h | |
| Objective lens | 20× NA 0.75 User can select 20× or 40× mode at start of scanning |
|
| Compatible glass slides | 25.0 mm to 26.0 mm × 75.0 mm to 76.0 mm (Thickness 0.9 mm to 1.2 mm) |
|
| Slide loader | Rack for 20 slides | Max. 360 slides (20 slides × 18 racks) |
| Rack for 30 slides *2 | Max. 540 slides (30 slides × 18 racks) | |
| Scanning resolution | 20× mode | Approx. 0.46 μm/pixel |
| 40× mode | Approx. 0.23 μm/pixel | |
| Focusing method | Pre-Focus map | |
| Z-stack feature | Included | |
| Image compression | JPEG compression | |
| Readable barcodes | 1D Barcodes | Code 39, Code 128, Interleaved 2 of 5, Codabar, EAN-8 and UPC-E |
| 2D Barcodes | DataMatrix (ECC200) QR CodeⓇ (QR Code Model-2) |
|
| Power supply | AC 100 V to AC 240 V | |
| Power consumption (Scanner only) | Approx. 200 VA | |
*1 When scanning, it scans an area of 15 mm × 15 mm square with 5 focus points.
*2 This configuration is provided with the rack for 20 slides.

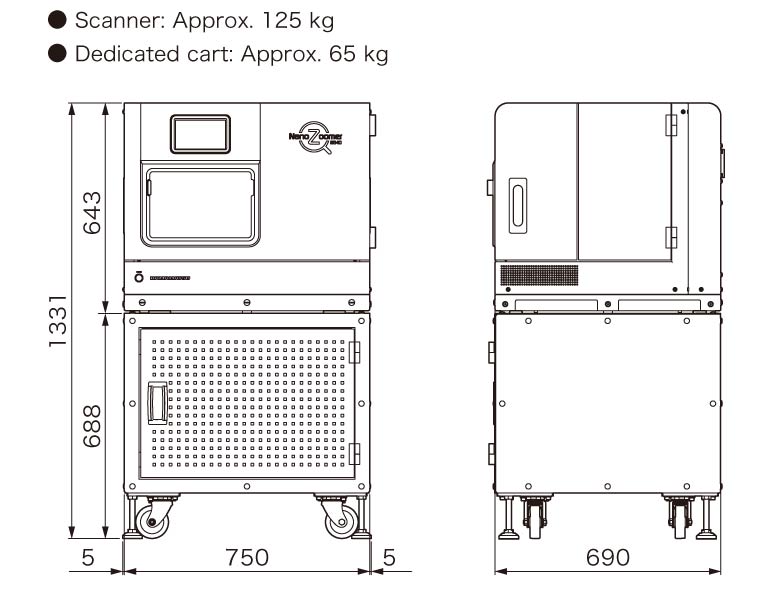

Dimensions
Related documents
Important Notice
Important Notice
In the USA, the C13220-01MD NanoZoomer S360MD Slide scanner system can be used for primary diagnosis in the following validated FDA-cleared displays:
・JVC JD-C240BN01A *The display is FDA cleared for use with the NanoZoomer S360MD.
・BARCO MDPC-8127 *The display itself is FDA cleared.
In Europe, the following products are regulatory compliant for IVDR (EU), UK MDR2002 (UK) and IvDO (CH) for in vitro diagnostic use:
C13220-21MDEU NanoZoomer S360MD Slide scanner system, C16600-21MDEU NanoZoomer S60v2MD Slide scanner system, C16300-21MDEU NanoZoomer S20MD Slide scanner system and C17400-21MDEU NanoZoomer S540MD Slide scanner system.
In China, the following products are registered for in vitro diagnostic use:
C13220-01 NanoZoomer S360 and C13210-01 NanoZoomer S60.
In Canada, C13220-31 NanoZoomer S360 and C16300-31MDCA NanoZoomer S20MD Slide scanner system have Medical Device License.
In Taiwan, C13220-01 NanoZoomer S360 is registered as medical device.
In Korea, C13220-61MDK NanoZoomer S360MD Slide scanner system and C16300-61MDK NanoZoomer S20MD Slide scanner system are registered as in vitro diagnostic medical device.
In Japan, C13220-11MDJ NanoZoomer S360MD Slide scanner system and C16300-11MDJ NanoZoomer S20MD Slide scanner system are approved as medical devices.
In Türkiye, C13220-21MDEU NanoZoomer S360MD Slide scanner system, C16600-21MDEU NanoZoomer S60v2MD Slide scanner system and C16300-21MDEU NanoZoomer S20MD Slide scanner system are registered as medical devices.
In Israel, C13220-21MDEU NanoZoomer S360MD Slide scanner system and C16600-21MDEU NanoZoomer S60v2MD Slide scanner system are registered as medical devices.
For other countries, the NanoZoomer series are for research use only and not permitted to use for clinical diagnostic purpose.
