NZConnect Scan Image acquisition server software
U16414-01
Web-based scanner management software that allows any authorized user on the network to seamlessly manage and operate multiple S540, S360 and S20 of the NanoZoomer® series.
Optimizing your workflow with centralized scanner management

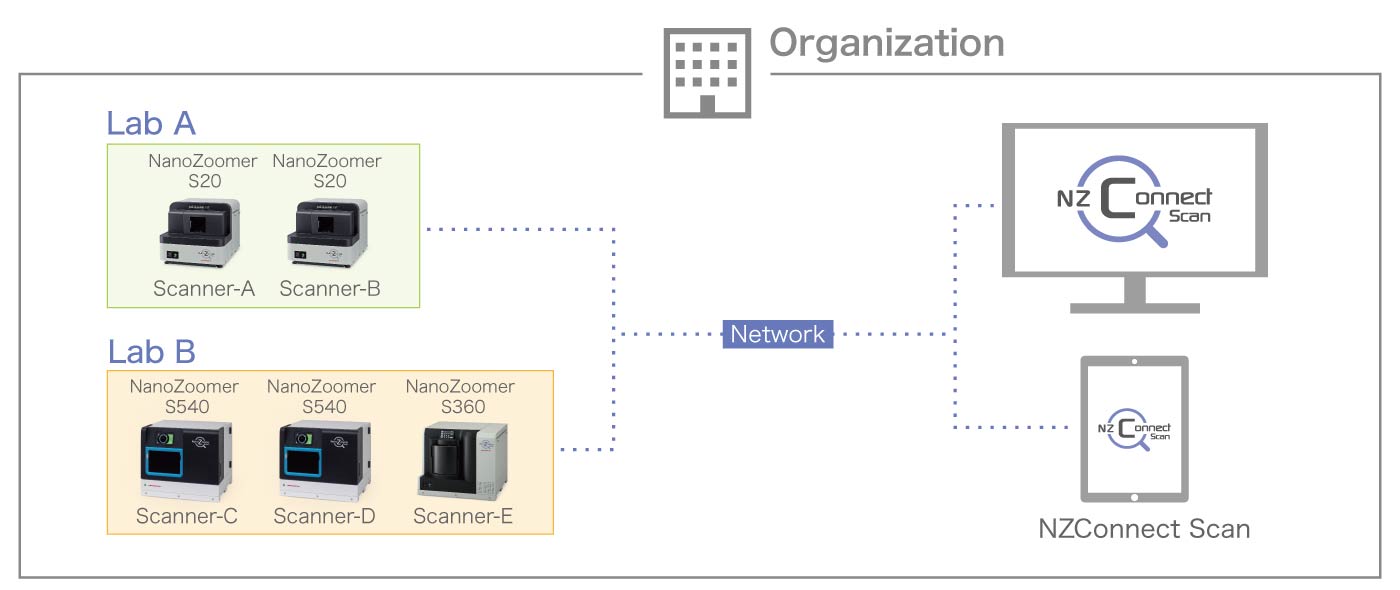

NZConnect Scan allows seamless management and operation of multiple NanoZoomer series scanners (S540, S360, and S20) from any authorised users on a networked computer. As a web-based application, it supports simultaneous access by multiple users across the network, ensuring efficient collaboration and streamlined workflows. With an integrated audit trail for enhanced traceability, NZConnect Scan delivers advanced control and oversight, setting a new standard for scanner management.
Features
Barcode driven workflow
■ Automatically select scan profiles based on slide barcode.
■ Scanned barcode data is shared between scanners.
■ Flexibly route slide images to any network destination.
Auto/Manual remote scanning
■ Freely mix slides for scanning in semi-automatic and fully-automatic modes.
■ Maintain control of scan settings in automated workflows, with the ability to adjust pre-applied settings.
Quality check management
■ Easily locate slides by scanning their barcode with a hand-held reader.
■ Use automated QC to check slides needing attention, with customizable focus score thresholds.
■ Use area check function to confirm scan areas on multiple slides at once.
Audit trail
Enhanced transparency of scanner activity, ensuring a clear record of key workflow steps. Track which slides were scanned, who performed QC checks, and when slides were accessed - all linked to secure user logins. Customizable filters allow tailored views of specific actions within set timeframes, with export options available to support IT security and governance.
Specifications
System requirements
| Product name | NZConnect Scan Image acquisition server software |
|---|---|
| Product number | U16414-01 |
| Type of computer | PC-AT compatibles |
| OS | Windows® Server 2022, Windows Server 2019, Windows Server 2016 |
| CPU | Xeon 2.8 GHz or more |
| Memory | 16 GB or more |
| Available HDD space | 50 GB or more |
| Drive | DVD-ROM Drive |
| Screen resolution | 1024 × 768 or higher |
| Database management system | Microsoft SQL Server 2016 Express with Advanced Services / Standard (64 bit) Microsoft SQL Server 2017 Express with Advanced Services / Standard (64 bit) Microsoft SQL Server 2019 Express with Advanced Services / Standard (64 bit) Microsoft SQL Server 2022 Express with Advanced Services / Standard (64 bit) |
Operating environment
| Compatible devices | Compatible OS | Supported browser |
|---|---|---|
| Windows PC | Windows 10 Including Touch panel | Microsoft Edge, Google Chrome, Mozilla Firefox |
| Windows 11 | ||
| Windows server 2022 | ||
| Windows server 2019 | ||
| Mac | macOS 15.x Sequoia | Safari Ver. 18 |
| macOS 14.x Sonoma | Safari Ver. 18 | |
| iPad | iPadOS Ver. 18 | Safari Ver. 18 |
| iPadOS Ver. 17 | Safari Ver. 17 |
Special sites
The Whole Slide Imaging special site is the feature section for whole slide imaging fit to research and pathology.
