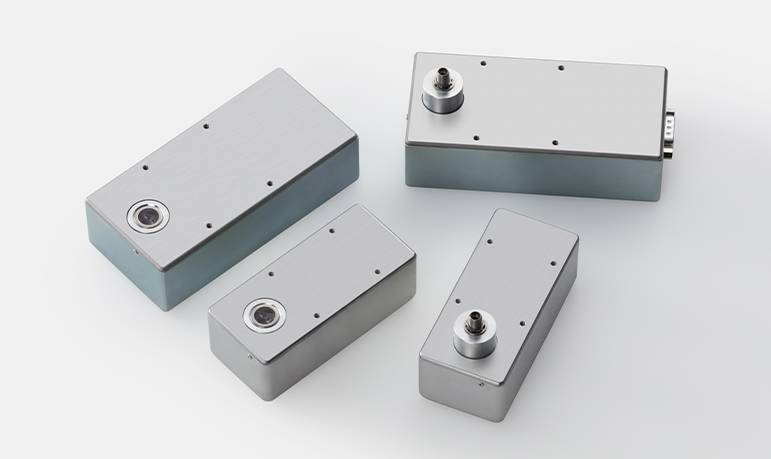

These lamp modules integrate a 5 W xenon flash lamp with a power supply and trigger socket and are designed to extract maximum performance from the lamp, including high luminous efficiency, high stability, and long lifetime.

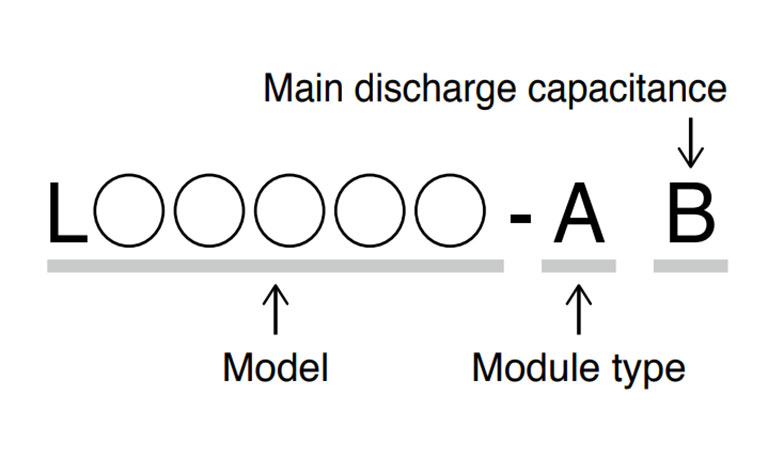

Model
Type No. |
Model | Arc size |
---|---|---|
L9455 | High-stability model | 1.5 mm |
L9456 | 3.0 mm |
A: Module type
Suffix | Type |
---|---|
0 | Standard type |
1 | SMA fiber adapter type |
NOTE:
Only standard type is available for L9456.
B: Main discharge capacitance
Suffix | Capacitance |
---|---|
1 | 0.22 µF |
2 | 0.11 µF |
Model
Type No. | Model | Arc size |
---|---|---|
L11316 | High-output model | 1.5 mm |
L11317 | 3.0 mm |
A: Module type
Suffix | Type |
---|---|
0 | Standard type |
1 | SMA fiber adapter type |
NOTE:
Only standard type is available for L11317.
B: Main discharge capacitance
Suffix | Capacitance |
---|---|
1 | 0.2 µF |
NOTE: If you are interested in the silent type, please feel free to contact us.

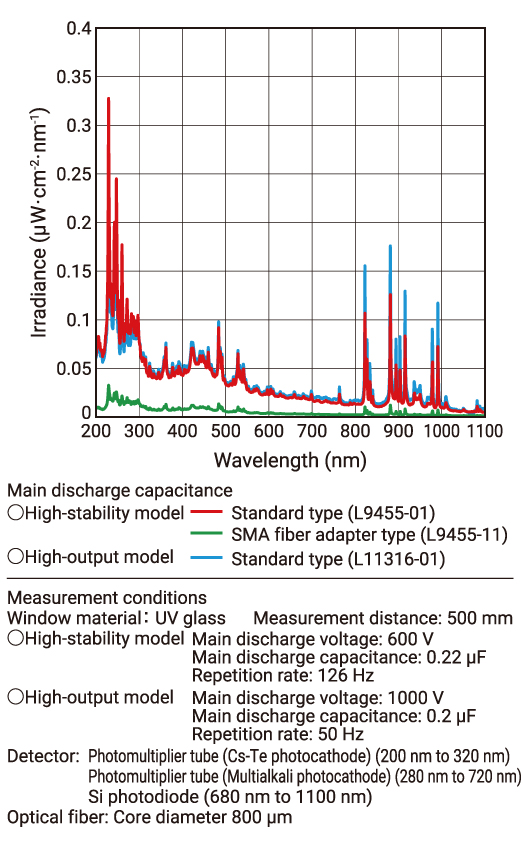

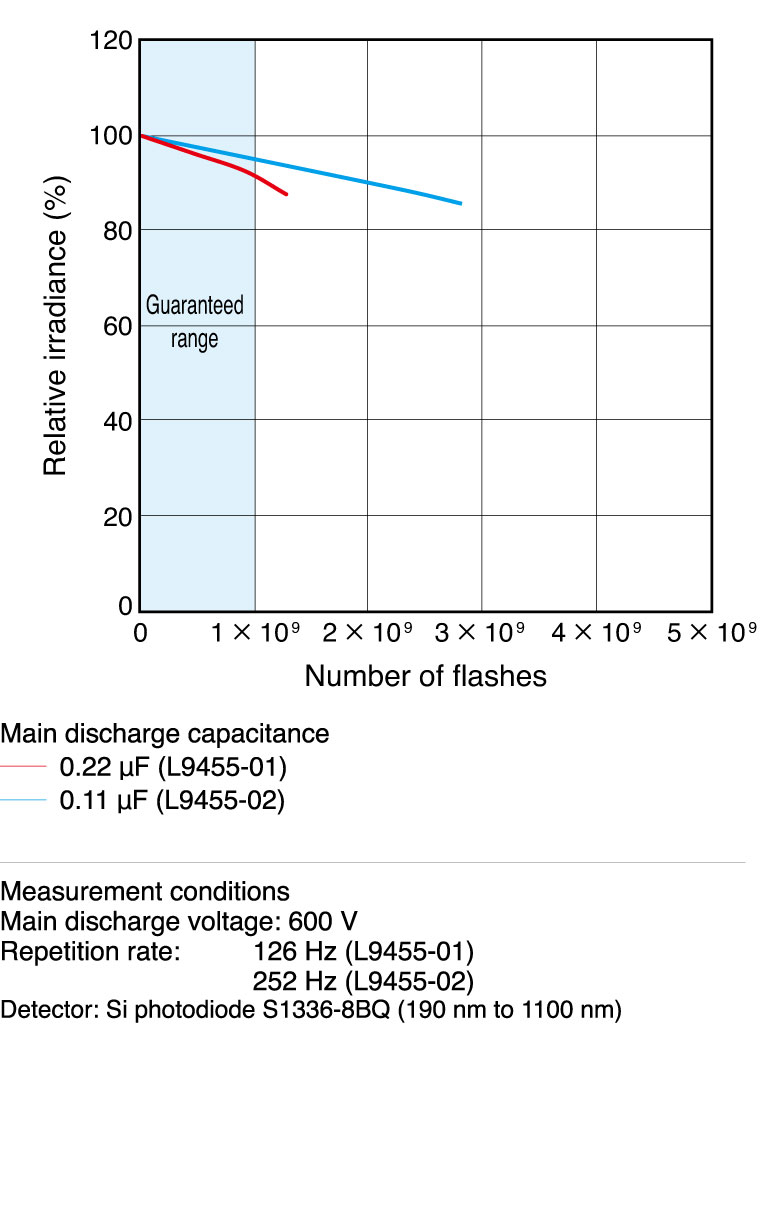

Parameter | High-stability model | High-output model | Unit | |||
---|---|---|---|---|---|---|
L9455-01/-02/-11/-12 | L9456-01/-02 | L11316-01/-11 | L11317-01 | |||
Arc size | 1.5 | 3.0 | 1.5 | 3.0 | mm | |
Window material | UV glass | - | ||||
Spectral distribution | 185 to 2500 | nm | ||||
Main discharge voltage variable range | Internal | 400 to 600 (*1) | 650 to 1000 (*1) | V | ||
External | 400 to 600 (*2) | 500 to 1000 (*3) | ||||
Main discharge capacitance | 0.22 / 0.11 | 0.2 | μF | |||
Maximum lamp input energy (per flash) | See operating condition examples | mJ | ||||
Maximum repetition rate | See operating condition examples | Hz | ||||
Maximum average lamp input (continuous) | See operating condition examples | W | ||||
Light output stability (*4)(*5) | Typ. | 0.4 | 0.3 | 0.9 | 0.4 | % CV |
2.8 | 1.7 | 4.8 | 2.3 | % p-p | ||
Max. | 2.0 | 1.5 | 3.0 | 2.5 | % CV | |
5.0 | 5.0 | 8.0 | 4.0 | % p-p | ||
Guaranteed life (*6) | 1 × 109 | 5 × 108 | flashes | |||
Input voltage | 11 to 28 | 21.6 to 26.4 | V | |||
Input current | 1 | 0.75 | A | |||
Inrush current | 4 | 3 | A | |||
Trigger signal | Rectangular wave 5 V to 10 V, pulse width 10 μs or more (*7) | - | ||||
Trigger input impedance | 330 | Ω | ||||
Cooling method | Not required (*8) | - | ||||
Operating temperature range | 0 to +40 | ℃ | ||||
Storage temperature range | -40 to +90 | ℃ | ||||
Operating humidity range | Below 85 % (no condensation) | - | ||||
Storage humidity range | Below 95 % (no condensation) | - | ||||
Applicable standards | EMC standards | IEC/EN 61326-1 Emission limits: CISPR 11 Group 1 Class A Immunity requirements: Table 2 |
- | |||
Safety standards | IEC/EN 62471 Risk Group 3 | |||||
Environmental standards (RoHS) | IEC/EN 63000 | |||||
Vibration resistance | 5 Hz to 200 Hz, 15 m/s2 | - | ||||
Shock resistance | 500 | m/s2 |
NOTE:
*1: Internal: Adjustable with a trimmer
*2: External: Variable with control voltage from 3.2 V to 4.8 V
*3: External: Variable with control voltage from 2.44 V to 4.88 V
*4: Light output stability (at a repetition rate of 10 Hz or more)
Light output stability (% CV) = light output standard deviation / average light output × 100
Light output stability (% p-p) = (maximum light output – minimum light output) / average light output × 100
*5: At 5 W operation ([High-stability model] main discharge voltage: 600 V, main discharge capacitance: 0.22 μF, repetition rate: 126 Hz / [High-output model] main discharge voltage: 1000 V, main discharge capacitance: 0.2 μF, repetition rate: 50 Hz)
*6: Measured with a Hamamatsu Si photodiode S1336-8BQ. The life is defined as the time at which the light output at 190 nm to 1100 nm decreases to 50 % of the initial output level or the light output fluctuation exceeds the specified maximum value when the lamp is operated at 5 W.
*7: External trigger only, synchronized at rising edge
*8: Cooling is necessary if the housing temperature exceeds 45 °C during operation.

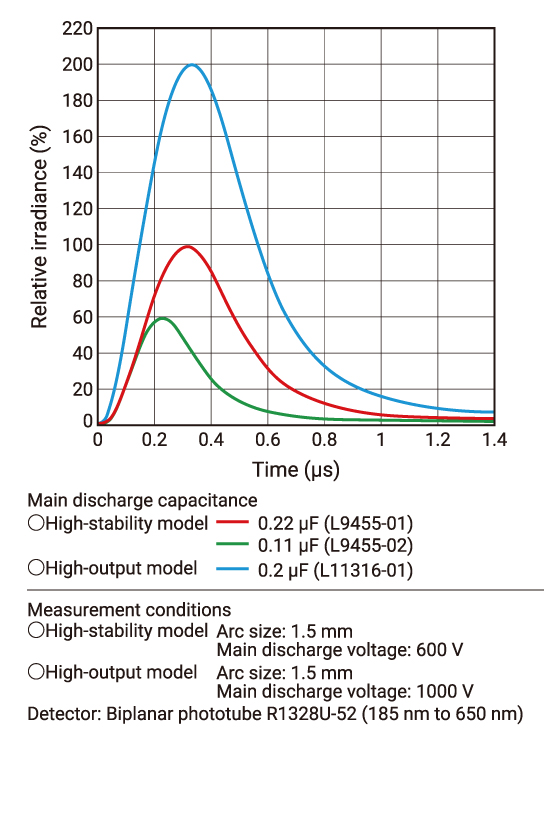

Type No. | Main discharge capacitance (μF) |
Main discharge voltage (V) |
Maximum lamp input energy (per flash) (mJ) (*9) |
Maximum repetition rate (Hz) (*10) |
Maximum average lamp input (continuous) (W) (*11) |
---|---|---|---|---|---|
L9455-01/-11 L9456-01 |
0.22 | 400 | 17.6 | 284 | 5.0 |
500 | 27.5 | 182 | 5.0 | ||
600 | 39.6 | 126 | 5.0 | ||
L9455-02/-12 L9456-02 |
0.11 | 400 | 8.8 | 530 | 4.7 |
500 | 13.8 | 362 | 5.0 | ||
600 | 19.8 | 252 | 5.0 | ||
L11316-01/-11 L11317-01 |
0.2 | 500 | 25.0 | 200 | 5.0 |
700 | 49.0 | 102 | 5.0 | ||
1000 | 100.0 | 50 | 5.0 |
NOTE:
*9: Lamp input energy (per flash) (J)
E = 1/2 × Cm × Vm2 Cm: Main discharge capacitance (F), Vm: Main discharge voltage (V)
*10: To ensure highly stable operation, 10 Hz or more repetition rate is recommended.
*11: Average lamp input (continuous) (W)
P = E × f E : Lamp input energy (per flash) (J), f : Repetition rate (Hz)
Loading… products
Sorry, your search did not return any results.
Please try again with different conditions.

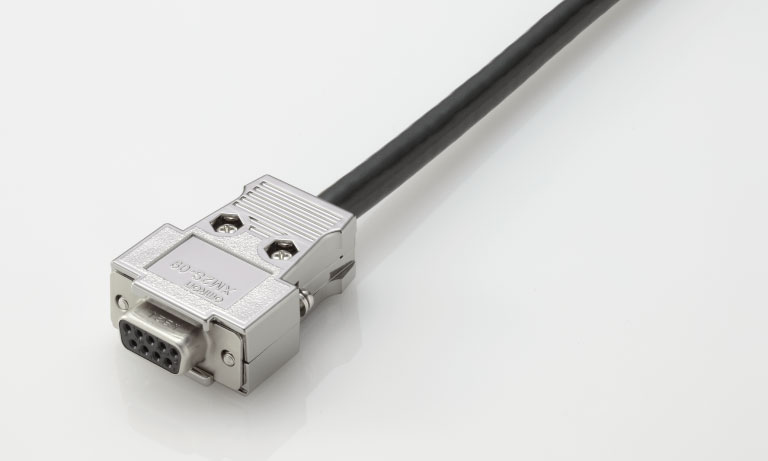

This is a shielded low-noise cable terminated with a D-sub connector for signal input. The cable length is 300 mm.
