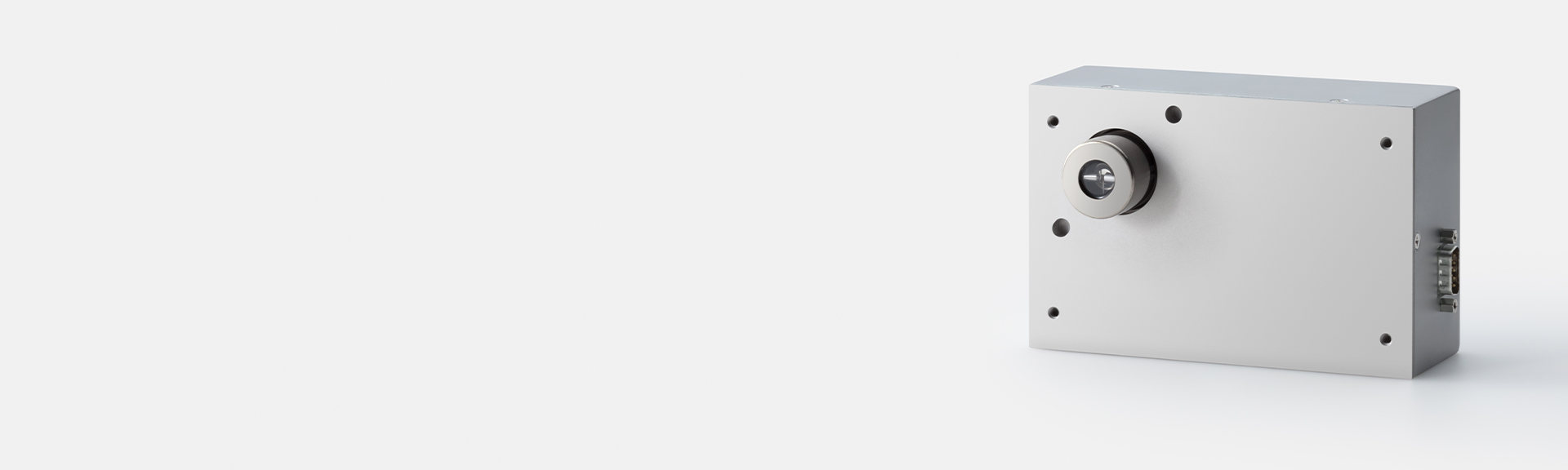

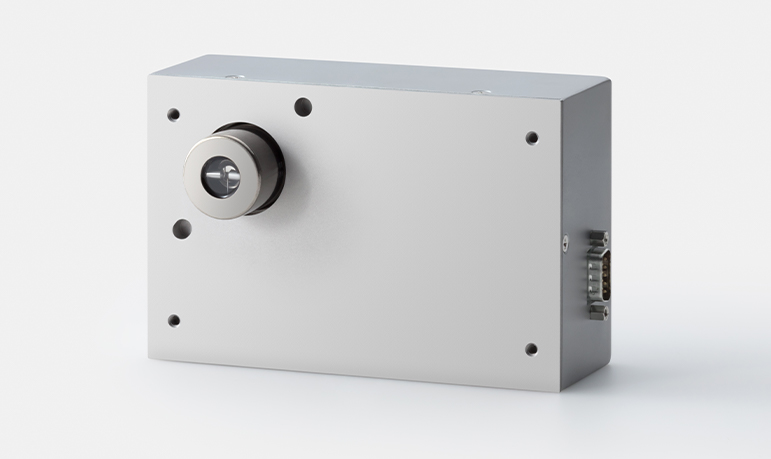

These lamp modules integrate a 20 W xenon flash lamp with a power supply and trigger socket and are designed to extract maximum performance from the lamp. These will prove ideal for a wide variety of applications including those requiring a high flash repetition rate or high lamp input energy. With the electrodes positioned precisely, there is no need for troublesome optical axis alignment which is required sometimes during installation or wiring tasks.

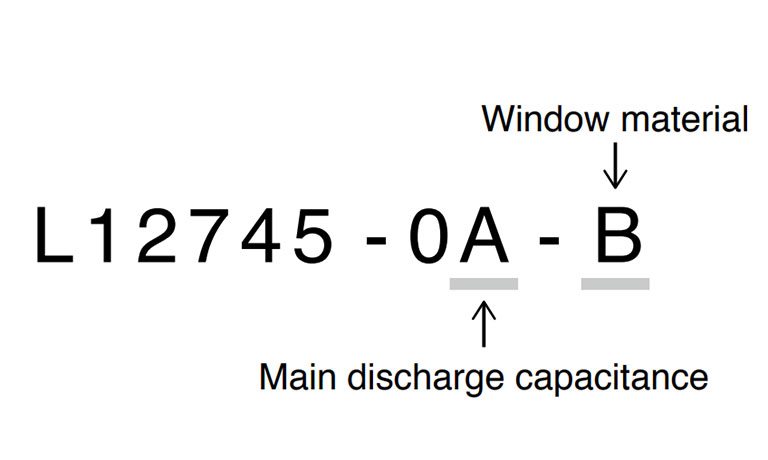

|Parameter||L12745-01 / -02 / -03||L12745-01-3 / -02-3 / -03-3||Unit|
|Window material||UV glass||MgF2||－|

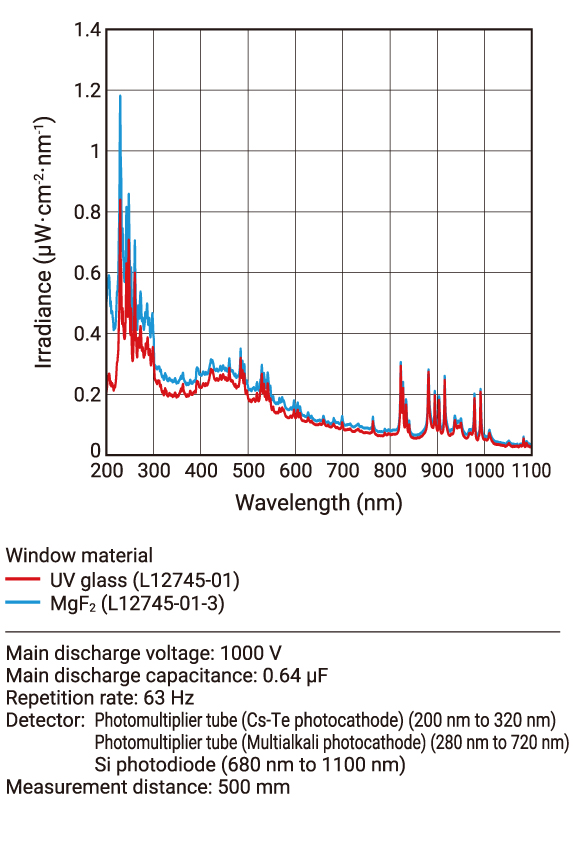

|Spectral distribution||185 to 2500||160 to 7500||nm|
|Main discharge voltage variable range||Internal (*1)||400 to 1000||V|
|External (*2)||400 to1000|

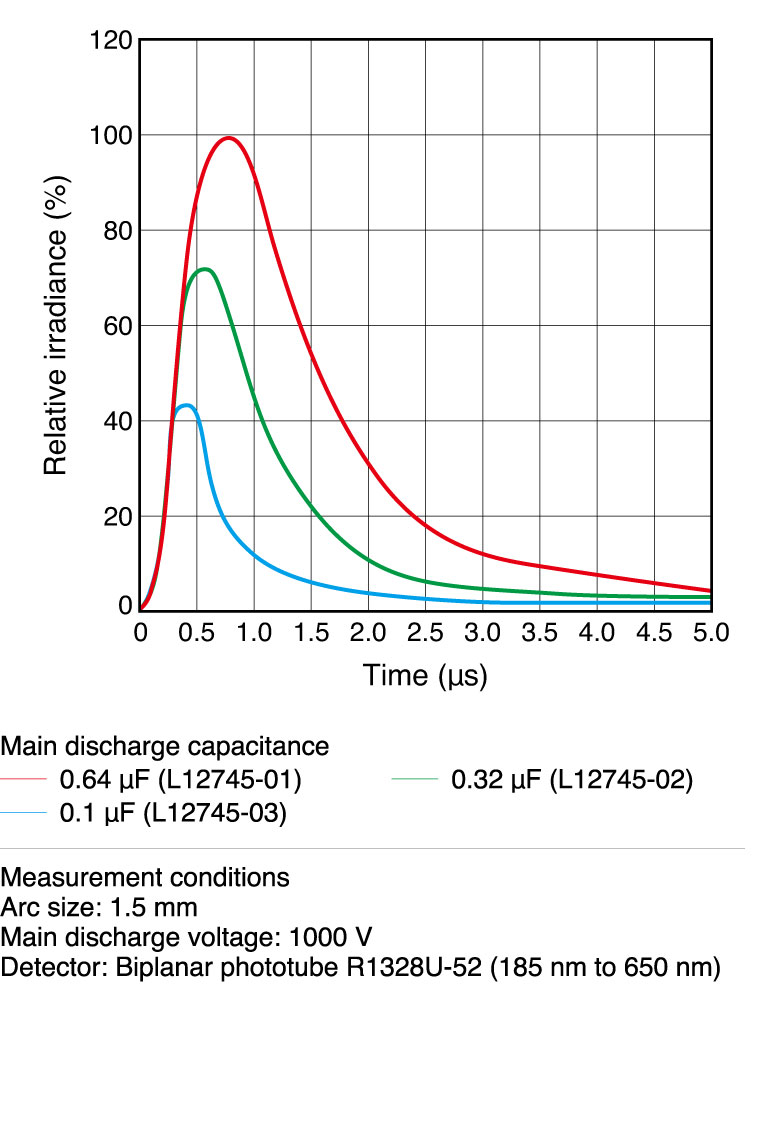

|Main discharge capacitance||0.64 / 0.32 / 0.1||μF|
|Maximum lamp input energy (per flash)||See operating condition examples||mJ|
|Maximum repetition rate||See operating condition examples||Hz|
|Maximum average lamp input (continuous)||See operating condition examples||W|
|Light output stability (*3)||Typ.||0.9||％ CV|
|Guaranteed life (*4)||1.5 × 108 to 1 × 109||flashes|
|Input voltage||21.6 to 26.4||V|
|Trigger signal||Rectangular wave 5 V to 10 V, pulse width 10 μs or more (*5)||－|
|Trigger input impedance||330||Ω|
|Cooling method||Not required (*6)||－|
|Operating temperature range||0 to +40||℃|
|Storage temperature range||-40 to +90||℃|
|Operating humidity range||Below 85 % (no condensation)||－|
|Storage humidity range||Below 95 % (no condensation)||－|
|Applicable standards||EMC standards||IEC/EN 61326-1
Emission limits: CISPR 11 Group 1 Class B
Immunity requirements: Table 1
|Safety standards||IEC/EN 61010-1 Risk Group 3|
|Environmental standards (RoHS)||IEC/EN 63000|
|Vibration resistance||5 Hz to 200 Hz, 15 m/s2||－|
*1: Internal: Adjustable with a trimmer
*2: External: Variable with control voltage from 1.9 V to 4.76 V
*3: Light output stability (at a repetition rate of 10 Hz or more)
Light output stability (% CV) = light output standard deviation / average light output × 100
Light output stability (% p-p) = (maximum light output – minimum light output) / average light output × 100
*4: Measured with a Hamamatsu Si photodiode S1336-8BQ.

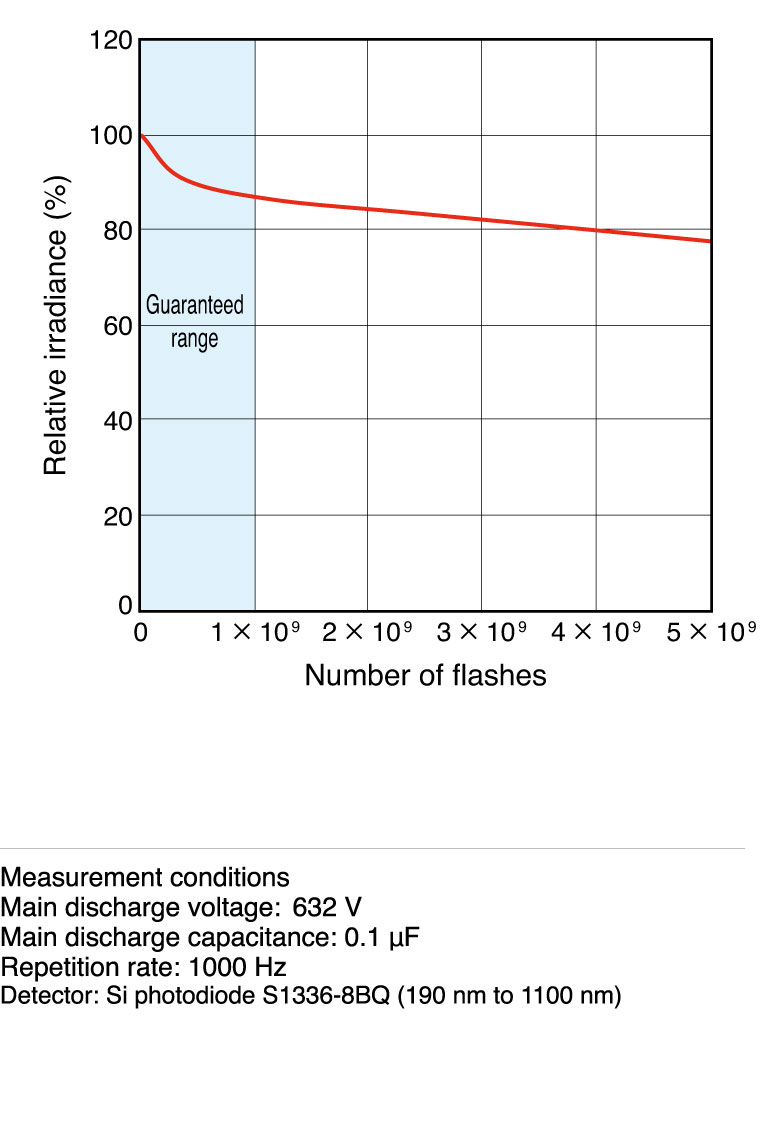

The life is defined as the time at which the light output at 190 nm to 1100 nm decreases to 50 % of the initial output level or the light output fluctuation exceeds the specified maximum value when the lamp is operated at 20 W (0.32 J to 0.02 J).
*5: External trigger only, synchronized at rising edge
*6: Cooling is necessary if the housing temperature exceeds 45 °C during operation.
|Type No.||Main discharge capacitance
|Main discharge voltage
|Maximum lamp input energy (per flash)(*7)
|Maximum repetition rate(*8)
|Maximum average lamp input (continuous)(*9)
*7: Maximum lamp input energy (per flash) (J)
E ＝ 1/2 × C × V2 C: Main discharge capacitance (F), V: Main discharge voltage (V)
*8: To ensure highly stable operation, 10 Hz or more repetition rate is recommended.
*9: Maximum average lamp input (continuous) (W)
P = E × f E: Maximum average lamp input energy (per flash) (J), f: Repetition rate (Hz)
Sorry, your search did not return any results.
Please try again with different conditions.

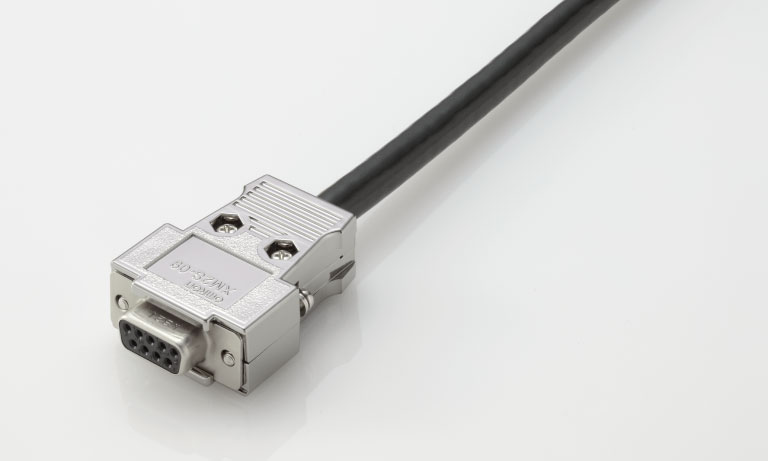

This is a shielded low-noise cable terminated with a D-sub connector for signal input. The cable length is 300 mm.
