Si APD

S6045-04

Low temperature coefficient type APD for 800 nm band


Features
-Low temperature coefficient: 0.4 V/℃
-High-speed response
-High sensitivity, low noise

Type Near infrared type
(Low temperature coefficient)
Photosensitive area φ1.5 mm
Package Metal
Package Category TO-5
Peak sensitivity wavelength (typ.) 800 nm
Spectral response range 400 to 1000 nm
Photosensitivity (typ.) 0.5 A/W
Dark current (max.) 5 nA
Cutoff frequency (typ.) 350 MHz
Terminal capacitance (typ.) 12 pF
Breakdown voltage (typ.) 200 V
Temperature coefficient of breakdown voltage (typ.) 0.4 V/℃
Gain (typ.) 100
Measurement condition Typ. Ta=25 ℃, unless otherwise noted,
Photosensitivity: λ=800 nm, M=1

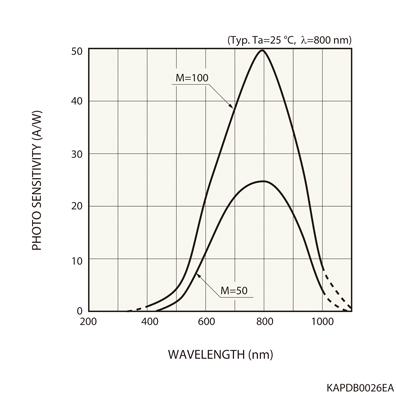

Spectral response

Dimensional outline (unit: mm)
