Photosensor with front-end IC


Compact 16-element APD array suitable for various light level detection (parallel output)

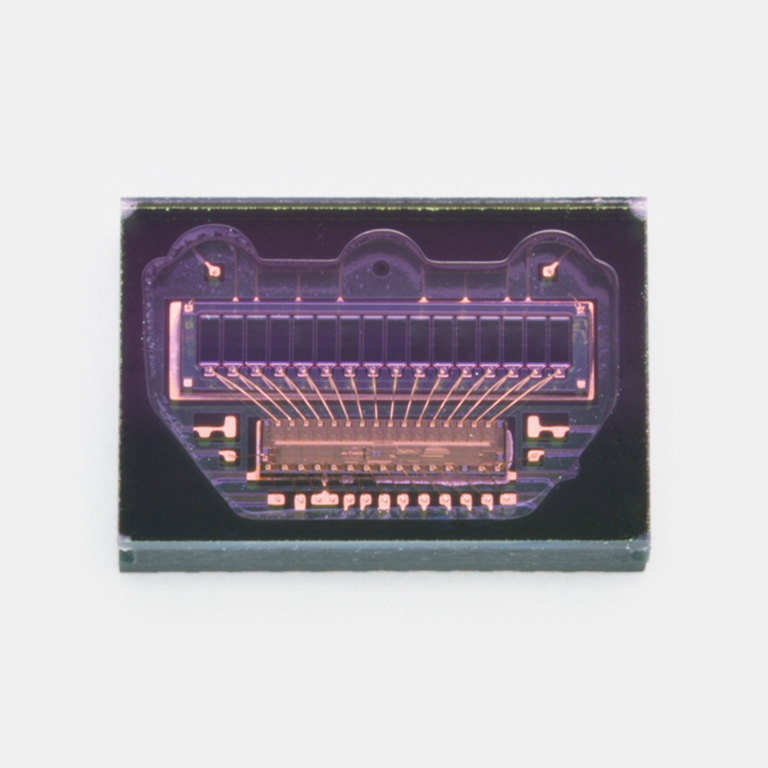

The S14137-01CR is a compact optical device that integrates a 16-element APD array and a preamp. The incident light pulse is converted into a voltage pulse, and then the converted pulse is output. It has a built-in DC feedback circuit for reducing the effects of background light. The parallel output 16-element array enables simultaneous measurement of all pixels.

-16 ch parallel output
-High-speed response: 180 MHz
-Reduced background light effects
-No waveform distortion when excessive light is incident


Package Plastic
Number of channel 16 ch
Photosensitive area/ch 0.15 × 0.43 mm
Spectral response range 420 to 1150 nm
Peak sensitivity wavelength 840 nm
Photosensitivity 36 kV/W
High Band Cut-off Frequency 180 MHz
Note Photosensitivity: λ=905 nm, M=50

Spectral response

Dimensional outline (unit: mm)
