The S9706 is a digital color sensor sensitive to red (λ=615 nm), green (λ=540 nm)、blue(λ=465 nm) regions of the spectrum. Detected signals are serially output as 12-bit digital data. Built-in three 12-bit registers allow simultaneous measurement of RGB three colors. Sensitivity level is adjustable in two steps to cover a wide photometric range.
|Product type||RGB digital color sensor|
|Package type||Surface mount type|
|Package size||4.0 × 4.7 × 2.6 mm|
|Photosensitive area||1.2 × 1.2 mm|

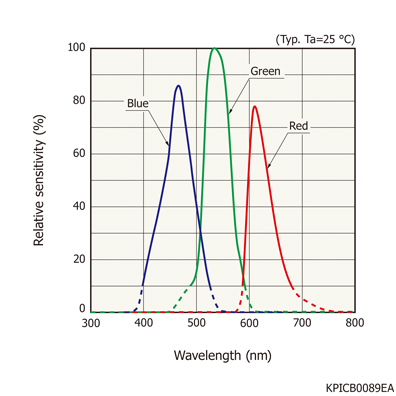

|Spectral response range (Blue)||400 to 540 nm|
|Spectral response range (Green)||480 to 600 nm|
|Spectral response range (Red)||590 to 720 nm|
|Peak sensitivity wavelength (Blue)||465 nm|
|Peak sensitivity wavelength (Green)||540 nm|
|Peak sensitivity wavelength (Red)||615 nm|
|Photosensitivity Low range (Blue)||0.21 LSB/lx|
|Photosensitivity Low range (Green)||0.45 LSB/lx|
|Photosensitivity Low range (Red)||0.64 LSB/lx|
|Photosensitivity High range (Blue)||1.9 LSB/lx|
|Photosensitivity High range (Green)||4.1 LSB/lx|
|Photosensitivity High range (Red)||5.8 LSB/lx|
|Operating temperature||-25 to +85 deg.C|
|Storage temperature||-20 to +85 deg.C|
|Measurement condition||Typ. Ta=25 deg.C, Vdd=5 V, Tg=100 ms, A light source, unless otherwise noted|
