|Photosensitive area||2.4 × 2.4 mm|
|Number of elements||1|
|Reverse voltage (max.)||5 V|
|Spectral response range||190 to 1000 nm|
|Peak sensitivity wavelength (typ.)||720 nm|

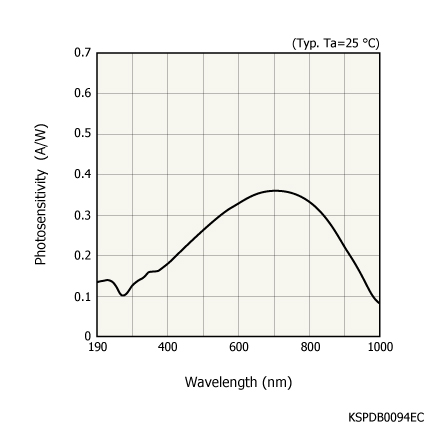

|Photosensitivity (typ.)||0.36 A/W|
|Dark current (max.)||5 pA|
|Rise time (typ.)||0.5 μs|
|Terminal capacitance (typ.)||160 pF|
|Noise equivalent power (typ.)||2.5×10-15 W/Hz1/2|
|Measurement condition||Typ. Ta=25 ℃, Photosensitivity: λ=720 nm, Dark current: VR=10 mV, Terminal capacitance: VR=0 V, f=10 kHz, unless otherwise noted|
