|Photosensitive area||5.8 × 5.8 mm|
|Number of elements||1|
|Reverse voltage (max.)||5 V|

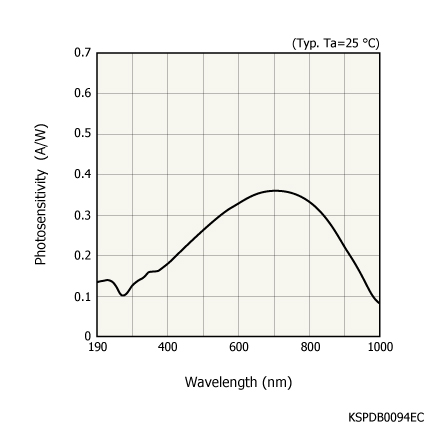

|Spectral response range||190 to 1000 nm|
|Peak sensitivity wavelength (typ.)||720 nm|
|Photosensitivity (typ.)||0.36 A/W|
|Dark current (max.)||20 pA|
|Rise time (typ.)||2 μs|
|Terminal capacitance (typ.)||950 pF|
|Noise equivalent power (typ.)||5×10-15 W/Hz1/2|
|Measurement condition||Typ. Ta=25 ℃, Photosensitivity: λ=720 nm, Dark current: VR=10 mV, Terminal capacitance: VR=0 V, f=10 kHz, unless otherwise noted|
