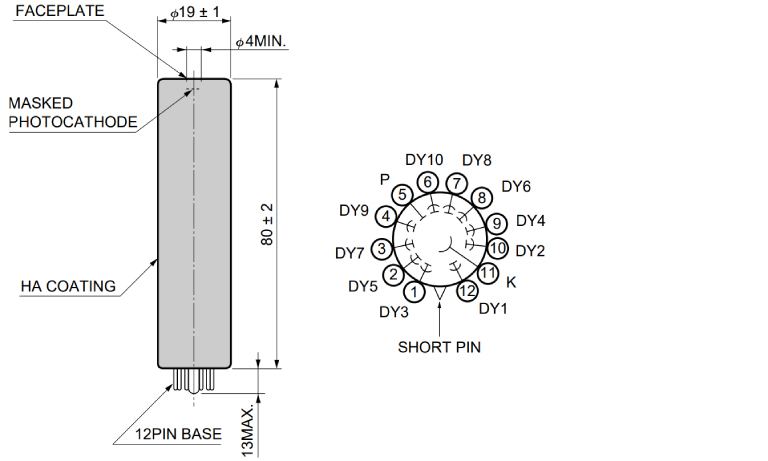

|Tube Size||Dia.19 mm|
|Photocathode Area Shape||Round|
|Photocathode Area Size||Dia.4 mm|
|Wavelength (Short)||300 nm|
|Wavelength (Long)||650 nm|
|Wavelength (Peak)||420 nm|
|Spectral Response Curve Code||400K|
|Window Material||Borosilicate glass|
|[Max. Rating] Anode to Cathode Voltage||1250 V|
|[Max. Rating] Average Anode Current||0.1 mA|
|Anode to Cathode Supply Voltage||1000 V|
|[Cathode] Luminous Sensitivity Min.||80 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||120 μA/lm|
|[Cathode] Radiant Sensitivity Typ.||51 mA/W|
|[Anode] Luminous Sensitivity Typ.||150 A/lm|
|[Anode] Radiant Sensitivity Typ.||6.1 x 104 A/W|
|[Anode] Gain Typ.||1.2 x 106|
|[Anode] Dark Current (after 30min.) Typ.||100 (s-1) nA|
|[Anode] Dark Current (after 30min.) Max.||250 (s-1) nA|
|[Time Response] Rise Time Typ.||1.7 ns|
|[Time Response] Transit Time Typ.||24 ns|
