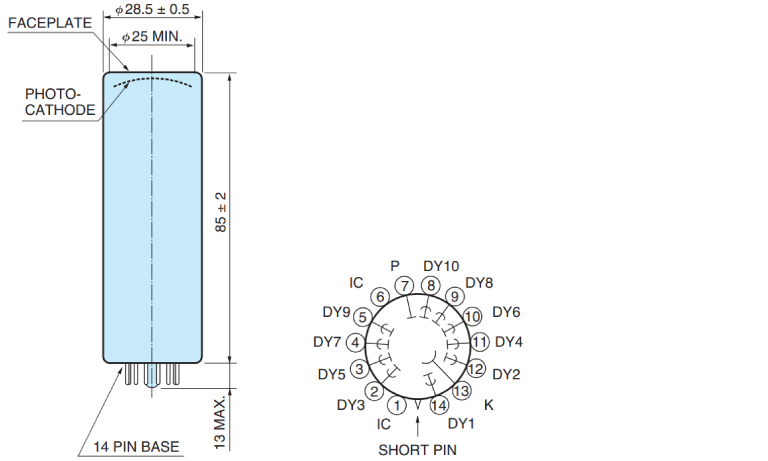

|Tube Size||Dia.28 mm|
|Photocathode Area Shape||Round|
|Photocathode Area Size||Dia.25 mm|
|Wavelength (Short)||300 nm|
|Wavelength (Long)||650 nm|
|Wavelength (Peak)||420 nm|
|Spectral Response Curve Code||400K|
|Window Material||Borosilicate glass|
|[Max. Rating] Anode to Cathode Voltage||2000 V|
|[Max. Rating] Average Anode Current||0.1 mA|
|Anode to Cathode Supply Voltage||1500 V|
|[Cathode] Luminous Sensitivity Min.||70 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||100 μA/lm|
|[Cathode] Blue Sensitivity Index (CS 5-58) Typ.||11|
|[Cathode] Radiant Sensitivity Typ.||88 mA/W|
|[Anode] Luminous Sensitivity Typ.||500 A/lm|
|[Anode] Radiant Sensitivity Typ.||4.4 x 105 A/W|
|[Anode] Gain Typ.||5.0 x 106|
|[Anode] Dark Current (after 30min.) Typ.||10 nA|
|[Anode] Dark Current (after 30min.) Max.||200 nA|
|[Time Response] Rise Time Typ.||1.7 ns|
|[Time Response] Transit Time Typ.||16 ns|
|[Time Response] Transit Time Spread Typ.||0.5 ns|
|[Anode] Pulse Linearity (2% deviation)||10 mA|
