Multianode photomultiplier tube


30 mm x 30 mm metal package type, Multialkali photocathode (Effective area : 0.8mm x 16.0mm[16ch] / Spectral response : 185 nm to 880 nm), 16 linear multianode type, UV glass window type of R5900U-01-L16

Type Metal package type
Tube Size 30 mm x 30 mm
Photocathode Area Shape Square
Photocathode Area Size 15.8 mm x 16.0 mm (L16 ch)
Wavelength (Short) 185 nm
Wavelength (Long) 880 nm
Wavelength (Peak) 420 nm
Spectral Response Curve Code 500 U
Photocathode Material Multialkali
Window Material UV glass
Dynode Structure Metal channel
Dynode Stages 10
[Max. Rating] Anode to Cathode Voltage 900 V
[Max. Rating] Average Anode Current 0.1 mA
Anode to Cathode Supply Voltage 800 V
[Cathode] Luminous Sensitivity Min. 150 μA/lm
[Cathode] Luminous Sensitivity Typ. 250 μA/lm
[Cathode] Red/White Ratio (R-68) Typ. 0.3
[Cathode] Radiant Sensitivity Typ. 65 mA/W
[Anode] Luminous Sensitivity Min. 75 A/lm
[Anode] Luminous Sensitivity Typ. 250 A/lm
[Anode] Radiant Sensitivity Typ. 6.5 x 104 A/W
[Anode] Gain Typ. 1.0 x 106
[Time Response] Rise Time Typ. 0.6 ns
[Time Response] Transit Time Typ. 7.4 ns

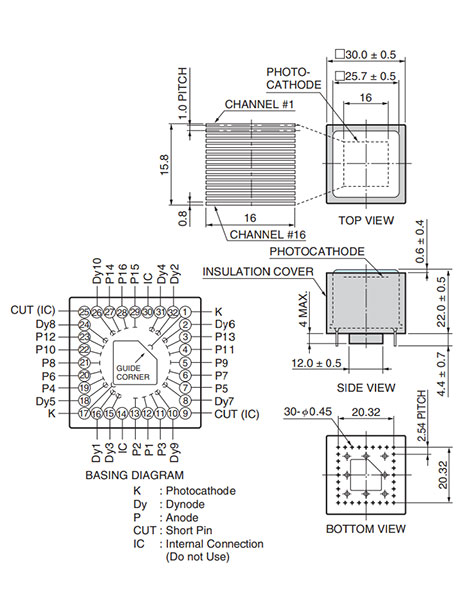

Dimensional outline (Unit: mm)
