Multianode photomultiplier tube

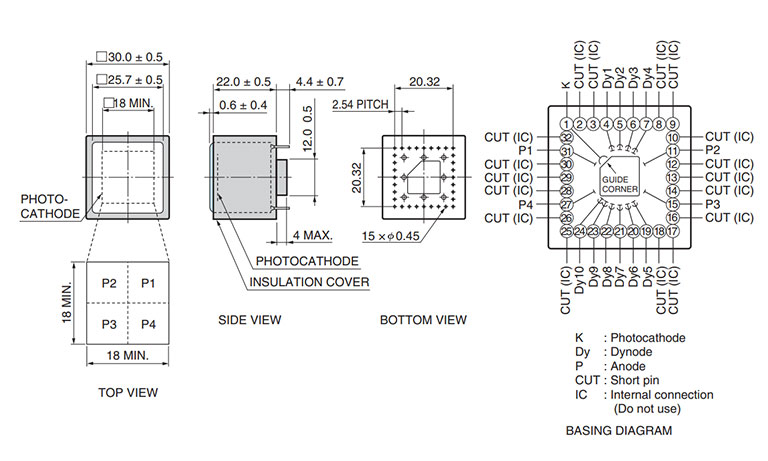

30 x 30 mm metal package type, Bialkali photocathode (Effective area : 18 x 18 mm dia./Spectral response : 185 to 650 nm), 2 x 2 multianode type, UV glass window type of R7600U-03-M4
|Type||Metal package type|
|Tube Size||30 x 30 mm|
|Photocathode Area Shape||Multianode|
|Photocathode Area Size||18 x 18 mm|
|Wavelength (Short)||185 nm|
|Wavelength (Long)||650 nm|
|Wavelength (Peak)||420 nm|
|Spectral Response Curve Code||400U|
|Window Material||UV glass|
|Dynode Structure||Metal channel|
|[Max. Rating] Anode to Cathode Voltage||900 V|
|[Max. Rating] Average Anode Current||0.1 mA|
|Anode to Cathode Supply Voltage||800 V|
|[Cathode] Luminous Sensitivity Min.||60 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||80 μA/lm|
|[Cathode] Blue Sensitivity Index (CS 5-58) Typ.||9.5|
|[Cathode] Radiant Sensitivity Typ.||80 mA/W|
|[Anode] Luminous Sensitivity Min.||25 A/lm|
|[Anode] Luminous Sensitivity Typ.||140 A/lm|
|[Anode] Radiant Sensitivity Typ.||1.4 x 105 A/W|
|[Anode] Gain Typ.||1.8 x 106|
|[Anode] Dark Current (after 30min.) Typ.||0.5/ch nA|
|[Anode] Dark Current (after 30min.) Max.||5/ch nA|
|[Time Response] Rise Time Typ.||1.2 ns|
|[Time Response] Transit Time Typ.||9.5 ns|
|[Time Response] Transit Time Spread Typ.||0.36 ns|
|[Anode] Pulse Linearity (2% deviation)||10/ch mA|
|[Anode] Pulse Linearity (5% deviation)||30/ch mA|
