Sequencer software

Making wafer-level failure trends visible

Sequencer software enables automated failure analysis at the wafer level. While die-to-die comparison is limited in manual EFA, automatic die-to-die analysis using our Sequencer software makes wafer-level failure trends visible.

Improved throughput

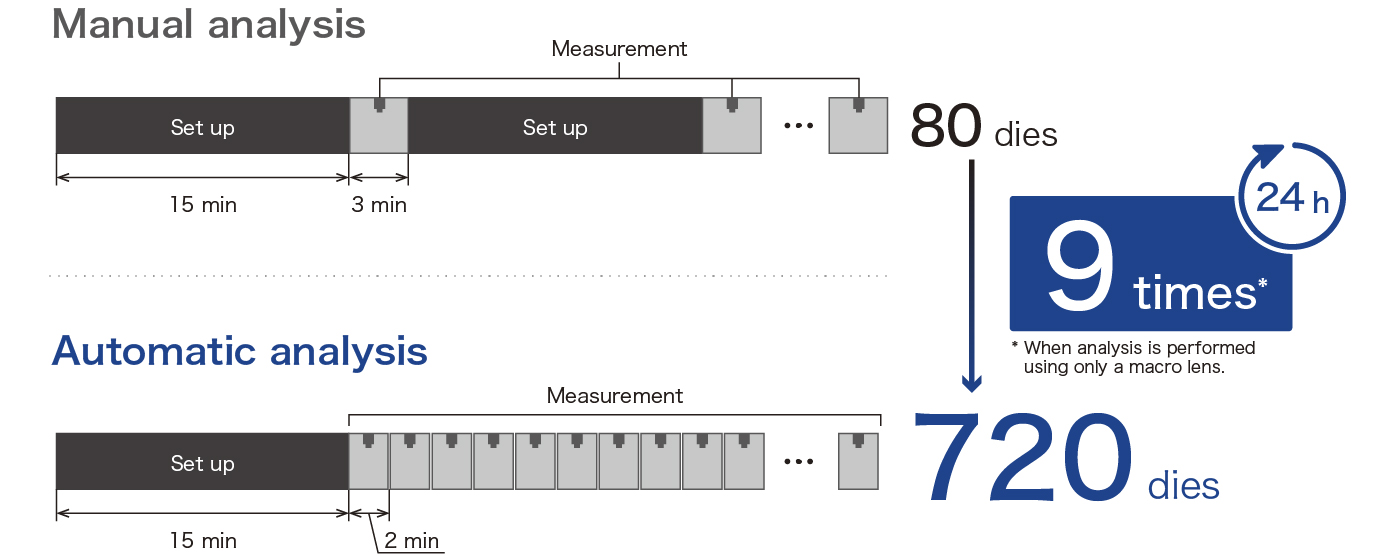

Data collection is often time-consuming, requiring several hours to image even a small number of sites. Equipped with Sequencer software, our automated system features a macro-lens-only workflow that processes up to 720 sites within 24 hours—delivering throughput equivalent to nine conventional systems.

Automatic die-to-die analysis

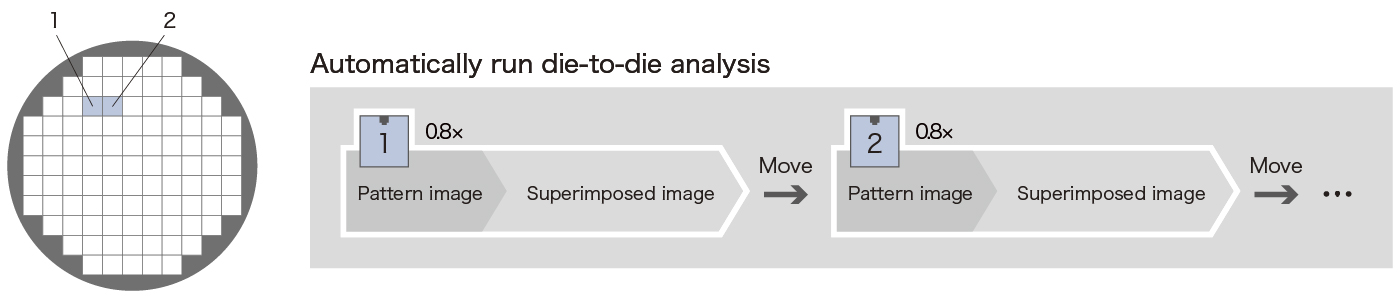

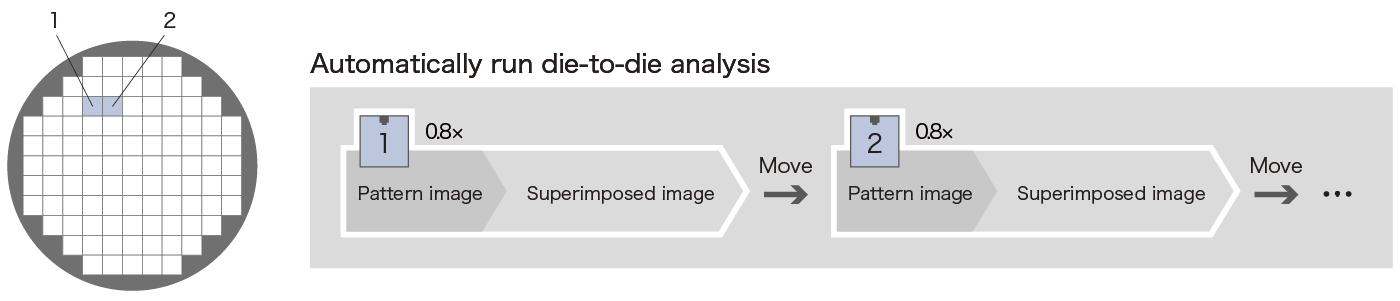

1. Automatically run die-to-die analysis using a macro lens.

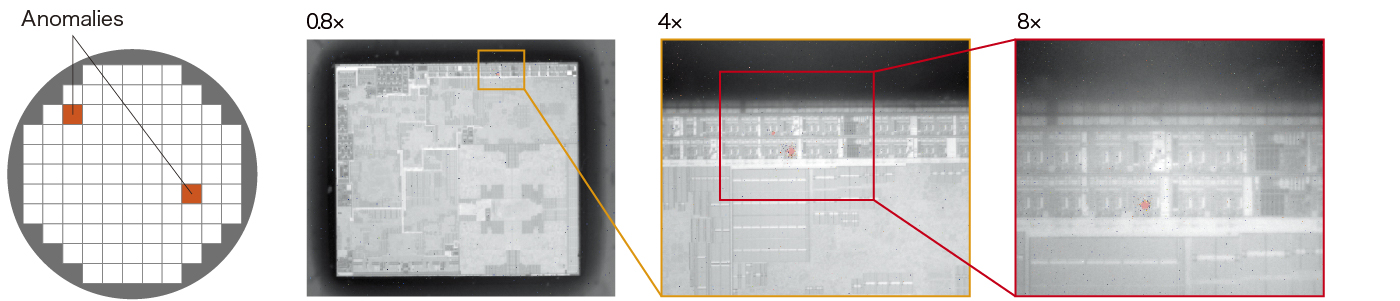

2. Anomaly extraction with automatic zoom-in for deeper analysis.

Related products

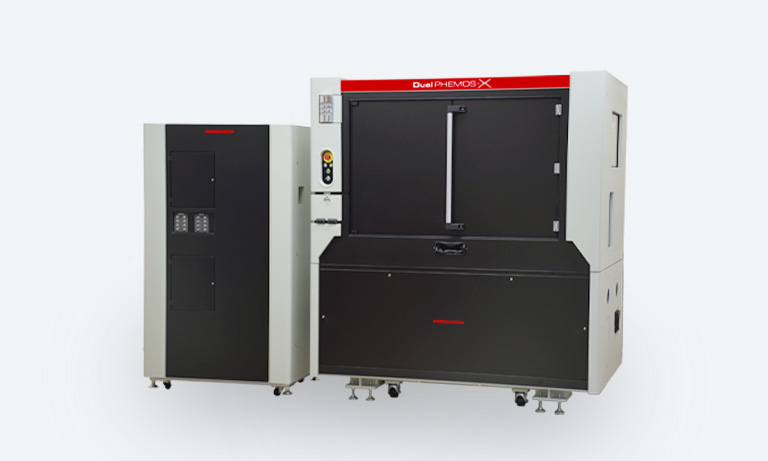

The Dual PHEMOS-X is designed for advanced, 3D, nontransparent devices where simultaneous optical FA may be required from both sides (top and bottom) at the wafer or die level.

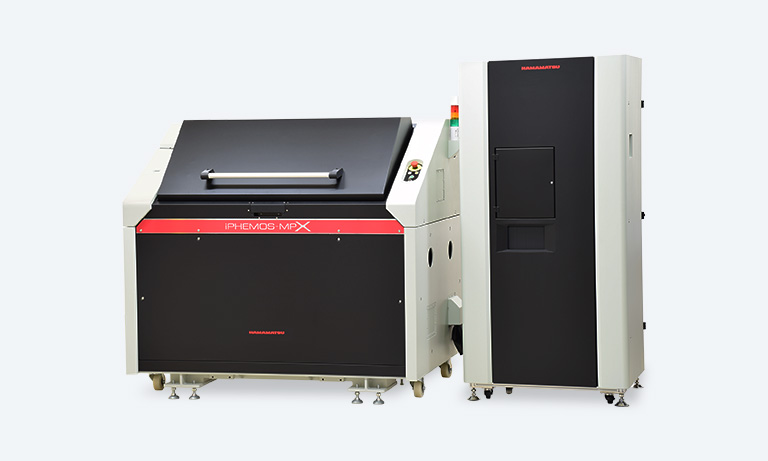

iPHEMOS-MPX is a high-resolution emission microscope that pinpoints failure locations in semiconductor devices by detecting the weak light emissions and heat emissions caused by defects.
