Micro LED PL inspection system

SEMICONDUCTOR APPLICATION LAB. | Micro LED PL inspection system

What is SEMICONDUCTOR APPLICATION LAB. ?

SEMICONDUCTOR APPLICATION LAB. (located in Joko Factory, Hamamatsu City, Shizuoka Prefecture) is a laboratory designed for co-creation with customers. We have equipment to solve your problems, including semiconductor failure analysis and wafer testing.

Introduction

*It may not work properly depending on your browser and settings.

Use cases for SEMICONDUCTOR APPLICATION LAB.

SEMICONDUCTOR APPLICATION LAB. is not only for customers using our products but also for those considering purchasing them.

We provide this Lab. as a place to use the equipment for those who would like to "try the equipment for purchase consideration," "learn how to operate the equipment before installation," or "learn how to use the equipment in an applied way". Also, for semiconductor companies to communicate with each other to "solve problems to improve the quality of semiconductors" or "exchange opinions to explore new analysis technologies.

Use cases for SEMICONDUCTOR APPLICATION LAB.

Available products

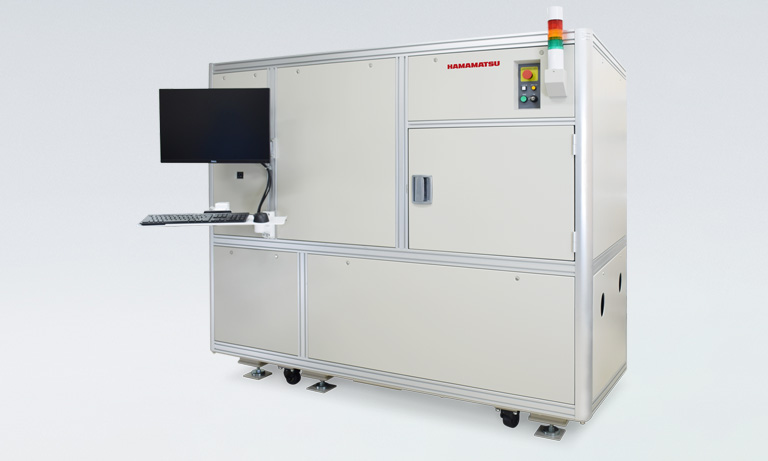

MiNY PL is an inspection system for micro LED wafers using the photoluminescence (PL) measurement method.

Contact us for more information.
