Confocal microscopy
What is confocal microscopy?
Confocal laser scanning microscopy is a powerful optical imaging technique designed to improve the resolution and contrast of microscopic images. It achieves this by using a spatial pinhole to block out-of-focus light, enhancing the clarity of the final image. This technology is especially valuable in biological sciences for visualizing detailed structures within cells and other biological materials.
In the broader field of microscopy, there are three main branches: optical microscopy, electron microscopy, and scanning probe microscopy, with the emerging field of X-ray microscopy adding to the range of techniques available. In biological imaging, fluorescence dyes and proteins are often used to provide contrast and specificity, allowing researchers to examine fine cellular structures in detail.
A laser scanning microscope (LSM) is an essential tool in this area. Many LSMs utilize a confocal optical system, where a pinhole at the focal point eliminates out-of-focus light, providing superior optical resolution in the sample’s depth compared to wide-field microscopes. This selective detection of fluorescence only from the focal point leads to images with minimal blurring, high contrast, and high resolution.
However, when the pinhole blocks light emitted outside the focal plane, it also reduces the amount of signal light reaching the detector. To compensate for this, high-sensitivity detectors such as photomultiplier tubes (PMTs), hybrid photodetectors (HPDs), and multi-pixel photon counters (MPPCs or SiPMs) are often used. These detectors, with their high quantum efficiency and low dark current, allow for a strong signal-to-noise ratio, providing clear contrast and a high dynamic range in the resulting images.
A key advantage of confocal microscopy is the ability to capture precise fluorescent images at specific focal planes. By acquiring a series of images at different focal depths, researchers can reconstruct three-dimensional representations of the sample, accurately depicting spatial relationships within the structure. This capability is crucial for studies that require a detailed understanding of biological samples in three dimensions.

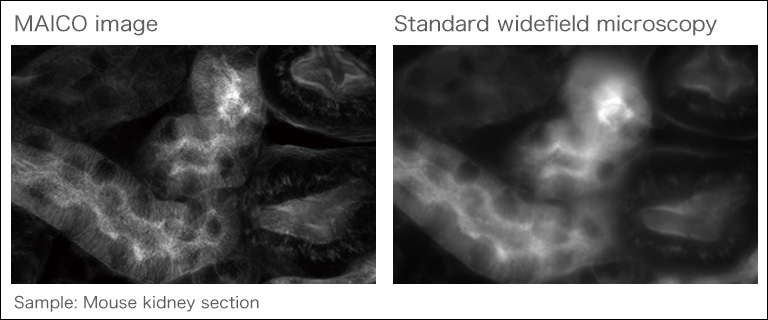

Figure 1: Comparison of images between confocal microscopy and conventional epifluorescence microscopy.

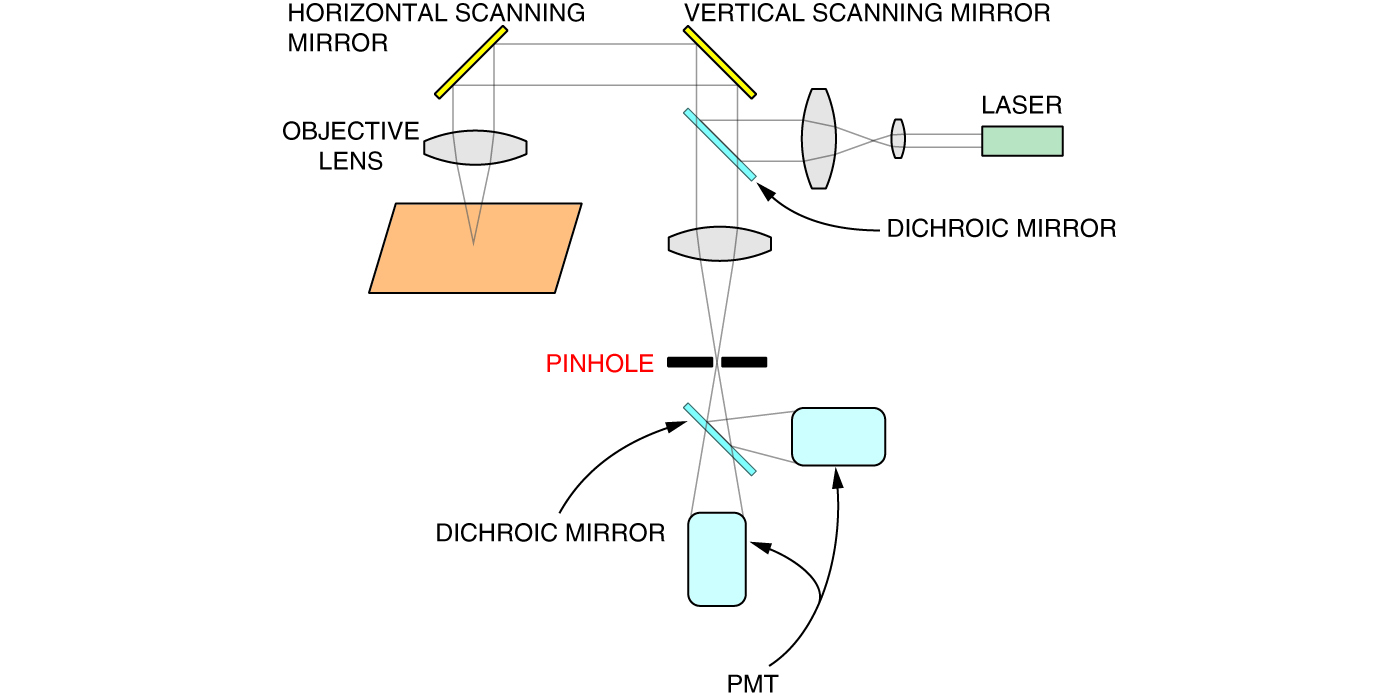

Figure 2: Componets of a confocal laser scanning microscope
Confocal microscopes come in two main types: point-scanning and spinning disk systems. Each type has distinct characteristics, suited to different applications depending on the imaging requirements, such as speed and resolution.
Point-scanning confocal microscopy
Learn how point-scanning confocal microscopes use photomultiplier tubes, SiPMs, and MEMS mirrors for fast, high-resolution imaging of cellular structures.
Spinning disk confocal microscopy
Find the ideal camera for spinning disk confocal microscopy. Compare Hamamatsu ORCA models optimized for speed, sensitivity, and resolution in live-cell imaging.
