Imaging examples | Microfocus X-ray sources

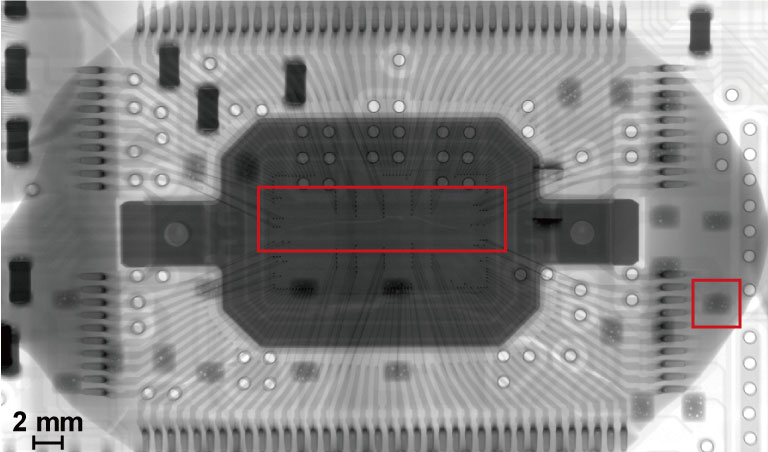

ECU: Engine Control Unit

Cracks and voids (bubbles) can be observed.

X-ray source: L12161-07
Tube voltage: 150 kV
Geometric magnification: 1.25 times

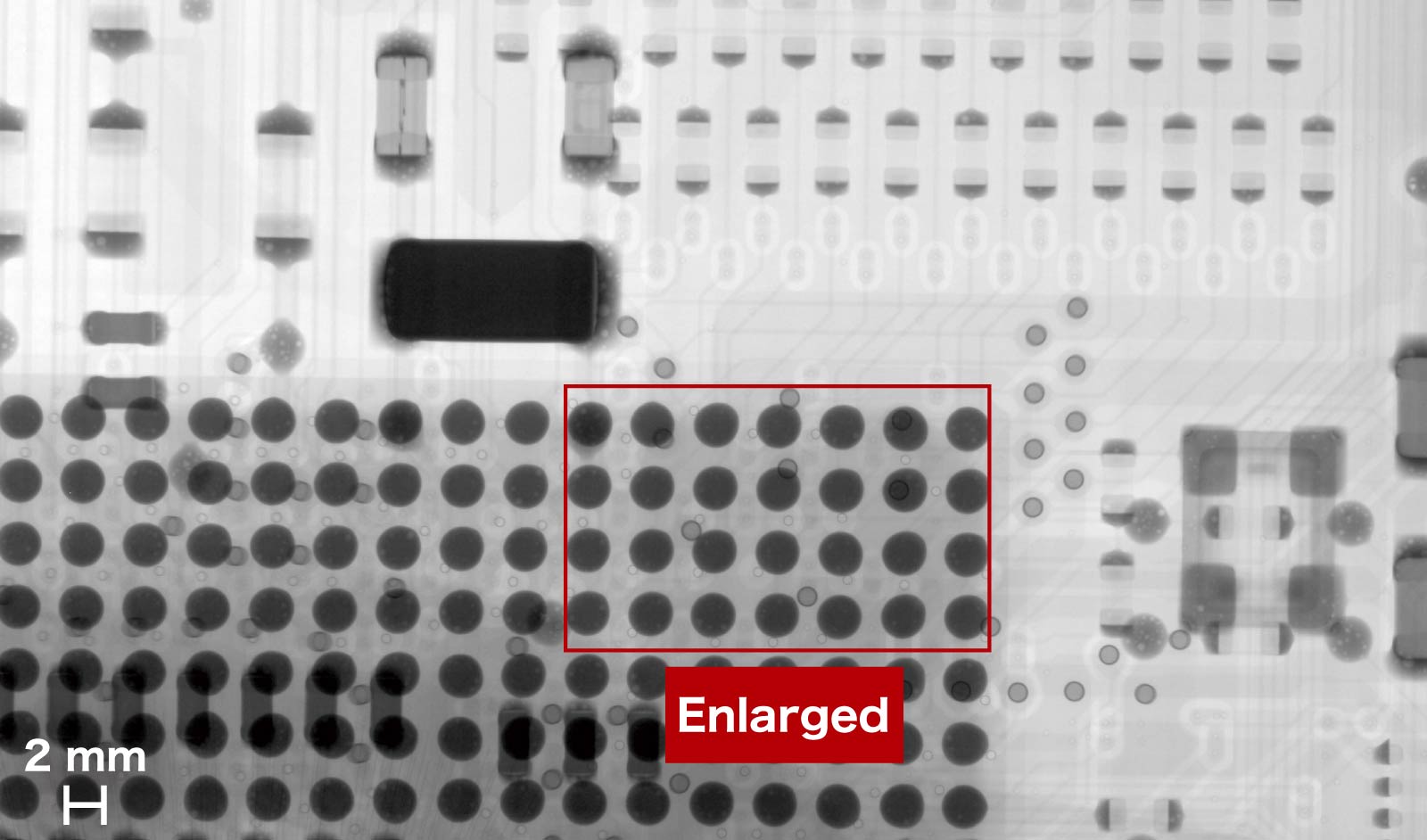

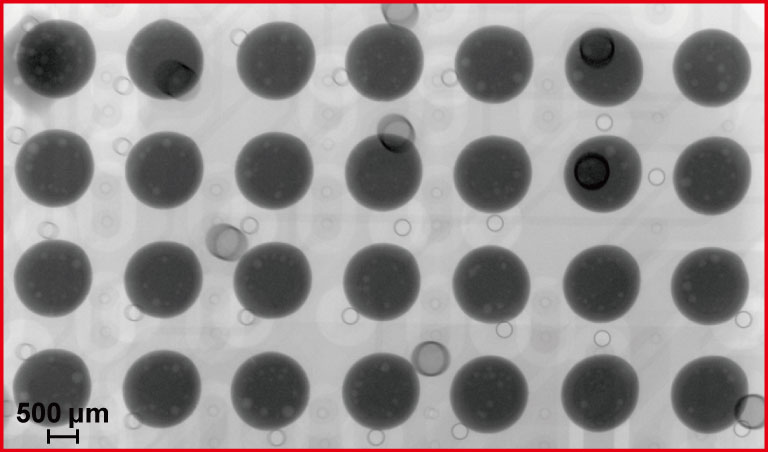

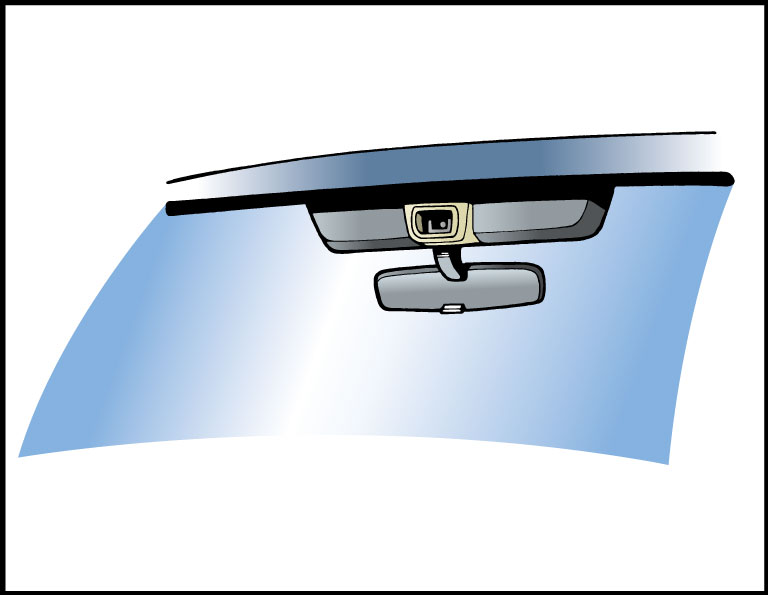

Driving support system (camera unit)

Multiple voids (bubbles) can be observed.

Driving support system (camera unit)

X-ray source: L9181-02
Tube voltage: 130 kV
Geometric magnification: 1.5 times / 6.4 times

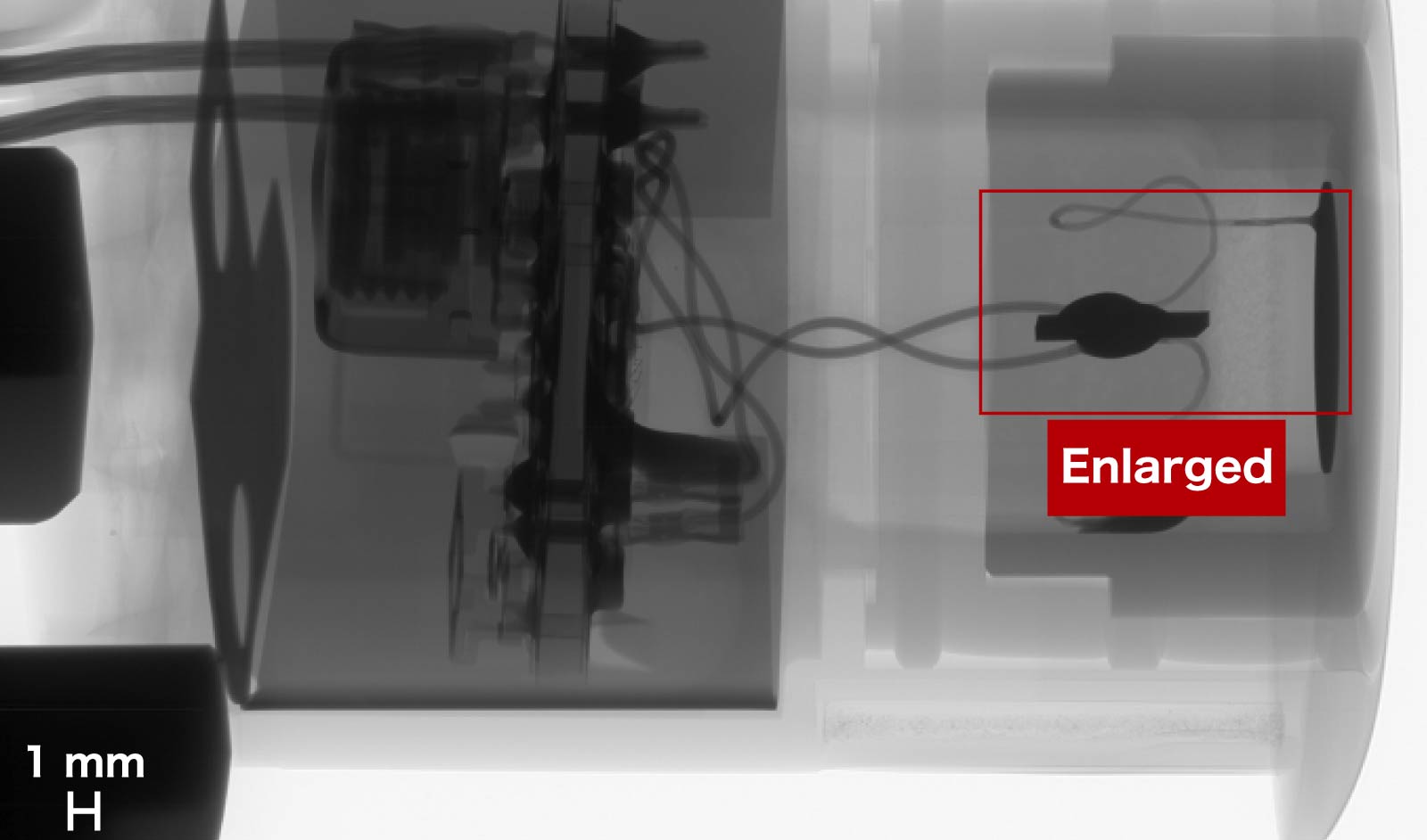

Driving support system (obstacle detection sensor)

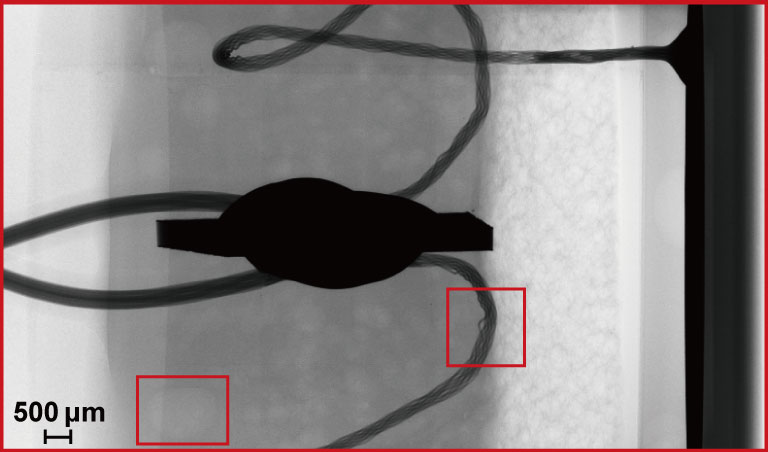

Wire twisting and voids (air bubbles) in the filler can be observed.

Driving support system (obstacle detection sensor)

X-ray source: L10321
Tube voltage: 90 kV
Geometric magnification: 4.00 times / 10.0 times

Resin pellet material

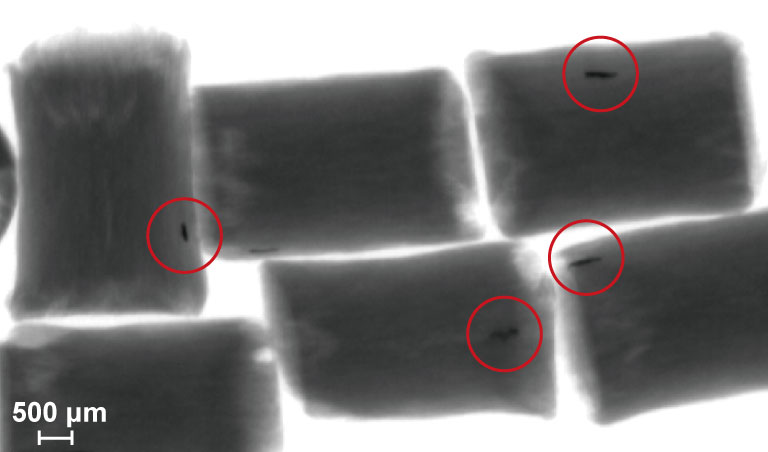

Foreign metal pieces in the resin pellet material can be observed.

X-ray source: L9181-05
Tube voltage: 40 kV

Detector: C12300-321

Geometric magnification: 4.6 times

Transport speed: 20 mm/s

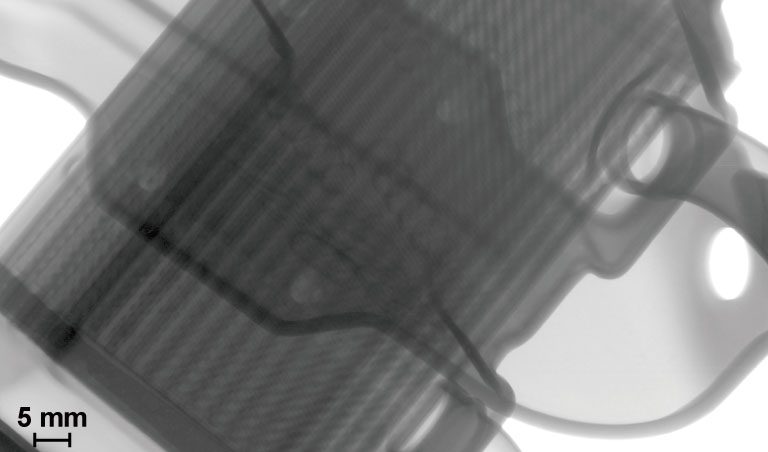

Engine parts (EGR valve)

The internal structure of the EGR valve can be observed.

X-ray source: L14351-02
Tube voltage: 180 kV
Geomtric magnification: 1.38 times

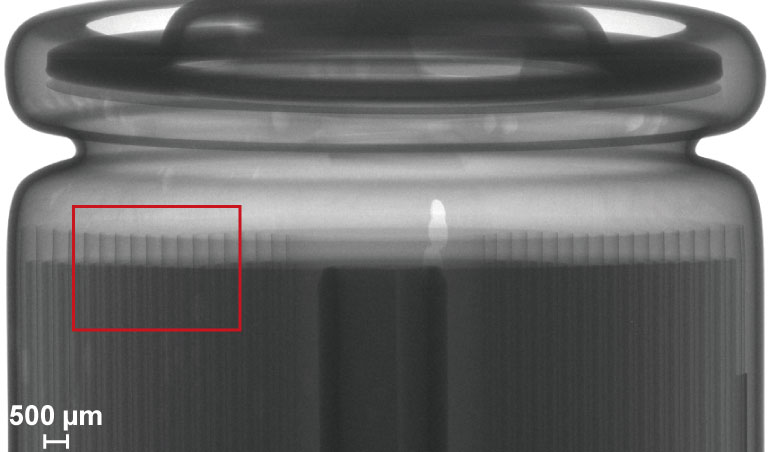

Lithium-ion battery

Gap inspection between stacked anode and cathode can be performed.

X-ray source: L9181-05
Tube voltage: 100 kV
Geometric magnification: 3.33 times

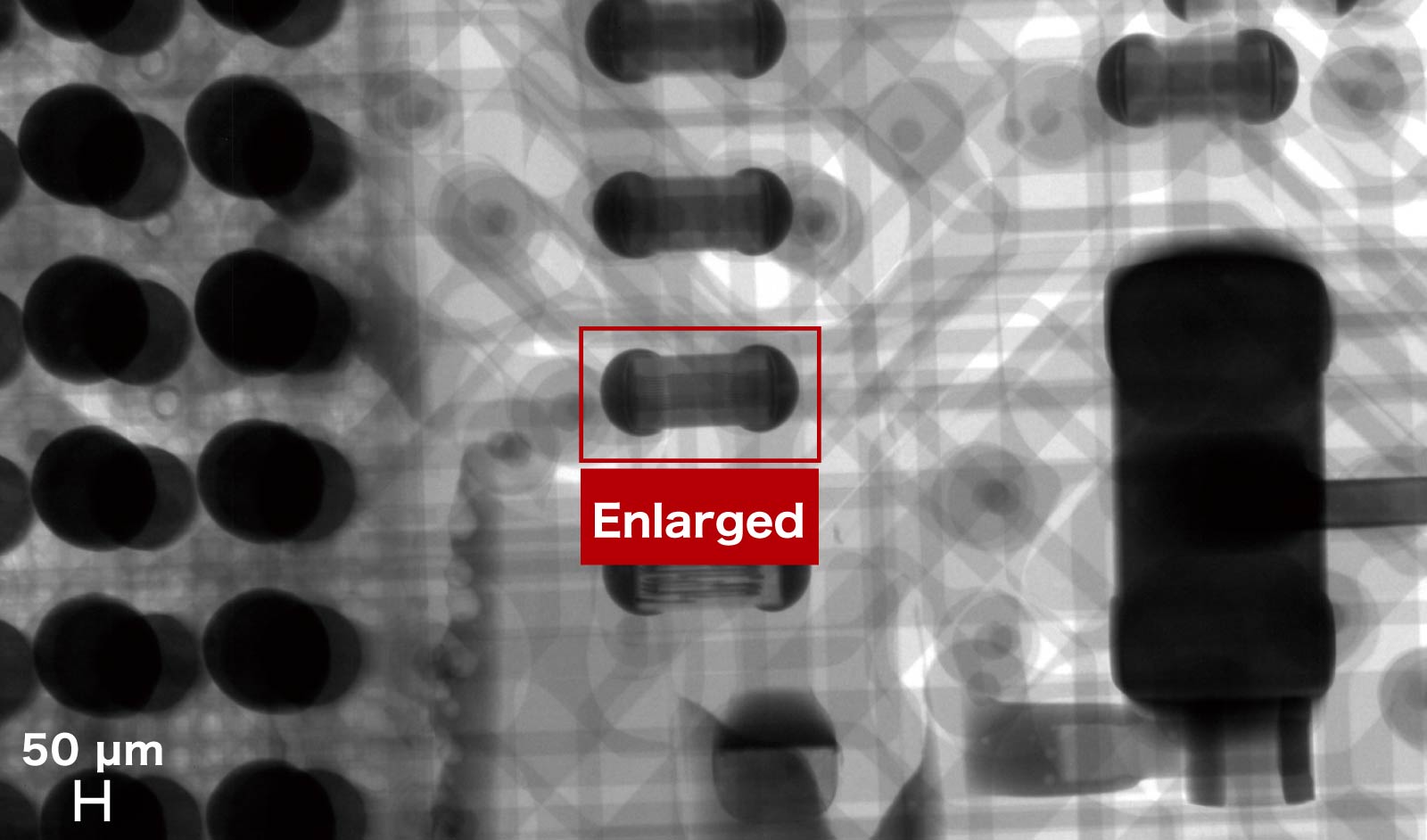

Smartphone circuit board

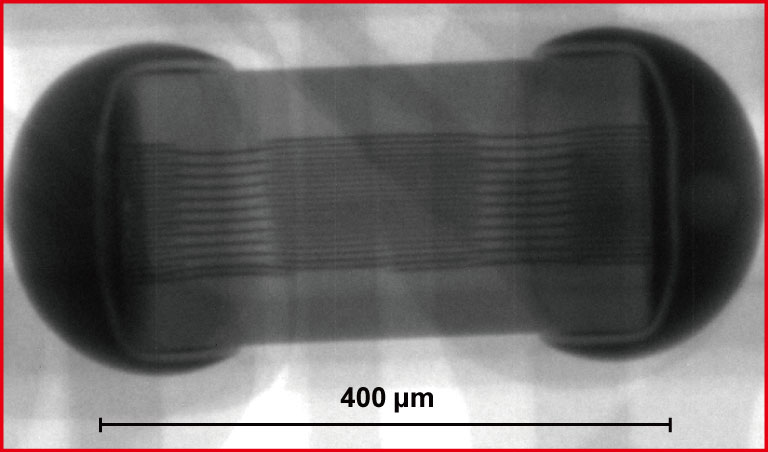

Internal structure of a multilayer ceramic capacitor (0402 size) can be observed.

Smartphone circuit board

X-ray source: L12531-01
Tube voltage: 60 kV
Geometric magnification : 44.4 times / 266 times
