DP-type socket assembly

C13002-01

The C13002-0x is a high voltage power supply socket assembly for 51 mm (2 inch), 76 mm (3 inch) diameter head-on photomultiplier tubes with 8 stage dynode, incorporating a regulated high voltage power supply and an active voltage divider. It enables simple yet stable photomultiplier tube operations with extended DC output linearity by only supplying +15 V and 0 V to +6 V for high voltage adjustments.

Type High Voltage Power Supply Socket Assembly (DP type)
Applicable PMT 8-stage dynode Head-on type
Input Voltage +15 V +/-1 V
Max. Input Voltage 18 V
Max. Input Current 60 mA
[PMT] Linear DC Output Current Min. 100 μA
[PMT] Anode Ripple Noise Typ. 0.5 mVp-p
[HV Power Supply] Output Voltage Range 0 V to -1500 V
[HV Power Supply] Recommended Output Voltage Range -200 V to -1500 V
[HV Power Supply] Line Regulation Against ±1 V Input Charge Typ. +/-0.01 %
[HV Power Supply] Output Voltage Control Control voltage (0 V to +6 V) or potentiometer (50 kΩ)
[HV Power Supply] Recommended Control Voltage Range +0.8 V to +6 V
[HV Power Supply] Controll Voltage Input Impedance 100 kΩ
[HV Power Supply] Temperature Coefficient Typ. +/-0.01 %/℃
Operating Ambient Temperature 0 ℃ to +45 ℃
Storage Temperature -15 ℃ to +60 ℃
Weight Typ. 122 g

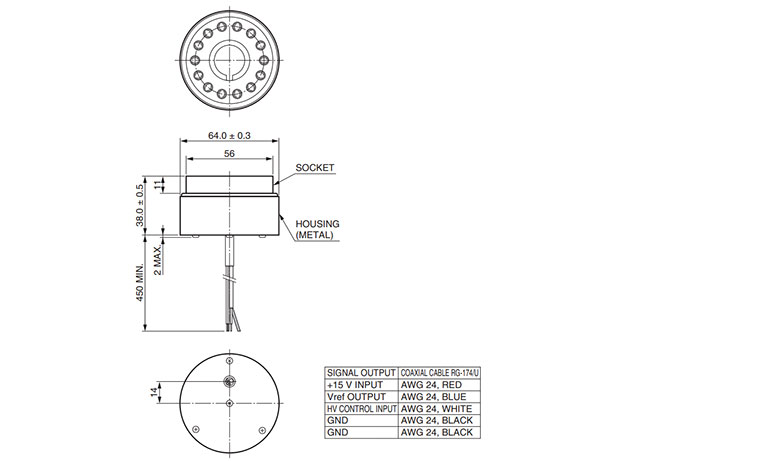

Dimensional outline (Unit: mm)
