Photomultiplier tube

R6237

76 mm x 76 mm Rectangular, Head-on type, Bialkali photocathode, Spectral response : 300 nm to 650 nm), for Gamma camera

Type Special envelope type
Photocathode Area Shape Square
Photocathode Area Size 70 mm x 70 mm
Wavelength (Short) 300 nm
Wavelength (Long) 650 nm
Wavelength (Peak) 420 nm
Spectral Response Curve Code 400 K
Photocathode Material Bialkali
Window Material Borosilicate glass
Dynode Structure Box-and-grid + Linear-focused
Dynode Stages 8
[Max. Rating] Anode to Cathode Voltage 1500 V
[Max. Rating] Average Anode Current 0.1 mA
Anode to Cathode Supply Voltage 1000 V
[Cathode] Luminous Sensitivity Min. 80 μA/lm
[Cathode] Luminous Sensitivity Typ. 110 μA/lm
[Cathode] Blue Sensitivity Index (CS 5-58) Typ. 12
[Cathode] Radiant Sensitivity Typ. 95 mA/W
[Anode] Luminous Sensitivity Min. 3 A/lm
[Anode] Luminous Sensitivity Typ. 30 A/lm
[Anode] Radiant Sensitivity Typ. 2.6 x 104 A/W
[Anode] Gain Typ. 2.7 x 105
[Anode] Dark Current (after 30min.) Typ. 2 nA
[Anode] Dark Current (after 30min.) Max. 20 nA
[Time Response] Rise Time Typ. 9.5 ns
[Time Response] Transit Time Typ. 52 ns

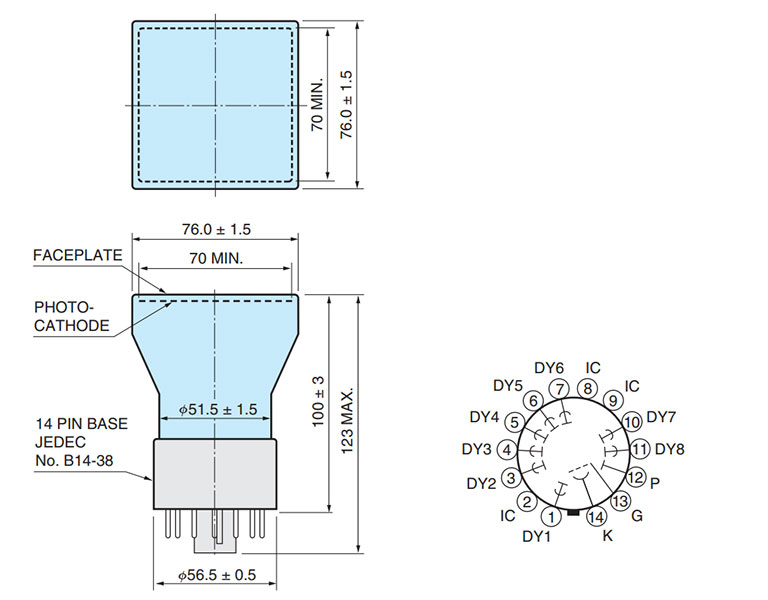

Dimensional outline (Unit: mm)
