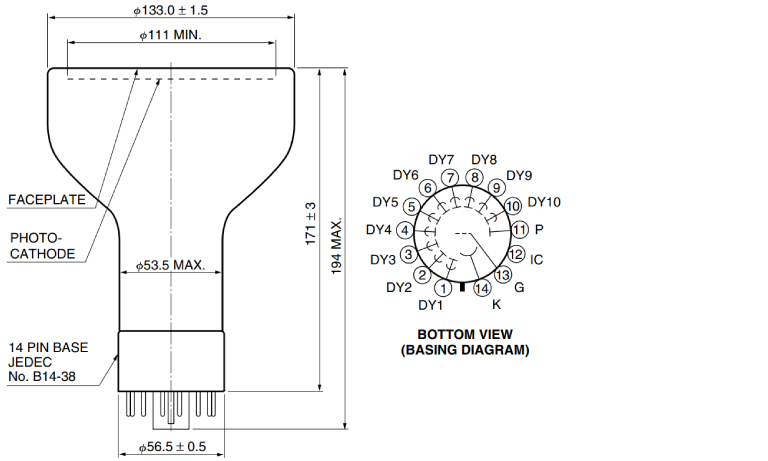

|Tube Size||Dia.127 mm|
|Photocathode Area Shape||Round|
|Photocathode Area Size||Dia.111 mm|
|Wavelength (Short)||300 nm|
|Wavelength (Long)||850 nm|
|Wavelength (Peak)||420 nm|
|Spectral Response Curve Code||500K|
|Window Material||Borosilicate glass|
|Dynode Structure||Venetian blind|
|[Max. Rating] Anode to Cathode Voltage||2000 V|
|[Max. Rating] Average Anode Current||0.1 mA|
|Anode to Cathode Supply Voltage||1500 V|
|[Cathode] Luminous Sensitivity Min.||100 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||150 μA/lm|
|[Cathode] Red/White Ratio (R-68) Typ.||0.2|
|[Cathode] Radiant Sensitivity Typ.||64 mA/W|
|[Anode] Luminous Sensitivity Min.||10 A/lm|
|[Anode] Luminous Sensitivity Typ.||50 A/lm|
|[Anode] Radiant Sensitivity Typ.||2.1 x 104 A/W|
|[Anode] Gain Typ.||3.3 x 105|
|[Anode] Dark Current (after 30min.) Typ.||30 nA|
|[Anode] Dark Current (after 30min.) Max.||150 nA|
|[Time Response] Rise Time Typ.||15 ns|
|[Time Response] Transit Time Typ.||82 ns|
