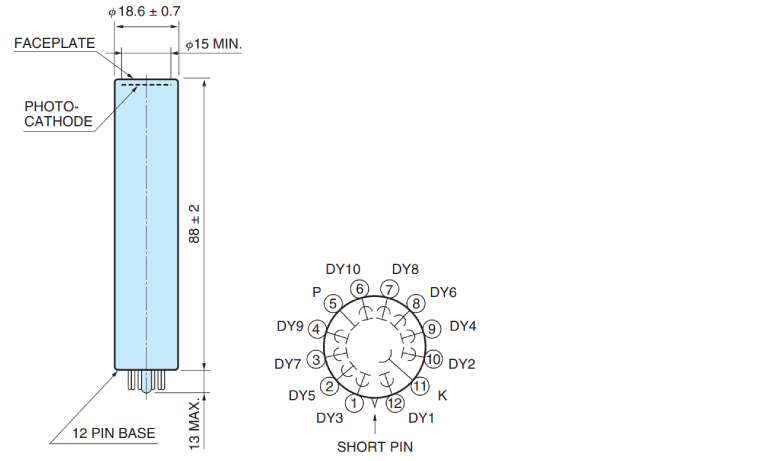

|Tube Size||Dia.19 mm|
|Photocathode Area Shape||Round|
|Photocathode Area Size||Dia.15 mm|
|Wavelength (Short)||300 nm|
|Wavelength (Long)||850 nm|
|Wavelength (Peak)||420 nm|
|Spectral Response Curve Code||500K|
|Window Material||Borosilicate glass|
|[Max. Rating] Anode to Cathode Voltage||1250 V|
|[Max. Rating] Average Anode Current||0.1 mA|
|Anode to Cathode Supply Voltage||1000 V|
|[Cathode] Luminous Sensitivity Min.||80 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||120 μA/lm|
|[Cathode] Red/White Ratio (R-68) Typ.||0.2|
|[Cathode] Radiant Sensitivity Typ.||51 mA/W|
|[Anode] Luminous Sensitivity Min.||30 A/lm|
|[Anode] Luminous Sensitivity Typ.||120 A/lm|
|[Anode] Radiant Sensitivity Typ.||5.1 x 104 A/W|
|[Anode] Gain Typ.||1.0 x 106|
|[Anode] Dark Current (after 30min.) Typ.||4 nA|
|[Anode] Dark Current (after 30min.) Max.||20 nA|
|[Time Response] Rise Time Typ.||2.5 ns|
|[Time Response] Transit Time Typ.||27 ns|
