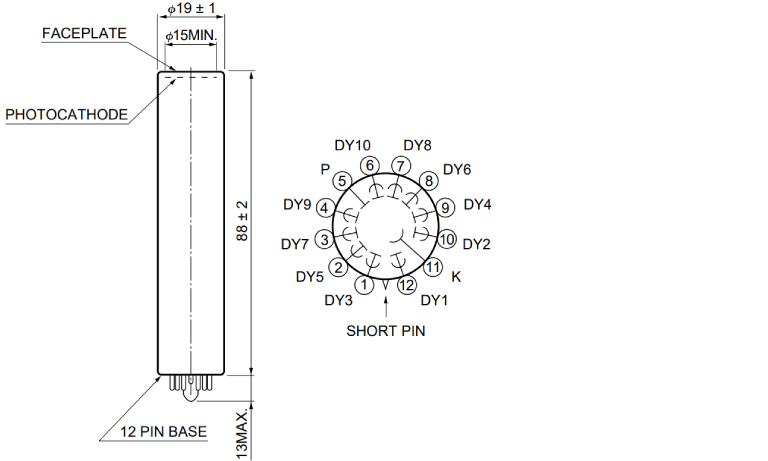

|Tube Size||Dia.19 mm|
|Photocathode Area Shape||Round|
|Photocathode Area Size||Dia.15 mm|
|Wavelength (Short)||160 nm|
|Wavelength (Long)||320 nm|
|Wavelength (Peak)||240 nm|
|Spectral Response Curve Code||200S|
|[Max. Rating] Anode to Cathode Voltage||1250 V|
|[Max. Rating] Average Anode Current||0.01 mA|
|Anode to Cathode Supply Voltage||1000 V|
|[Cathode] Radiant Sensitivity Typ.||28 (at 254 nm) mA/W|
|[Anode] Luminous Sensitivity Min.||4.0 x 103 (A/W, at 254 nm) A/lm|
|[Anode] Radiant Sensitivity Typ.||1.0 x 104 A/W|
|[Anode] Gain Typ.||3.6 x 105|
|[Anode] Dark Current (after 30min.) Typ.||0.3 nA|
|[Anode] Dark Current (after 30min.) Max.||0.5 nA|
|[Time Response] Rise Time Typ.||2.5 ns|
|[Time Response] Transit Time Typ.||27 ns|
