Application note | Poropare™ Transfer plate
Poropare offers a novel method called “transferring” for sample preparation. For example, samples difficult to cut into thin sections, such as plants or surface contamination, can now be measured by making the measurement surface come into actual contact with the active surface of Poropare.

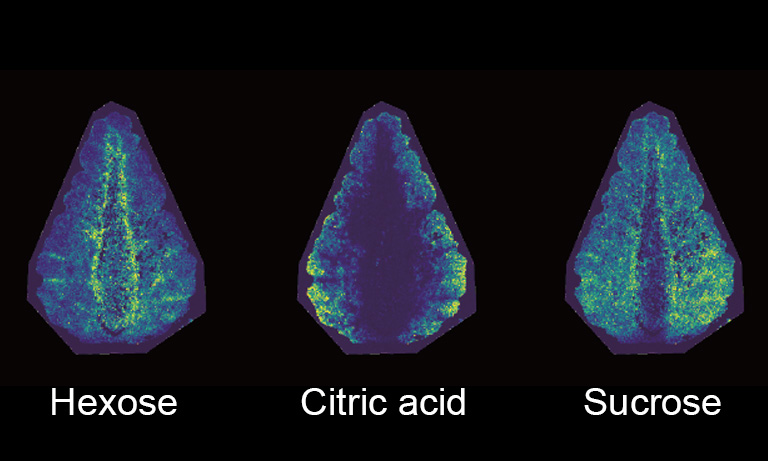

After measuring a strawberry cross-section using Poropare, the results clearly show the localization of metabolites such as sugar. Due to the high water absorbency of Poropare, there is almost no delocalization, which can be caused by moisture bleeding. Even samples that are not thin and flat, such as flowers and leaves, can be pressed onto Poropare to transfer an image of the entire surface. Surface contamination can also be selectively sampled by transferring, allowing imaging without background signals of the base material. The robustness of Poropare achieves these approaches.
Imaging of fruits

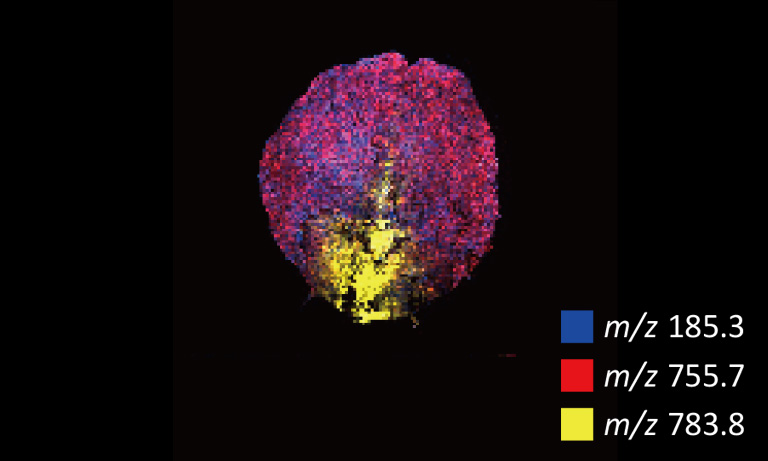

Imaging of flower petals

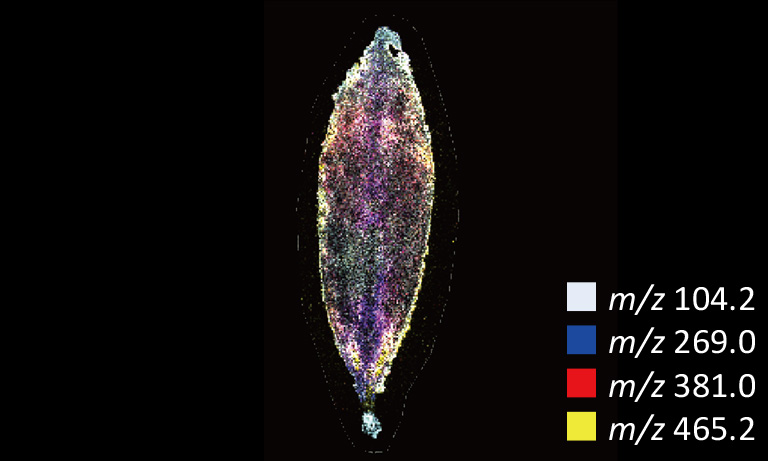

Imaging of leaf surface
Imaging of film surface contamination
Application example
| Transfer sampling type | |||
|---|---|---|---|
| Place |  |
Imaging of strawberry without matrix | Application of transfer sampling to high-moisture-content samples difficult to prepare thin section |
| Imaging of strawberry with matrix | Apply the matrix after transfer sampling | ||
| Press |  |
Imaging of surface contamination | Apply transfer sampling to surface components such as stains that are difficult to prepare thin section or collect |
| Dissolve and transfer |  |

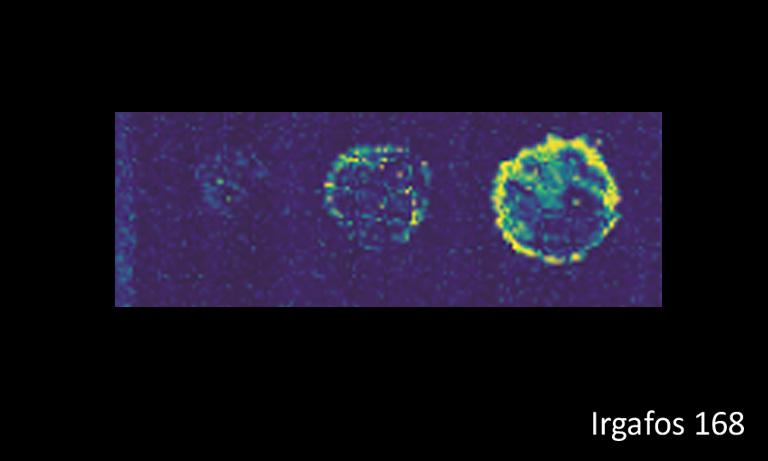

Analysis of additive UV degradation | High-sensitivity transfer sampling of additives in film using solvent-impregnated Poropare |
| Transfer only surface |  |
Analysis of cosmetic functionality | Transfer sampling only the surface coating to achieve imaging with minimal BG components |
| Crush |  |
Imaging of leaf components | Crush the leaf onto Poropare, which sample is bending sample itself and is difficult to prepare thin section |
| Analysis of pesticide translocation and penetration | High-sensitivity analysis of leaf surface and internal components via pressing and crushing | ||
