This is a 800 nm band near-infrared Si APD that can operate stably over a wide temperature range. This is suitable for applications such as optical rangefinders and FSO (free space optics).
|Type||Near infrared type
(Low temperature coefficient)
|Photosensitive area||φ1 mm|
|Peak sensitivity wavelength (typ.)||800 nm|
|Spectral response range||400 to 1000 nm|

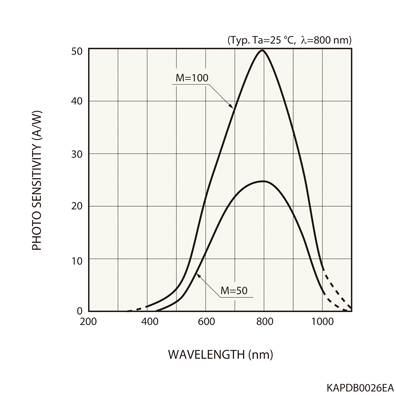

|Photosensitivity (typ.)||0.5 A/W|
|Dark current (max.)||2 nA|
|Cutoff frequency (typ.)||600 MHz|
|Terminal capacitance (typ.)||6 pF|
|Breakdown voltage (typ.)||200 V|
|Temperature coefficient of breakdown voltage (typ.)||0.4 V/℃|
|Measurement condition||Typ. Ta=25 ℃, unless otherwise noted,
Photosensitivity: λ=800 nm, M=1
