Mass spectrometry imaging

Mass spectrometry imaging is an analytical technique that visualizes which molecules are present and where they are located. One of its key features is the ability to simultaneously image multiple molecular species, and it is expected to be utilized in various fields. This page provides an explanation of the principles of mass spectrometry imaging, its applications, considerations, and basic technical information related to sample preparation for those involved in analysis.

Hamamatsu Photonics has developed Poropare, a sample preparation product for transfer sampling in mass spectrometry imaging. Through Poropare, we aim to make mass spectrometry imaging a more accessible and user-friendly technology and to expand its application across a wide range of fields.

Principles of mass spectrometry imaging

Mass spectrometry (MS) has evolved as a foundational analytical technology that combines exceptional selectivity based on the mass-to-charge ratio (m/z) of molecular species with high detection sensitivity, enabling the simultaneous analysis of numerous components within complex samples. Mass spectrometry imaging (MSI) is an innovative technique that leverages the characteristics of mass spectrometry to visualize the spatial distribution of components as an image. This spatial information cannot usually be obtained with LC/MS or GC/MS, which require sample extraction, giving MSI one of its major advantages over these techniques. Generally, MSI analysis is carried out in the following steps.

Step 1: Desorption and ionization

The sample is locally desorbed and ionized, and introduced directly into a mass spectrometer without chromatography to obtain a mass spectrum (a plot of the mass-to-charge ratio (m/z) and its intensity). By scanning this localized process across the entire sample, a dataset containing a mass spectrum for each pixel is obtained.

Step 2: Imaging

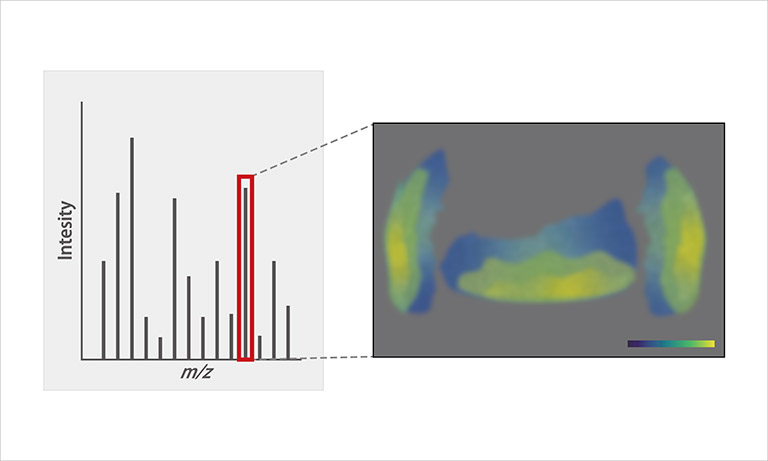

The data is converted into an image using dedicated MSI software. By selecting an m/z and visualizing its intensity as a color map, an ion image can be generated. For each selected m/z value, a different ion image is generated.　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　

Step 3: Analysis

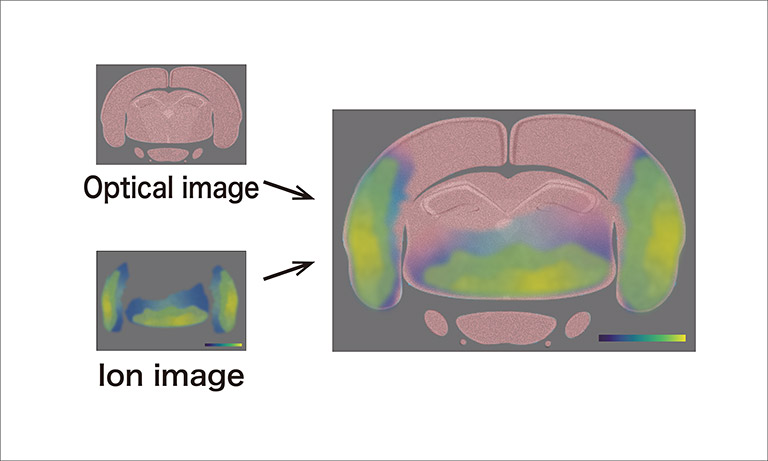

By combining the optical image of the sample with the ion image, it is possible to visually analyze where the ion (component) of interest is detected.

The MSI function is available as an option for mass spectrometers, and the results obtained depend on the instrument specifications. For instance, if an instrument has high mass resolution, the MSI data can also be acquired with similarly high mass resolution. In addition, MSI typically provides ion images (molecular distributions) at a spatial resolution ranging from a few to several tens of micrometers. While the measurement parameters that contribute to resolution vary depending on the method, in the case of laser desorption/ionization, the laser irradiation diameter and raster pitch are adjusted according to the purpose.

Features and challenges of mass spectrometry imaging

Features

Intuitive understanding through images
Ion images provide information in an easily visualized form. Although it is challenging for non-experts to interpret mass spectra, ion images can facilitate understanding. Large-area imaging such as at the scale of a microscope slide allows for intuitive grasp of component distribution at a scale close to that of the naked eye.
Simultaneous imaging of multiple components
In principle, MSI measurements do not require the use of labeling reagents to detect specific molecules. Furthermore, as described above, since mass spectral data is stored for each pixel, imaging of multiple components can be achieved in a single measurement. This is useful for evaluating the spatial correlation between a specific component and other components.
High versatility
By utilizing diverse mass spectrometry techniques, various types of imaging data can be acquired. For example, the detection of trace components and the separation of structural isomers using MS/MS or ion mobility can also be applied to MSI. Additionally, the ion images obtained may vary depending on the ionization method used. These features are highly effective for multimodal imaging analysis.

Challenges

High initial cost
In addition to a mass spectrometer, MSI requires sample preparation equipment (such as a cryostat), which tends to result in higher initial costs than other imaging techniques. This is also one of the barriers to the wider adoption of MSI.
Trade-off between resolution and sensitivity
As the pixel size decreases, the number of ions also tends to decrease, which leads to a decline in sensitivity. When resolution is set to prioritize sensitivity (typically around 50 μm), it may become difficult to compare the results with microscope or SEM images. In recent years, efforts have been made to improve this through enhancements in mass spectrometer performance and data processing.
Limitations in quantitative analysis
Due to the nature of MSI, where the sample itself is heterogeneous, quantitative analysis remains challenging. Variations in sample surface irregularities and tissue characteristics can affect signal intensity. Particular caution is required when interpreting signal intensity and comparing signal intensity between samples. In recent years, measurement protocols and analytical approaches that take such variability into account have been proposed.

Key technologies used in MSI

MALDI

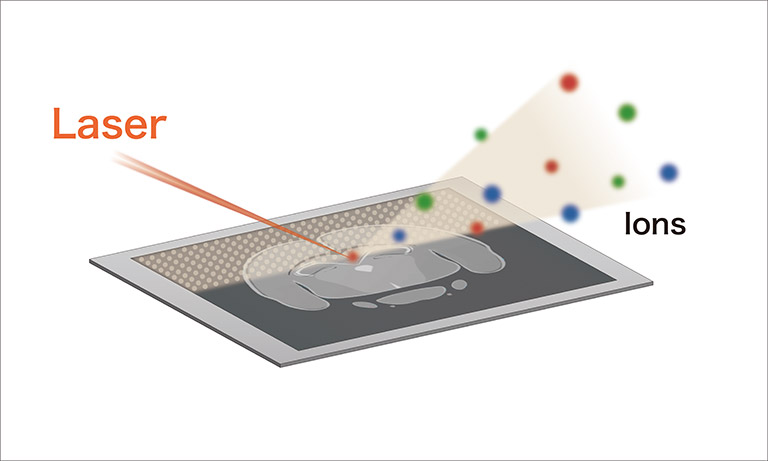

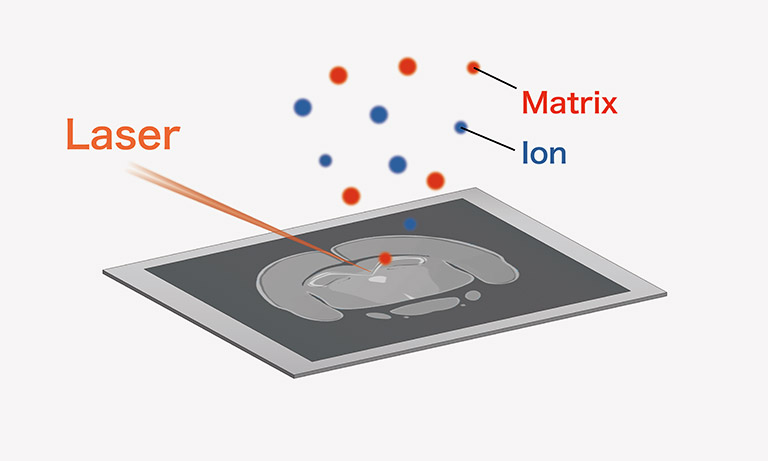

Matrix-Assisted Laser Desorption Ionization (MALDI) is currently the most widely used ionization method in MSI. A matrix, a reagent, which assists ionization, is applied to the surface of a thin section of a sample, and a UV laser is locally irradiated. The matrix absorbs the laser and facilitates the desorption and ionization of the sample, enabling ionization without significant fragmentation. MALDI is commonly combined with a time-of-flight (TOF) mass spectrometer or a quadrupole time-of-flight (QTOF) mass spectrometer.

DESI

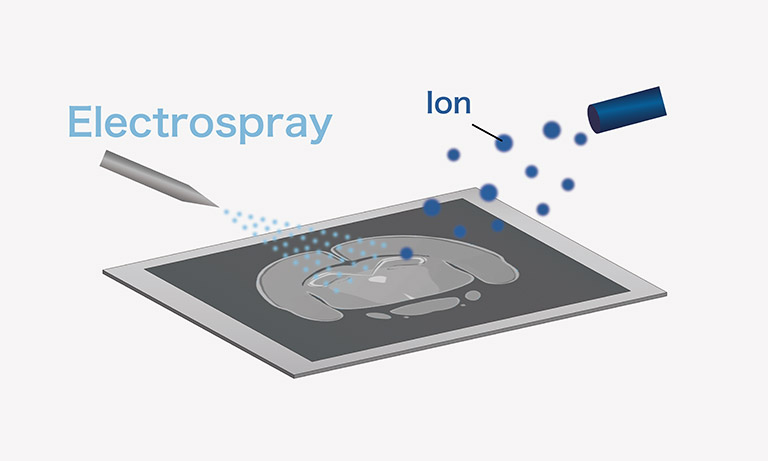

Desorption Electrospray Ionization (DESI) is a technique based on electrospray ionization to extract, desorb, and ionize sample components by spraying charged droplets. It differs from MALDI in many fundamental aspects and is rapidly gaining popularity as an alternative MSI modality . While it is commonly combined with QTOF, high-sensitivity target imaging using a triple-quadrupole (TQ) mass spectrometer has also been implemented recently.

TOF-SIMS

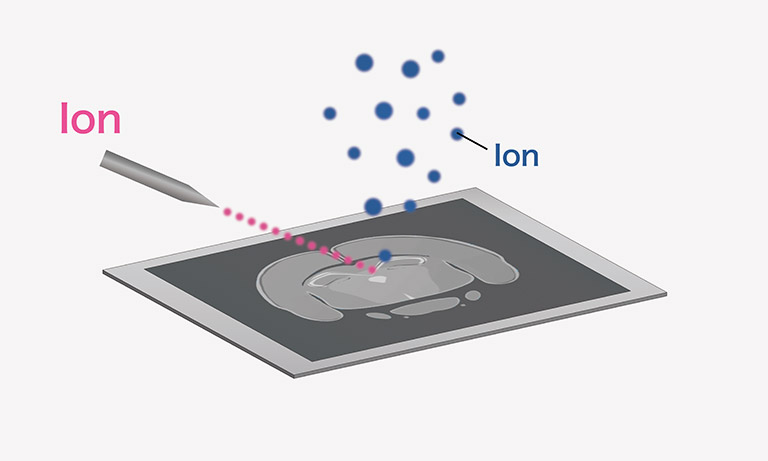

Time-of-flight secondary ion mass spectrometry (TOF-SIMS) generates mass spectra by irradiating a sample surface with primary ions and introducing the sputtered secondary ions into a TOF-MS. It is characterized by submicron-level spatial resolution and high surface sensitivity and is a widely used technique in the field of surface analysis.

Although it tends to produce more ion fragmentation than MALDI and DESI, cluster ion sources that are capable of soft ionization have been developed in recent years.

LA-ICP-MS

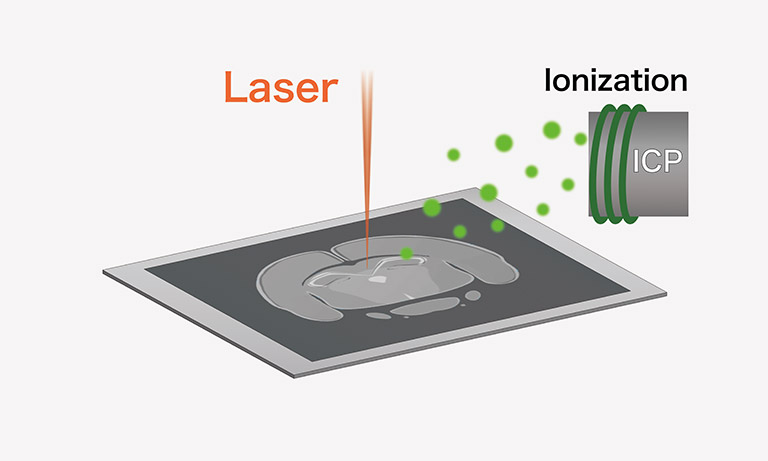

Laser ablation inductively coupled plasma mass spectrometry (LA-ICP-MS) irradiates the sample surface with a laser beam, and introduces the ablated sample into an ICP-MS. As the sample is decomposed into the atomic state within the ICP-MS, images of each element can be obtained. In biosciences, it is used for the analysis of trace metal elements in biological samples.

Sample preparation required for MSI

Thin sectioning

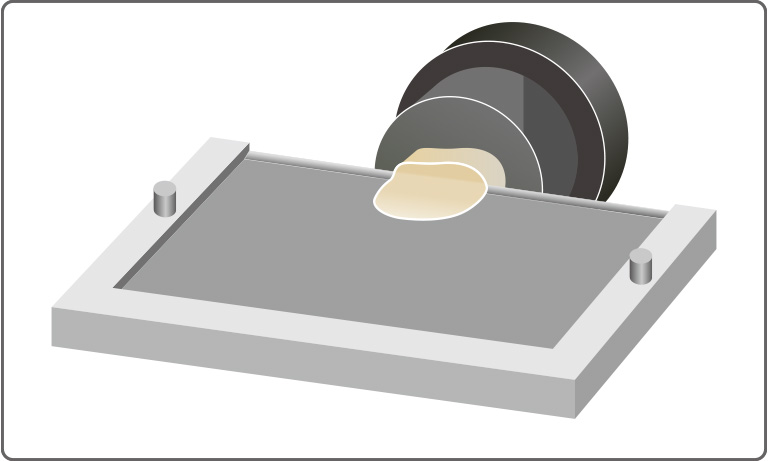

One of the sample preparations required for MSI is thin sectioning. This refers to the process of slicing a frozen sample into sections approximately 5 μm to 20 μm thick using a cryostat. It requires advanced technical skill as it is necessary to produce uniform thin sections without causing delocalization of sample components.

Examples of challenges in thin sectioning

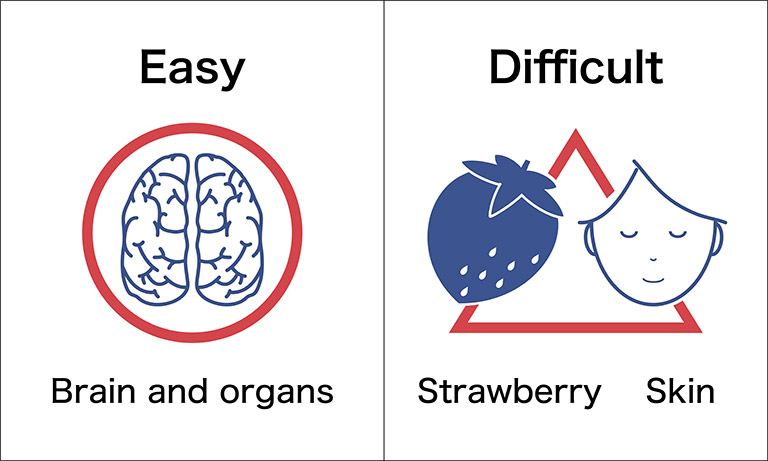

Depending on the sample, thin sectioning can be difficult due to properties such as fragility, hardness, or thinness. As measurements cannot be performed without thin sectioning, this process limits the applicability of MSI. However, the application of MSI is gradually expanding by using alternative sampling methods (such as transfer) that can replace thin sectioning.

Matrix application

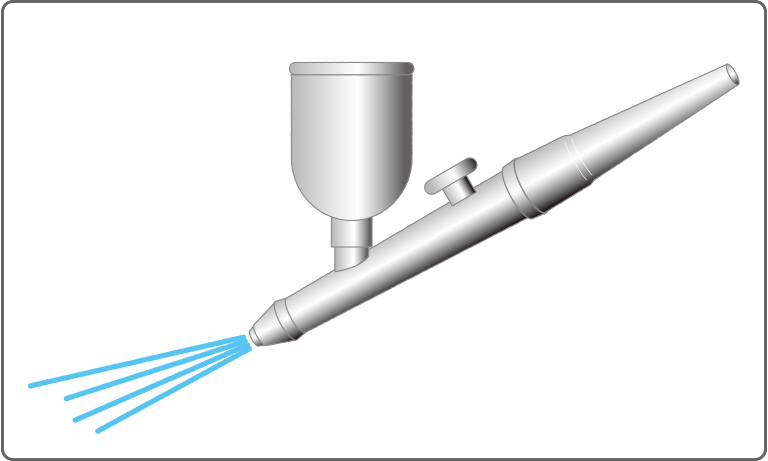

When MSI is performed using MALDI, matrix application is required in addition to thin sectioning. This process also requires specialized knowledge and experience, such as selecting a matrix compound appropriate for the sample and uniformly applying it onto the sample surface. Dedicated matrix application equipment is also available to make this easier.

Our efforts to expand the range of MSI applications

Poropare™ transfer plate

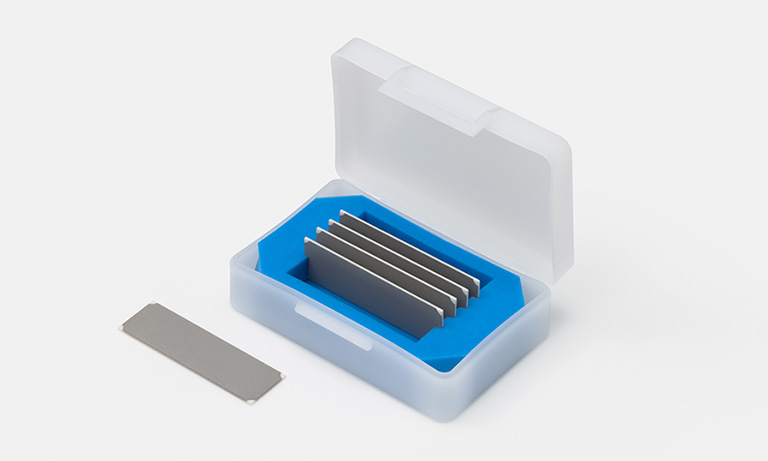

Poropare, developed by Hamamatsu Photonics, is a sample preparation support product for mass spectrometry imaging featuring a robust porous structure. By utilizing a technique called transfer sampling, which leverages the features of this product, MSI can be performed without the conventionally required thin sectioning process. This allows for MSI analysis to be applied to a wider range of samples, including those that were previously excluded from the application of MSI due to the difficulty of thin sectioning.

In addition, Poropare for MALDI is pre-coated with an ionization-assisting layer on its plate surface, enabling matrix-free analysis. This significantly simplifies sample preparation, lowers the barrier to performing MSI, and eliminates matrix-derived background noise, contributing to improvement in signal-to-noise (S/N) ratio, especially in the analysis of low-molecular-weight compounds. On the other hand, for the analysis of components that are difficult to detect under matrix-free conditions, Poropare can also be used in combination with a matrix.

*Poropare is a registered trademark of Hamamatsu Photonics K.K.

Related application

Component Analysis of Crops

Component analysis of crops plays an extremely important role in the research and development of crop varieties as well as pesticides and fertilizers. Elucidating the chemical components contained in crops and their physiological functions is expected to promote research and development in areas such as variety improvement, the development of pesticides and fertilizers and the optimization of application conditions, thereby contributing to the improvement of crop productivity and quality. A wide range of analytical methods are used for this purpose, including spectroscopic methods and mass spectrometry. In addition to the development of analytical instruments, sample preparation processes such as extraction and separation have become increasingly sophisticated over the years, enabling the highly sensitive detection and quantitative analysis of trace components.
