Selection guide | Photomultiplier tubes (PMTs)

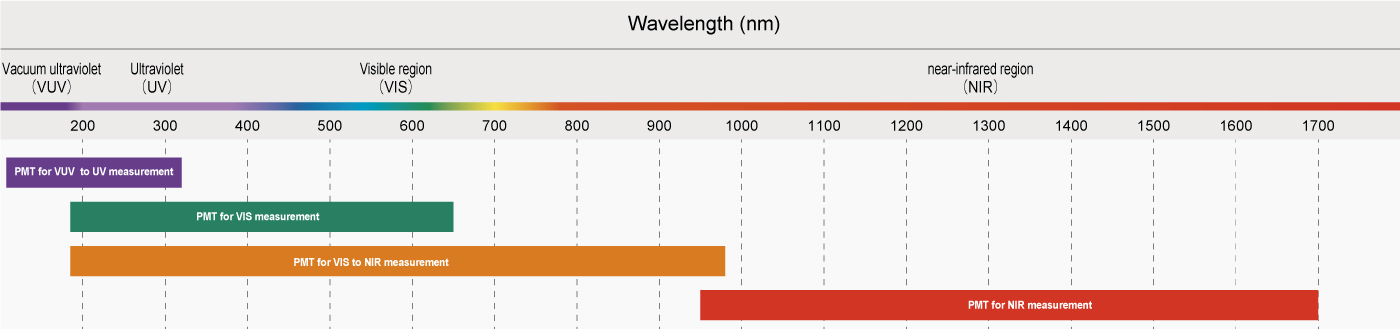

Vacuum ultraviolet (VUV) to ultraviolet (UV)

These photomultiplier tubes have high sensitivity in the ultraviolet region.
When selecting a photomultiplier tube it is essential to select a light input window made from glass material that passes ultraviolet light.

Topics


Solar-blind characteristics

Photomultiplier tubes with so-called ’solar-blind‘ characteristics have little sensitivity to wavelengths longer than 200 to 300 nm and so are mainly used for VUV to UV measurements in vacuum environments. Their window materials are MgF2 crystals and quartz glass.

Recommended photocathodes


· Cs-I (cesium iodide) photocathode
· Cs-Te (cesium telluride) photocathode

Applications


· Emission spectroscopy
· Academic research
· Plasma monitoring
· Atomic fluorescence spectrometry

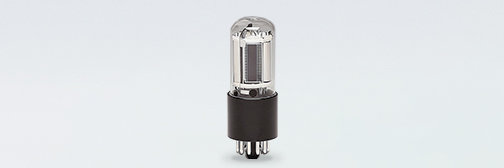

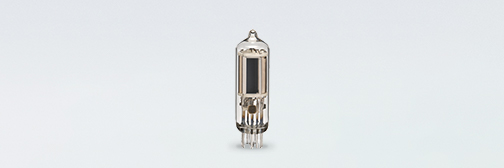

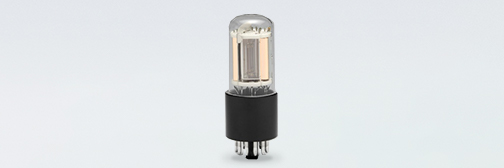

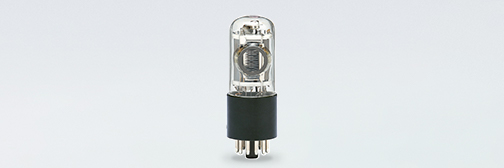

Recommended side-on photomultiplier tubes

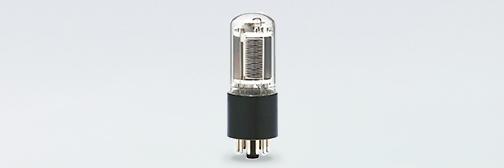

Effective area:8 mm x 24 mm

  • Peak sensitivity wavelength : 130 nm
  • Spectral response : 115-195 nm

  • Peak sensitivity wavelength : 200 nm
  • Spectral response : 115-320 nm

  • Peak sensitivity wavelength : 230 nm
  • Spectral response : 160-320 nm

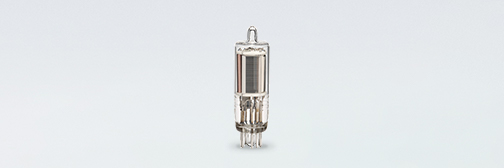

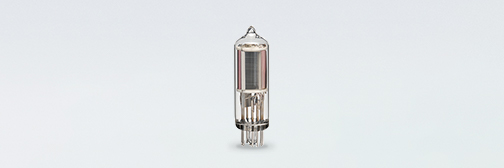

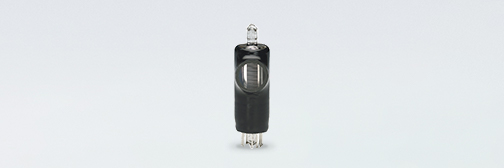

Effective area:4 mm x 13 mm

  • Peak sensitivity wavelength : 130 nm
  • Spectral response : 115-195 nm

  • Peak sensitivity wavelength : 200 nm
  • Spectral response : 115-320 nm

  • Peak sensitivity wavelength : 230 nm
  • Spectral response : 160-320 nm

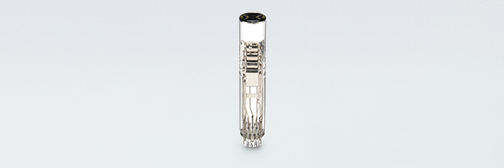

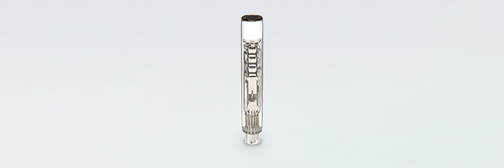

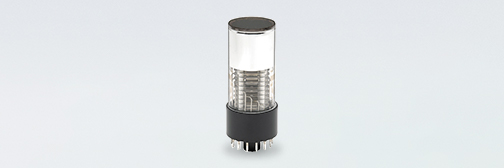

Recommended head-on photomultiplier tubes

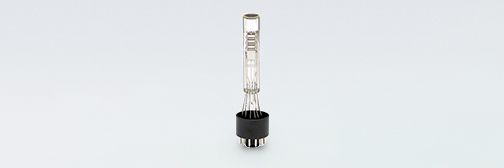

Tube diameter φ13 mm (Effective area : φ6 mm to φ10 mm)

  • Peak sensitivity wavelength : 140 nm
  • Spectral response : 115-200 nm

  • Peak sensitivity wavelength : 240 nm
  • Spectral response : 115-320 nm

  • Peak sensitivity wavelength : 240 nm
  • Spectral response : 160-320 nm

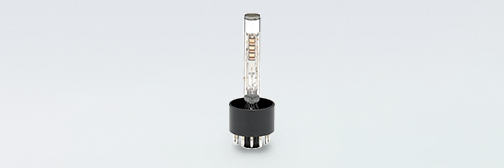

Tube diameter φ19 mm (Effective area : φ13 mm to φ15 mm)

  • Peak sensitivity wavelength : 140 nm
  • Spectral response : 115-200 nm

  • Peak sensitivity wavelength : 240 nm
  • Spectral response : 115-320 nm

  • Peak sensitivity wavelength : 240 nm
  • Spectral response : 160-320 nm

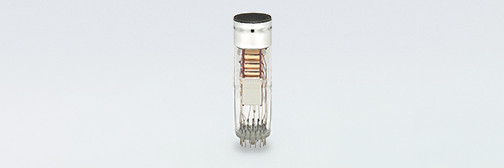

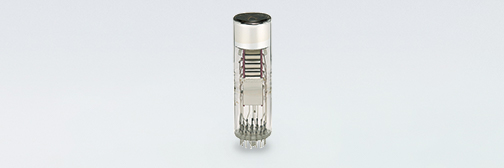

Tube diameter φ28 mm (Effective area : φ23 mm to φ25 mm)

  • Peak sensitivity wavelength : 140 nm
  • Spectral response : 115-200 nm

  • Peak sensitivity wavelength : 240 nm
  • Spectral response : 115-320 nm

  • Peak sensitivity wavelength : 240 nm
  • Spectral response : 160-320 nm

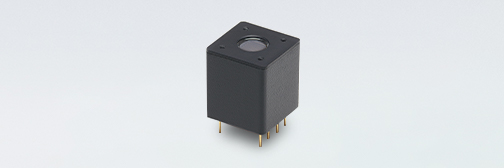

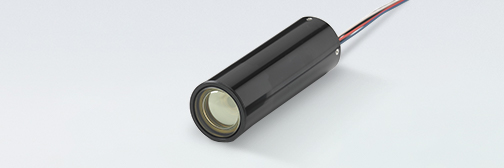

Recommended photomultiplier tube modules

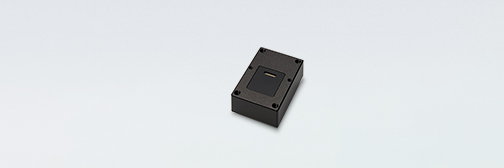

Current output PMT modules

  • Spectral response : 185-700 nm
  • +5 V input voltage
  • Settling time 10 s

  • Spectral response : 185-700 nm
  • +15 V input voltage
  • Settling time 0.2 s

  • Spectral response : 185-600 nm
  • +15 V input voltage
  • Settling time 0.2 s

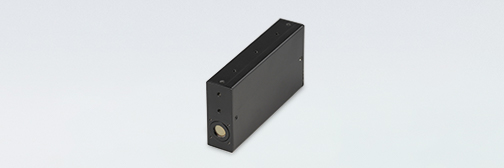

Voltage output PMT modules

  • Spectral response : 185-700 nm
  • +5 V input voltage
  • Settling time 10 s

  • Spectral response : 185-700 nm
  • +15 V input voltage
  • Settling time 0.2 s

Visible region (VIS)

The visible region includes wavelengths of light from about 350 nm to 750 nm that can be seen by the human eye.

Topics


Radiation measurement

The photomultiplier tube and NaI (sodium iodide) scintillator combination is one of the most common techniques for radiation measurement. Photomultiplier tubes with a semi-transparent photocathode are widely used since their sensitivity matches the emission spectrum of NaI scintillators near the 420 nm light wavelength. Some semi-transparent photocathodes can provide enhanced sensitivity on long wavelengths by minor modifications to the fabrication process.

Recommended photocathodes


•Bialkali photocathode
•Super-bialkali photocathode
•Ultra-bialkali photocathode
•Green sensitivity enhanced bialkali photocathode

Applications


•Emission spectroscopy
•Immunoassay analyzer
•SOx meter
•Radiation measurement

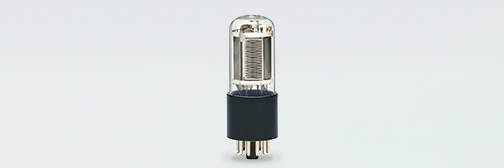

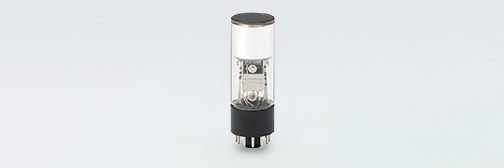

Recommended side-on photomultiplier tubes

Effective area : 8 mm x 24 mm

  • Peak sensitivity wavelength : 400 nm
  • Spectral response : 185-650 nm

  • Peak sensitivity wavelength : 410 nm
  • Spectral response : 185-710 nm

  • Peak sensitivity wavelength : 420 nm
  • Spectral response : 185-750 nm

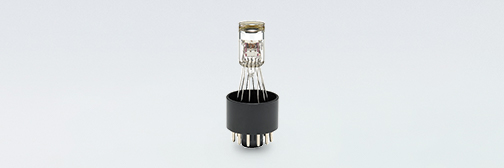

Effective area : 4 mm x 13 mm

  • Peak sensitivity wavelength : 340 nm
  • Spectral response : 185-650 nm

  • Peak sensitivity wavelength : 400 nm
  • Spectral response : 185-680 nm

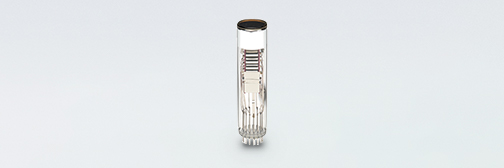

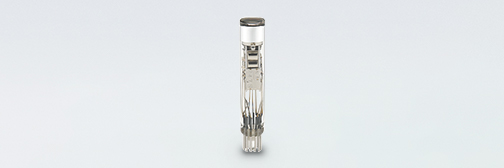

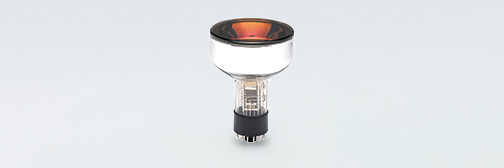

Recommended head-on photomultiplier tubes

Tube diameter φ10 mm to φ19 mm(Effective area : φ8 mm to φ15 mm)

  • Peak sensitivity wavelength : 420 nm
  • Spectral response : 300-650 nm

  • Peak sensitivity wavelength : 420 nm
  • Spectral response : 300-650 nm

  • Peak sensitivity wavelength : 420 nm
  • Spectral response : 300-650 nm

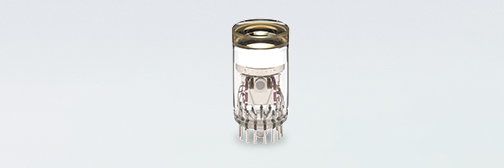

Tube diameter φ25 mm to φ34 mm(Effective area : φ22 mm to φ34 mm)

  • Peak sensitivity wavelength : 420 nm
  • Spectral response : 300-650 nm

  • Peak sensitivity wavelength : 420 nm
  • Spectral response : 300-650 nm

  • Peak sensitivity wavelength : 420 nm
  • Spectral response : 300-650 nm

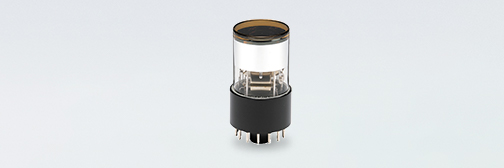

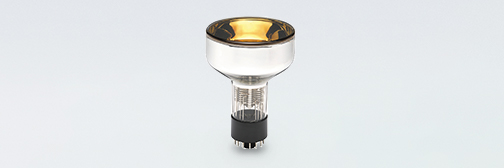

Tube diameter φ52 mm to φ127 mm(Effective area : φ46 mm to φ111 mm)

  • Peak sensitivity wavelength : 420 nm
  • Spectral response : 300-650 nm

  • Peak sensitivity wavelength : 420 nm
  • Spectral response : 300-650 nm

  • Peak sensitivity wavelength : 420 nm
  • Spectral response : 300-650 nm

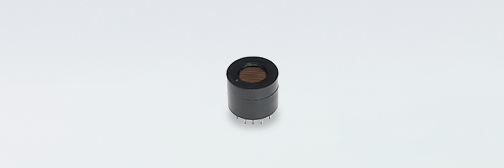

Metal package type

  • Effective area : φ8 mm min.
  • Peak sensitivity wavelength : 400 nm
  • Spectral response : 230-700 nm

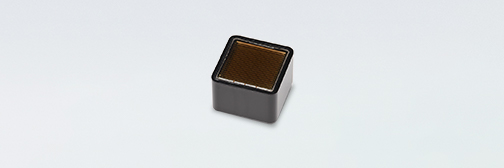

  • Effective area : 23 mm x 23 mm min.
  • Peak sensitivity wavelength : 400 nm
  • Spectral response : 300-650 nm

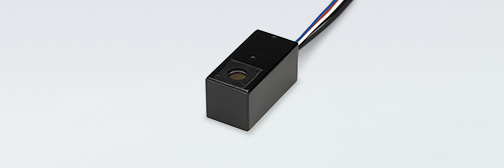

Recommended photomultiplier tube modules

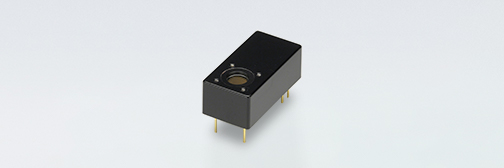

Current output PMT modules

  • Spectral response : 300-700 nm
  • +5 V input voltage
  • Settling time 10 s

  • Spectral response : 230-700 nm
  • Settling time 2s
  • Gate function

  • Spectral response : 300-650 nm
  • +5 V input voltage
  • Settling time 10 s

  • Spectral response : 300-650 nm
  • Rise time : 350 ps
  • Settling time 10 s

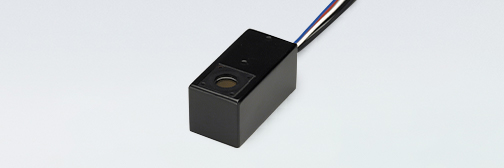

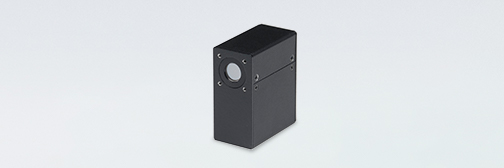

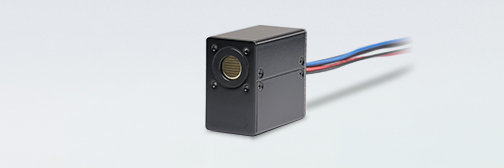

Built-in photon counting circuit

  • Spectral response : 230-700 nm
  • +5 V input voltage

  • Spectral response : 230-700 nm
  • +5 V input voltage
  • USB2.0 compatible

Visible (VIS) to near-infrared (NIR) region

This region of the spectrum includes light wavelengths from 350 nm to 800 nm that can be seen by the human eye. We provide a line-up of standard photomultiplier tubes having a wide range of spectral response from the visible to near-infrared region.

Topics


GaAsP (gallium arsenide phosphide) photocathode

This is a crystalline photocathode activated with cesium. It has high quantum efficiency in the visible region. Compared to other photocathodes comprised mainly of alkali metals, this photocathode is likely to deteriorate when exposed to intense light and so requires careful handling.

Recommended photocathodes


•Multialkali photocathode
•GaAsP (gallium arsenide phosphide) photocathode
•GaAs (gallium arsenide) photocathode

Applications


•Flow cytometer
•Specimen testing device
•Spectrophotometer
•NOx meter
•Laser microscope

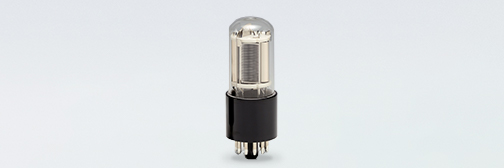

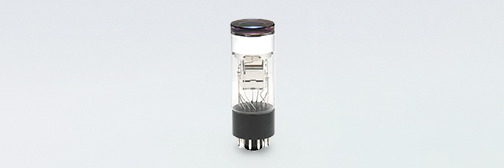

Recommended side-on photomultiplier tubes

Effective area : 8 mm x 24 mm

  • Peak sensitivity wavelength : 400 nm
  • Spectral response : 185-900 nm

  • Peak sensitivity wavelength : 450 nm
  • Spectral response : 185-900 nm

  • Peak sensitivity wavelength : 450 nm
  • Spectral response : 185-900 nm

  • Peak sensitivity wavelength : 400 nm
  • Spectral response : 185-980 nm

Effective area : 4 mm x 13 mm

  • Peak sensitivity wavelength : 450 nm
  • Spectral response : 185-900 nm

  • Peak sensitivity wavelength : 450 nm
  • Spectral response : 185-900 nm

  • Peak sensitivity wavelength : 480 nm
  • Spectral response : 185-900 nm

Recommended head-on photomultiplier tubes

Tube diameter φ13 mm to φ15 mm (Effective area : φ10 mm to φ15 mm)

  • Peak sensitivity wavelength : 420 nm
  • Spectral response : 185-850 nm

  • Peak sensitivity wavelength : 420 nm
  • Spectral response : 300-850 nm

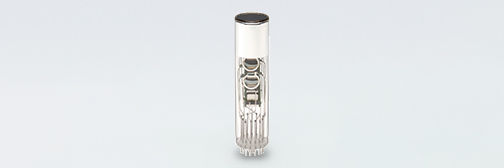

Tube diameter φ25 mm to φ34 mm (Effective area : φ22 mm to φ34 mm)

  • Peak sensitivity wavelength : 420 nm
  • Spectral response : 300-850 nm

  • Peak sensitivity wavelength : 420 nm
  • Spectral response : 185-850 nm

  • Peak sensitivity wavelength : 600 nm
  • Spectral response : 300-900 nm

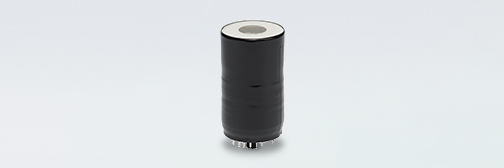

Tube diameter φ52 mm to φ127 mm (Effective area : φ46 mm to φ111 mm)

  • Peak sensitivity wavelength : 420 nm
  • Spectral response : 300-850 nm

  • Peak sensitivity wavelength : 300-800 nm
  • Spectral response : 160-930 nm

  • Peak sensitivity wavelength : 420 nm
  • Spectral response : 300-850 nm

Metal package type

  • Effective area : φ8 mm min.
  • Peak sensitivity wavelength : 400 nm
  • Spectral response : 230-870 nm

  • Effective area : 23 mm x 23 mm min.
  • Peak sensitivity wavelength : 530 nm
  • Spectral response : 300-920 nm

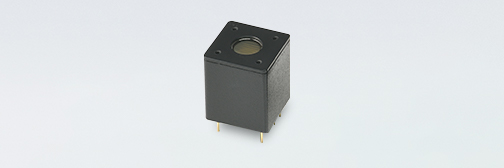

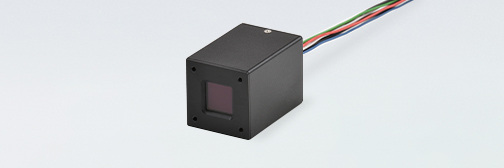

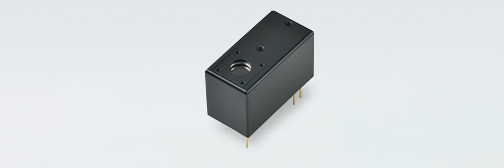

Recommended photomultiplier tube modules

Current output PMT modules

  • Spectral response : 230-920 nm
  • Settling time 2 s
  • Gate function

  • Spectral response : 300-740 nm
  • Settling time 10 s
  • Gate function

  • Spectral response : 300-870 nm
  • +5 V input voltage
  • Settling time 10 s

  • Spectral response : 300-870 nm
  • +15 V input voltage
  • Settling time 0.2 s

Voltage output PMT modules

  • Spectral response : 300-740 nm
  • +5 V input voltage
  • Settling time 10 s

Built-in photon counting circuit

  • Spectral response : 230-870 nm
  • +5 V input voltage

  • Spectral response : 230-870 nm
  • +5 V input voltage
  • USB2.0 compatible

Near-infrared (NIR) region

Near-infrared light has features including low energy and high permeability making it ideal for a wide range of tasks in our daily lives such as remote control of various appliances and devices. Photomultiplier tubes with high sensitivity to near-infrared (NIR) light are used for special applications such as long-distance photometry and other custom tasks.

Topics


InGaAs (indium gallium arsenide) photocathode

The InGaAs photocathode is a crystalline photocathode the same as GaAsP. However, unlike the GaAsP photocathode with its high sensitivity to visible light, the InGaAs photocathode can detect near-infrared light from 950 to 1700 nm. Compared to other photocathodes comprised mainly of alkali metals, the InGaAs photocathode is likely to deteriorate when exposed to intense light so requires careful handling. This photocathode also has high dark current and must be cooled during operation.

Recommended photocathodes


•InGaAs (indium gallium arsenide) photocathode
•InP/InGaAsP (indium phosphide/indium gallium arsenide phosphide) photocathode

Applications


•Spectrophotometer
•LIDAR (light detection and ranging)
•CL (chemiluminescence) measurement
•PL (photoluminescence) measurement

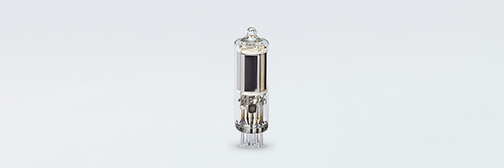

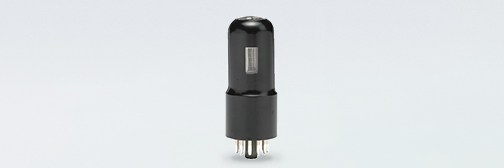

Recommended side-on photomultiplier tubes

Effective area : 8 mm x 24 mm

  • Effective area : 3 mm x 12 mm
  • Peak sensitivity wavelength : 400 nm
  • Spectral response : 185-1010 nm

  • Effective area : 3 mm x 12 mm
  • Peak sensitivity wavelength : 300-800 nm
  • Spectral response : 185-930 nm

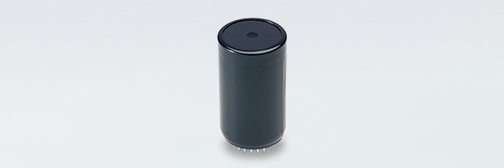

Recommended head-on photomultiplier tubes

Tube diameter φ52 mm (Effective area : 3 mm x 8 mm)

  • Peak sensitivity wavelength : 1300 nm
  • Spectral response : 300-1400 nm

  • Peak sensitivity wavelength : 1500 nm
  • Spectral response : 300-1700 nm
