高速読み出し 100 kline/s max.

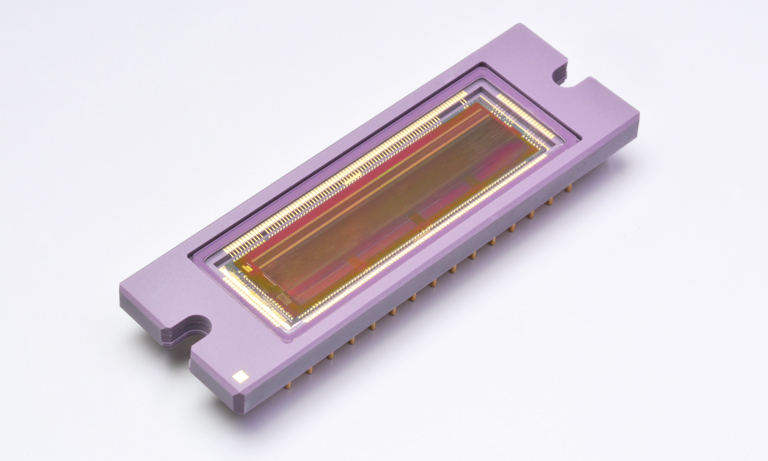

産業用カメラ向けCMOSリニアイメージセンサ S13774
S13774は、高速スキャンを必要とする産業用カメラの用途に開発されたCMOSリニアイメージセンサです。画素ごとに読み出しアンプとA/D変換器を搭載した列並列読出し方式を採用しているため、高速読み出しが可能です。A/D変換器の分解能は、10-bit (高速モード: 100 klines/s max.)と12-bit (低速モード: 25 klines/s max.)から選択できます。映像データは180 MHzのLVDS方式で、シリアル出力されます。
仕様
| 仕様 | 単位 | |
|---|---|---|
| 画素数 | 4096 | 画素 |
| 画素サイズ (H × V) | 7 × 7 | μm |
| 有効受光面長 | 28.672 | mm |
| 感度波長範囲 | 400 ～ 1000 | nm |
| ラインレート max. (高速モード) |
100 | kline/s |
