スーパーコンティニューム光源
SuperK CHROMATUNE
特長
- 400 nm 〜 1000 nmで波長可変
- 安定した出力パワー
繰り返し周波数変更可能
- アライメント不要・メンテナンスフリー
- ソフトウェア開発キット (SDK)付属
- プラグ＆プレイ対応アクセサリ
製品詳細
柔軟で使いやすい光源
SuperK CHROMATUNEは、400 nm 〜 1000 nmの広い波長調整範囲と、安定した1 mW出力により、あらゆる波長のニーズに応えます。
産業用途における信頼性
SuperK CHROMATUNEはファイバレーザであり、高い信頼性と長寿命を実現しています。メンテナンスフリーで、アライメントも必要ありません。信頼性の高い産業用レーザプラットフォームをベースとしており、長時間の連続稼働を実現し、必要な光を安定して供給します。
用途
・顕微鏡
・分光分析
・蛍光分析
・寿命イメージング
・プラズモニクス＆メタマテリアル
・光デバイスの特性評価
ニーズに合わせて拡張可能なレーザ
SuperK CHROMATUNEは、非常に使いやすいよう設計されています。アドバンストモードに切り替えることで、レーザの線幅を変更したり、異なる波長範囲で出力を増加させたり、波長掃引を自動化させたりといった、さまざまな機能を利用できます。標準仕様では、レーザは準連続発振 (quasi-CW)のMHzの繰り返し周波数で動作しますが、寿命現象などの研究用途に応じてこの設定も変更可能です。周波数を変更できるパルスピッカー内蔵タイプもございます。
すべての操作は、直感的な簡単操作のソフトウェアインターフェースで行えますが、より高度な制御や統合が必要な場合には、無償提供のSDKをご利用いただけます。
仕様
光学的特性
| 波長範囲 | 400 nm 〜 1000 nm |
|---|---|
| ライン当たりの出力*1 | > 1 mW |
| 出力安定性RMS | ± 1 % |
| 繰り返し周波数、固定 | 78 MHz |
| 繰り返し周波数、可変 | 0.15 MHz ～ 78 MHz |
| 最小帯域幅*2 | 5 nm ～ 10 nm |
| 最大帯域幅 | 50 nm |
| 帯域外抑制*3 | > 40 dB |
| 波長分解能 | 1.5 nm |
| 波長ステップサイズ | 0.1 nm |
| 全波長スキャン速度*4 | ～ 1秒 |
| ビーム出力 | コリメート |
| ビーム品質 | 回折限界 |
| ビーム径 @400 nm | ≈ 0.5 mm |
| ビーム径 @600 nm | ≈ 0.6 mm |
| ビーム径 @800 nm | ≈ 0.8 mm |
| ビーム径 @1000 nm | ≈ 0.9 mm |
| ビーム広がり角 | < 1.5 mrad |
| レーザクラス | 3B |
*1 10 nm帯域幅、中心波長405 nm 〜 995 nmの範囲で規定。
*2 帯域幅は波長に応じて増加。
*3 中心波長±20 nmの範囲で測定。
*4 レーザがスペクトルの一端からもう一端へ発振波長を切り替えるのに必要な時間。
機械的特性
| 冷却方式 | 空冷 |
|---|---|
| 動作温度 | +18 ℃ ～ +30 ℃ |
| 保存温度 | -10 ℃ ～ +55 ℃ |
| 寸法 (W × H × L) | 440 mm × 251 mm × 400 mm |
| 質量 | 26 kg （パルスピッカー搭載時 27.5 kg） |
電気的特性
| インターフェース | USB 2.0 / RS-232 / イーサネット |
|---|---|
| 動作電圧 | 100 VAC ～ 240 VAC 50 Hz / 60 Hz |
| 消費電力 | < 200 W |
| インターロックコネクタ | 2ピン LEMO |
| 同期 (トリガー)出力 | NIM、アナログパルス出力 デジタルゲート出力（可変繰返し周波数のみ） |

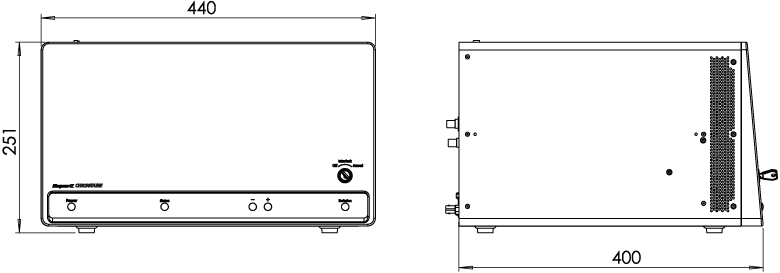

外形寸法図 (単位: mm)
