スーパーコンティニューム光源
SuperK EVOシリーズ
特長
- コストパフォーマンスに優れた産業用レーザプラットフォーム
- 高輝度かつ高い繰り返し周波数
- 堅牢かつコンパクトな産業用設計
- 無償のソフトウェア開発キット
- メンテナンスフリーで24時間365日の連続稼働可能
製品詳細
広帯域スペクトルと高輝度を同時に実現
SuperK EVOは、415 nm ～ 2250 nmの範囲で高輝度の白色光を提供します。光はファイバ伝送され、極めて高いビーム品質を誇り、そのまま使用できるだけでなく、用途に合わせてフィルタリングやビーム整形を行うことも可能です。

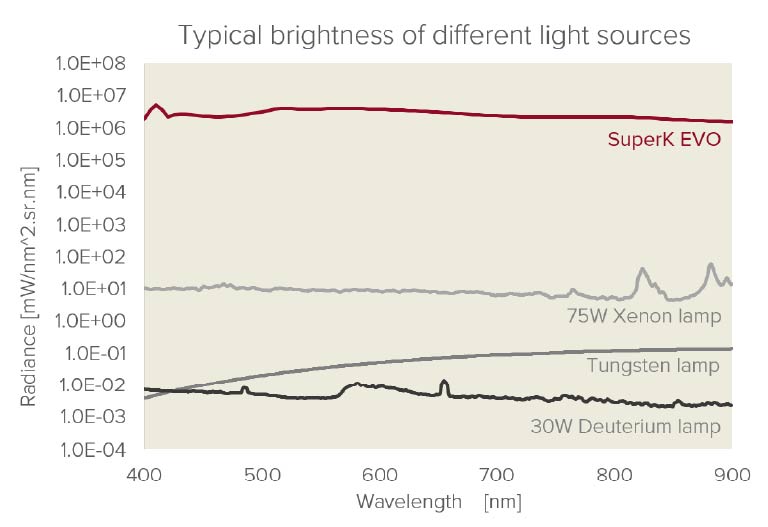

SuperK EVOの出力スペクトルはランプに似ていますが、輝度はランプの100倍にも達します。最大78 MHzの標準繰り返し周波数と最大2 Wの出力を組み合わせることで、SuperK EVOシリーズは高速性とスループットの最適化を実現しています。
光デバイスの特性評価、選別、試験・計測、さらには蛍光寿命イメージング顕微鏡 (FLIM)などのバイオイメージング用途にご利用いただけます。
出力トリガーが搭載されており、装置を完全に同期させることが可能です。
メンテナンスフリー運用
SuperK EVOは、フォトニック結晶ファイバ (PCF)技術に基づく信頼性の高い構造によって、安定した連続稼働とメンテナンスフリーの運用に対応しています。
産業用途を想定したSuperK EVOは、堅牢かつコンパクトな設計により、取り付けや取り扱いが容易です。信頼性、品質、性能は、DIN ISO 9000認証プロセスによって保証されています。
仕様
光学的特性
| EVO ERL-04 | EVO EUL-10 | EVO HP EU-4 | |
| 繰り返し周波数 | 20 MHz | 30 MHz | 20 MHz |
| 波長範囲 | 510 nm ～ 2000 nm | 425 nm ～ 2250 nm | 415 nm ～ 2250 nm |
| 総出力 | ≈ 1 W | ≈ 0.6 W | ≈ 2 W |
| 可視光出力 (350 nm ～ 850 nm) | > 40 mW | > 60 mW | ≈ 400 mW |
| 総出力安定性、RMS | ± 1 % | ||
| カットイン波長*1 | 510 nm | 425 nm | 415 nm |
| 偏光 | ランダム | ||
| モードフィールド径、FC/APC | ≈ 3 μm | - | |
| ビーム径 (コリメート光) @532 nm | ≈ 1 mm | ||
| ビーム径 (コリメート光) @1100 nm | ≈ 2 mm | ||
| ビーム径 (コリメート光) @2000 nm | ≈ 3 mm | ||
| レーザ出力 | ガウシアン、シングルモード | ||
| 出射方式 | コリメート出力 または FC/APC | コリメート出力 | |
*1 スペクトルパワー密度 > 0.1 mW/nm
機械的特性
| EVO ERL-04 | EVO EUL-10 | EVO HP EU-4 | |
| システム冷却方式 | パッシブ*1 | 空冷*2または水冷 | |
| 動作温度 | +18 ℃ ～ +35 ℃ | ||
| 保存温度 | +10 ℃ ～ +60 ℃ | ||
| 寸法 (W × H × L) / パッシブ | 200 mm × 90 mm × 325 mm | - | |
| 寸法 (W × H × L) / 水冷 | - | 200 mm × 93 mm × 325 mm | |
| 寸法 (W × H × L) / 空冷 | - | 200 mm × 166.5 mm × 325 mm | |
| 質量 | 6 kg | 12 kg | |
*1 ベースプレートからの放熱。
*2 最小風量80 m³/時の内部ファンが必要です。
電気的特性
| EVO ERL-04 | EVO EUL-10 | EVO HP EU-4 | |
| コンピュータインターフェース | USB 2.0 / RS-232 / イーサネット | ||
| 動作消費電力 | 24 VDC | ||
| 消費電力*1 | < 30 W | ||
| インターロックコネクタ*2 | 2ピン LEMO | ||
| 外部バスインターフェース | 15 D-Sub | ||
| 同期（トリガー）出力 | NIM | ||
| 出力ファイバ長 | 1.5 m | ||
*1 消費電力は総出力に依存。
*2 SuperK EVO はクラス 4 レーザであり、ドアインターロックまたは安全回路への接続が必須です。
スペクトル例
SuperK EVO
SuperK EVO HP
外形寸法図 (単位: mm)

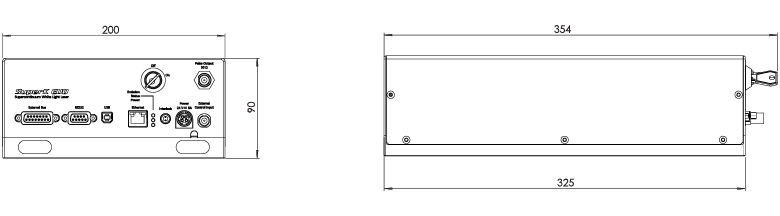

パッシブ

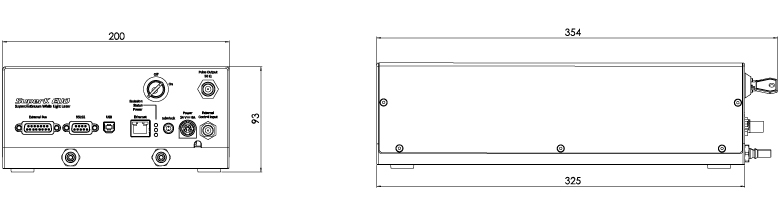

水冷

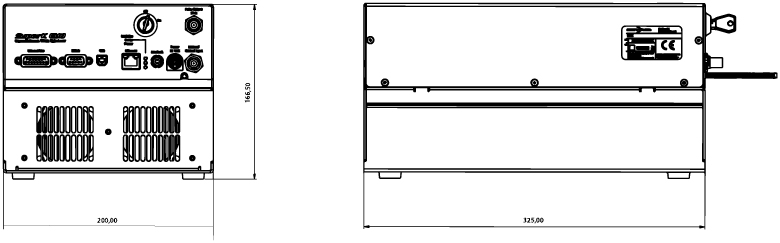

空冷
